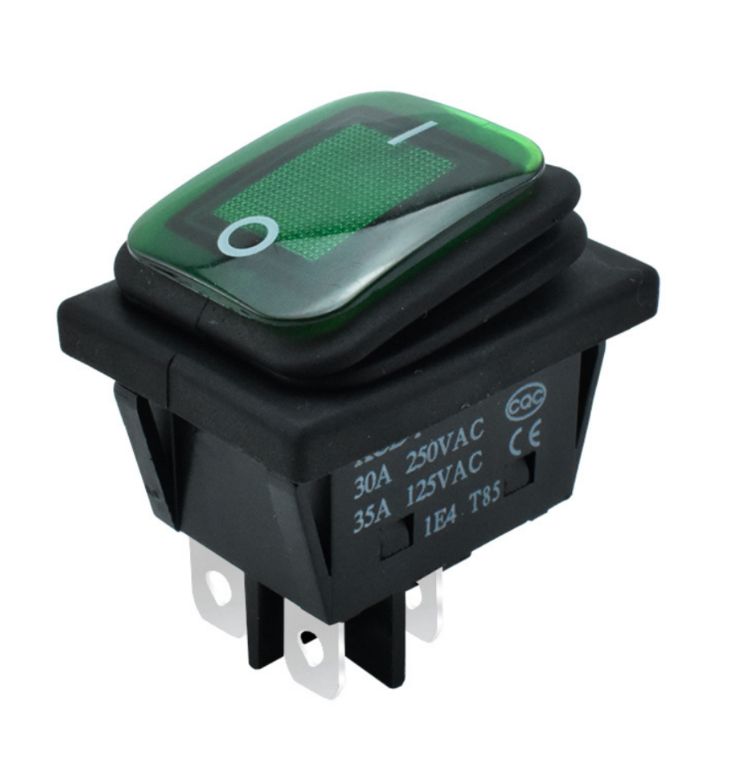

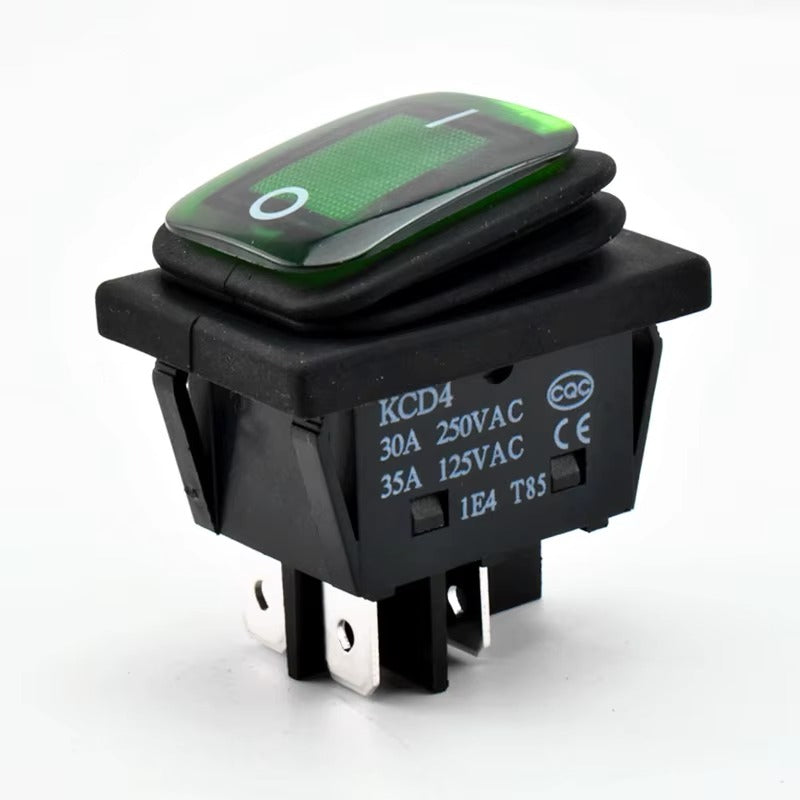

Heavy Duty Waterproof Seal Rocker Switch ON/OFF DPST KCD4 Green
The waterproof seal rocker switch KCD4 is a heavy-duty ON/OFF switch designed for demanding environments such as marine, automotive, and industrial applications. Built with a DPST 4-pin configuration, it safely controls high-current circuits up to 30A at 250V AC, ensuring reliable performance under load.
Featuring an IP67 sealed waterproof design, this rocker switch resists water, dust, and moisture, making it ideal for boats, outdoor equipment, and control panels exposed to harsh conditions. The integrated LED indicator provides clear visual status at both 12V and 220V, improving safety and usability.
Manufactured with high-temperature resistant materials (T85 rated), the KCD4 rocker switch delivers durability, long service life, and stable electrical contact. Its compact rectangular mounting size allows easy panel installation, while the snap-in design ensures a secure fit without additional hardware.
Perfect for power tools, automotive dashboards, marine consoles, generators, and industrial machinery, this switch combines strength, reliability, and waterproof protection in one professional-grade component.
Key Features
-
IP67 sealed waterproof and dustproof design
-
Heavy-duty 30A / 250V AC current rating
-
4-pin DPST ON/OFF rocker switch
-
Built-in LED indicator (12V / 220V compatible)
-
High temperature resistance (T85 rated)
-
Snap-in panel mount for secure installation
-
Ideal for marine, automotive, and industrial use
Specifications
| Item | Details |
|---|---|
| Model | KCD4 Waterproof Rocker Switch |
| Brand | LaunchCatering |
| SKU | KCD4-IP67-4P (16A-30A) |
| Switch Type | Rocker Switch |
| Function | ON / OFF |
| Contact Configuration | DPST (4 Pins) |
| Rated Voltage | 250V AC |
| Rated Current | 30A |
| LED Voltage | 12V / 220V |
| Waterproof Rating | IP67 |
| Temperature Rating | T85 |

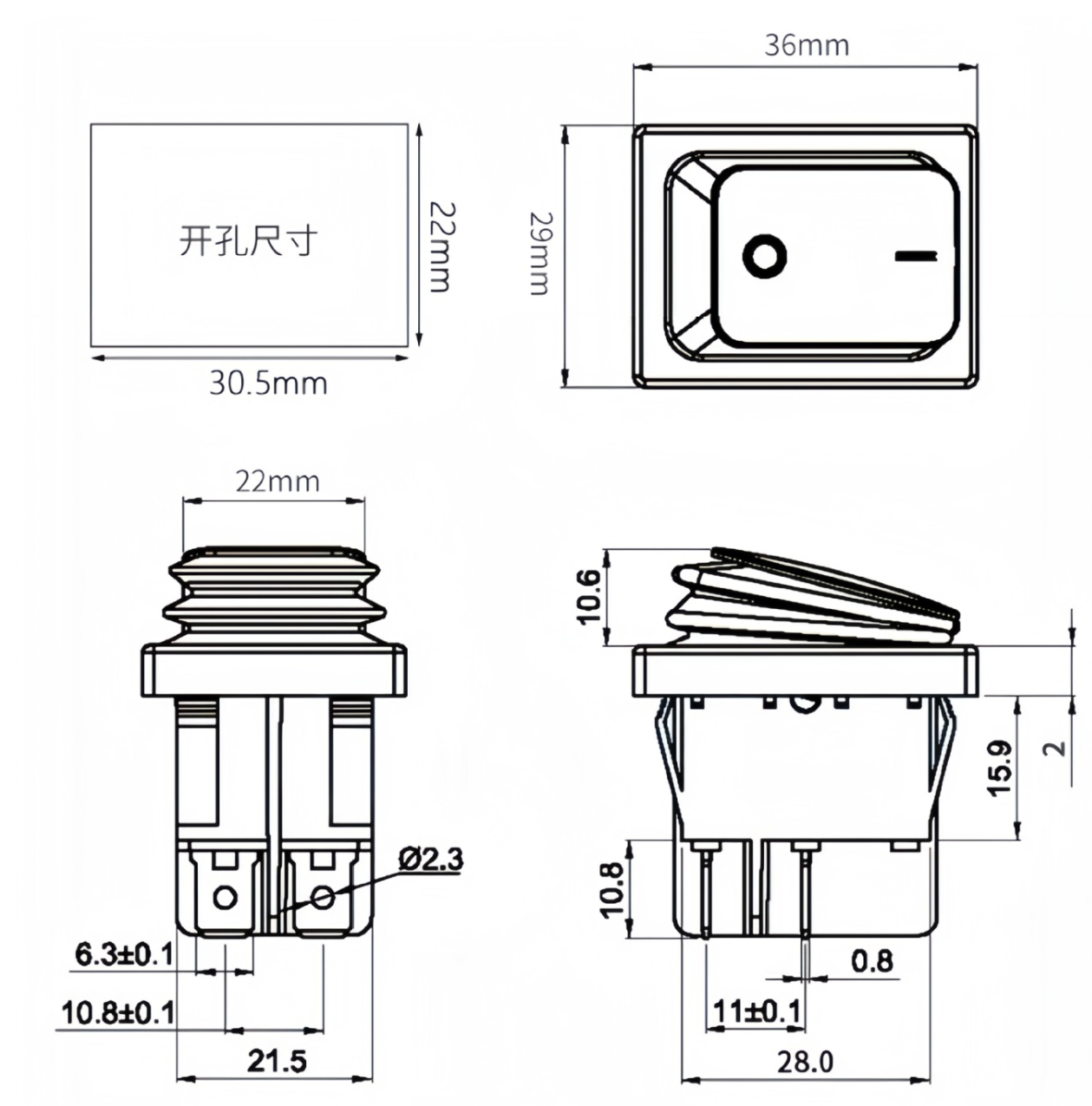

| Panel Cutout Size | 30.5 × 22 mm |
| Overall Size | 36 × 29 mm |
| Applications | Industrial Equipment( Grill, Griddle, Fryer, Oven ) |
