Product Overview

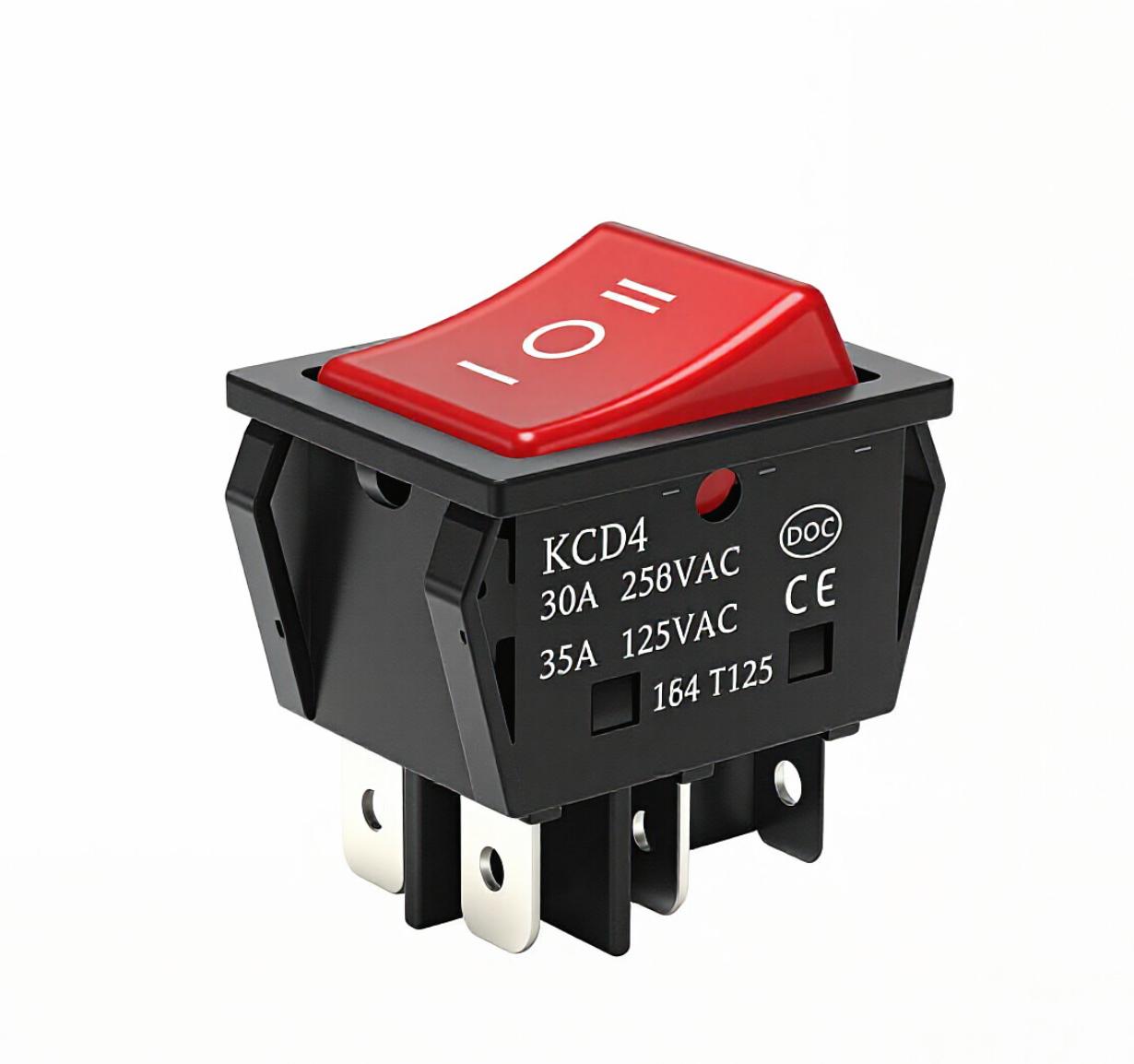

This commercial equipment rocker switch is a three-position ON / OFF / ON control switch for the control panels of commercial catering equipment. Using a DPDT (Double Pole Double Throw) 6-pin configuration with a centre-off position, it switches both poles and lets you select between two circuits, or isolate in the centre, with a single action. It is supplied with a waterproof protective cover. Fitted with the cover, the assembly is sealed to IP67, resisting water ingress, cooking steam, cleaning fluid splash and grease vapour — the everyday realities of a commercial kitchen environment.

Rated at 30A and 250V AC, this switch handles the current demands of high-draw commercial equipment including electric fryers, griddles, ovens and combination steamers without heat build-up or contact degradation. The integrated LED indicator operates at both 12V DC and 220V AC, giving clear visual status even in low-light kitchen conditions. This version has a Red LED, commonly used on control panels to indicate power, heating or fault status.

High-temperature resistant materials rated to T85 (operational from -25 C to +85 C) ensure the switch withstands the ambient heat of a busy commercial kitchen without deforming or losing contact integrity. The snap-in panel mounting system fits a standard 30.5 x 22mm cut-out and requires no additional hardware, making replacement straightforward for maintenance engineers.

Technical Specifications

The 6-pin DPDT layout gives a common pair with two switched outputs and a centre-off position, letting you route power to one of two circuits or isolate in the middle.

Compatible Equipment

This rocker switch is suitable for use as a replacement or upgrade control panel switch in commercial catering equipment including:

• Electric Fryers — single tank, twin tank and countertop models using 30A mains supply circuits
• Electric Griddles — solid and ribbed plate griddles with 250V AC panel switch positions
• Electric Grills — overhead salamander grills and contact grills with illuminated switch panels
• Convection Ovens — countertop and floor-standing models with panel-mounted controls
• Combination Steamers — combi ovens with mains panel switching
• Induction Hobs and Boiling Tops — commercial induction units with 250V AC panel controls
• Pasta Cookers — electric pasta boilers and continuous cookers
• Bain Maries and Hot Cupboards — heated service equipment with mains panel switches
• Control Panels and Electrical Enclosures — general purpose commercial kitchen control panels

This switch suits equipment from brands including Lincat, Falcon, Parry, Blue Seal, Electrolux Professional, Hobart, Rational, Garland, Vulcan and similar commercial catering equipment manufacturers where the panel cut-out matches 30.5 x 22mm and the circuit requires a 30A 6-pin ON / OFF / ON switch. Verify your existing switch pin count (6 pins), cut-out dimensions and current rating before ordering. Not sure if this fits your equipment? Contact us with your machine make, model and existing switch part number and we will confirm compatibility before you order.

Signs You Need To Replace This Part

• The switch no longer clicks positively into its selected position — feels loose, spongy or fails to latch
• Equipment fails to power on despite mains supply being confirmed at the isolator
• The LED indicator is dim, flickering or no longer illuminates when the switch is activated
• Visible burn marks, discolouration or melting around the switch body or terminals
• Switch activates but equipment only partially powers — one circuit remains dead

What Is Included

• 1 x Red 6-pin DPDT ON / OFF / ON rocker switch (30.5 x 22mm cut-out)
• 1 x waterproof protective cover

Wiring and connectors are not included.

Why LaunchCatering

Stocked in the UK and matched by specification. We lead with the exact cut-out size and current rating so you can check this switch against the one you are replacing before you order.

Compatibility is provided for cross-reference guidance only. All brand and equipment names are the property of their respective owners.
