Shaan/Shahi Tandoor Oven Pilot burner with Gas Control Valve with Knobs

Shaan & Shahi Tandoor Oven – Complete Pilot Burner & Gas Control Valve Package

This is a full replacement package for the ignition and gas control system on Shaan, Shahi, and Shaan Taftoon clay tandoor ovens. Everything you need is included — from the pilot burner assembly through to the gas control valve with knobs — making this the ideal solution for a complete ignition system overhaul. Compatible with both Natural Gas (NG) and LPG fuel types. Suitable for commercial catering kitchens and domestic tandoor users across the UK.

Compatible Tandoor Ovens

• Medium 28" Shaan Tandoori Oven
• Large 30" Shaan Tandoori Oven
• Extra Large 32" Shaan Tandoori Oven
• Standard 30" Shaan Taftoon Oven
• Large 32" Shaan Taftoon Oven
• Selected Shahi Clay Tandoor Ovens

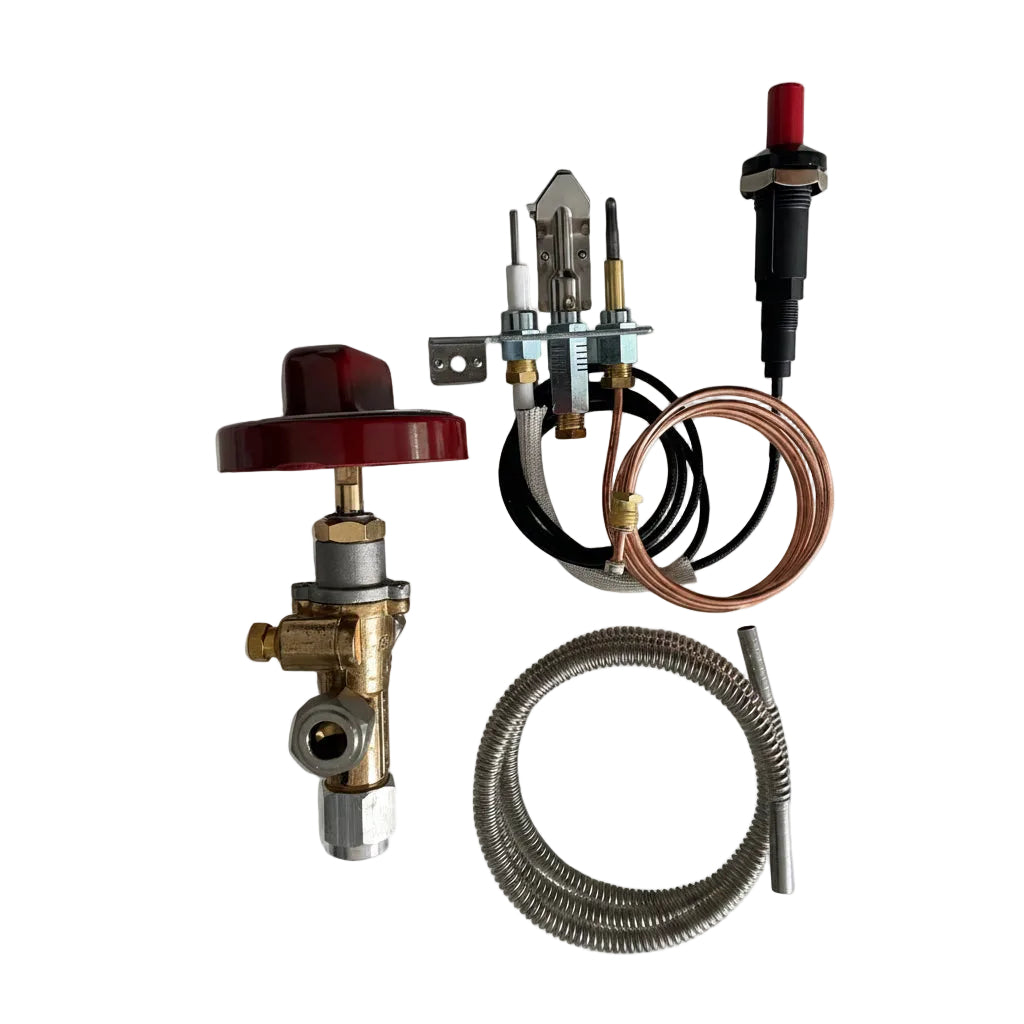

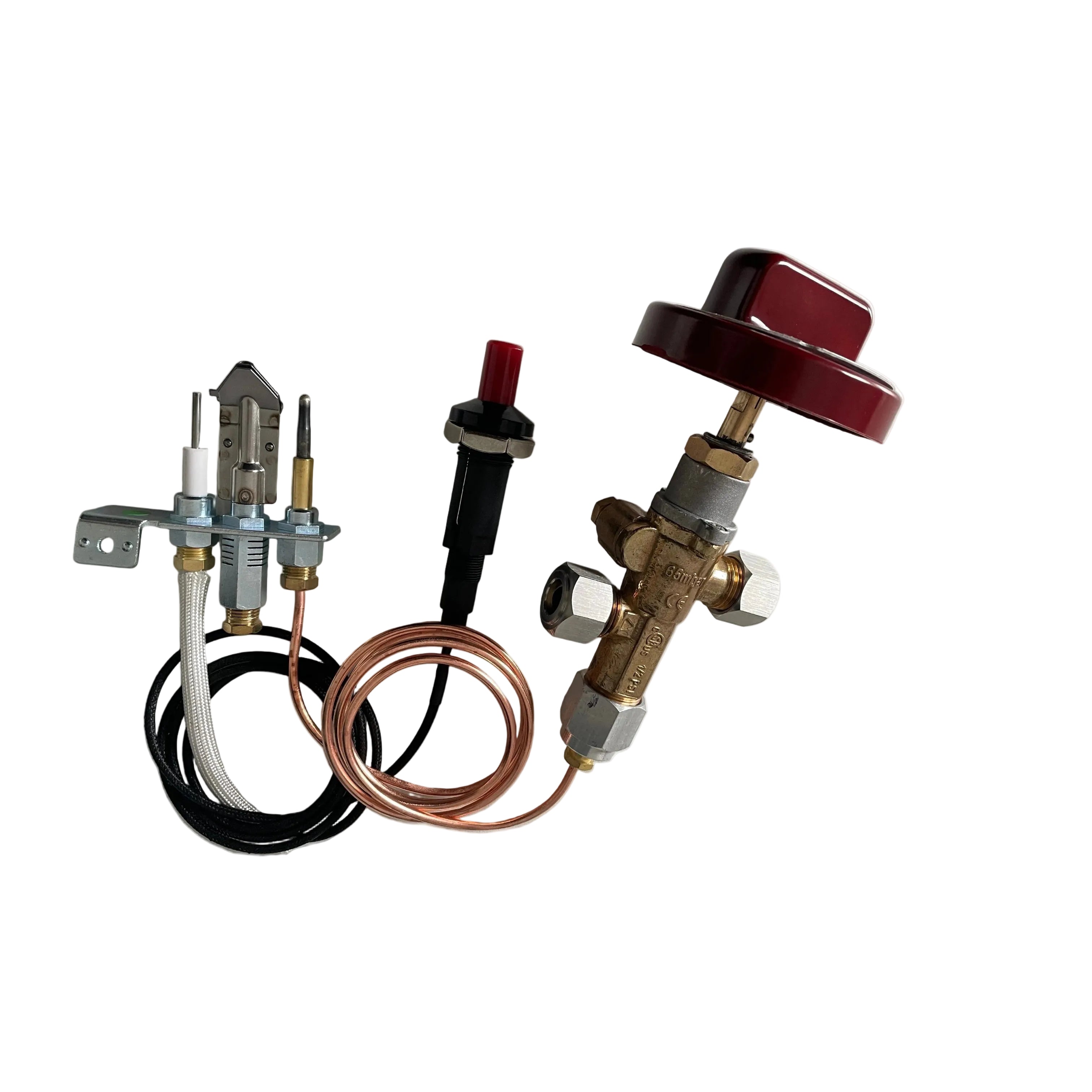

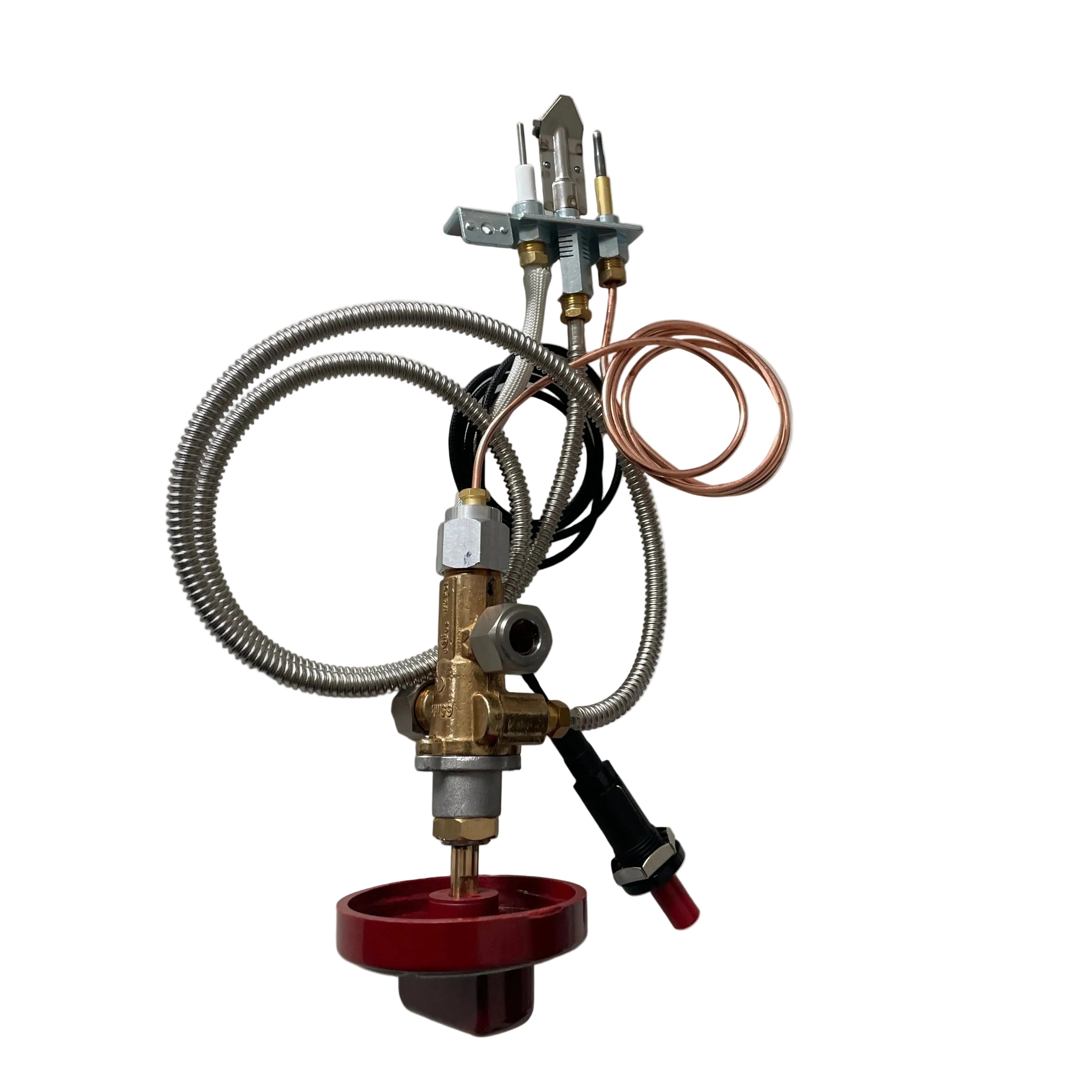

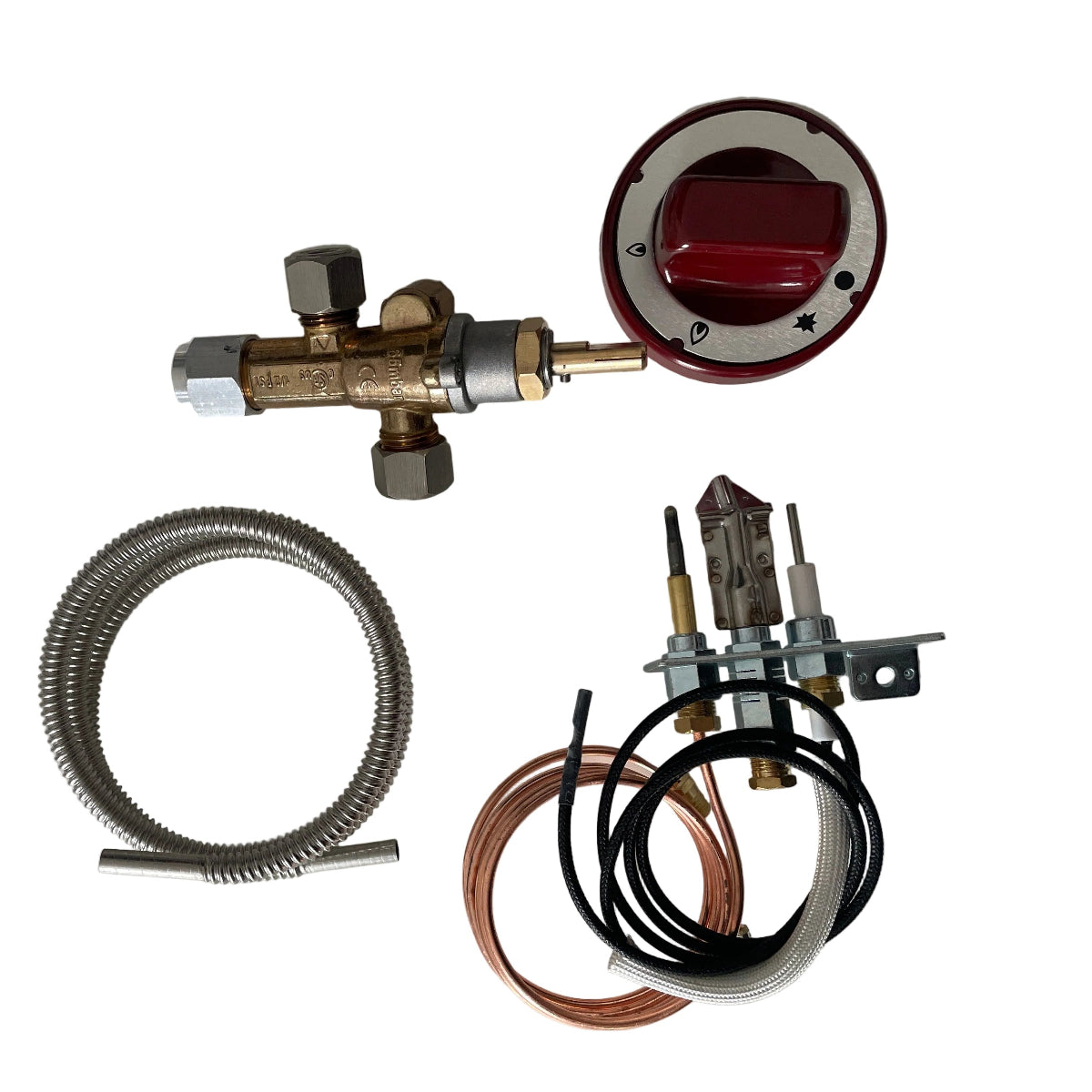

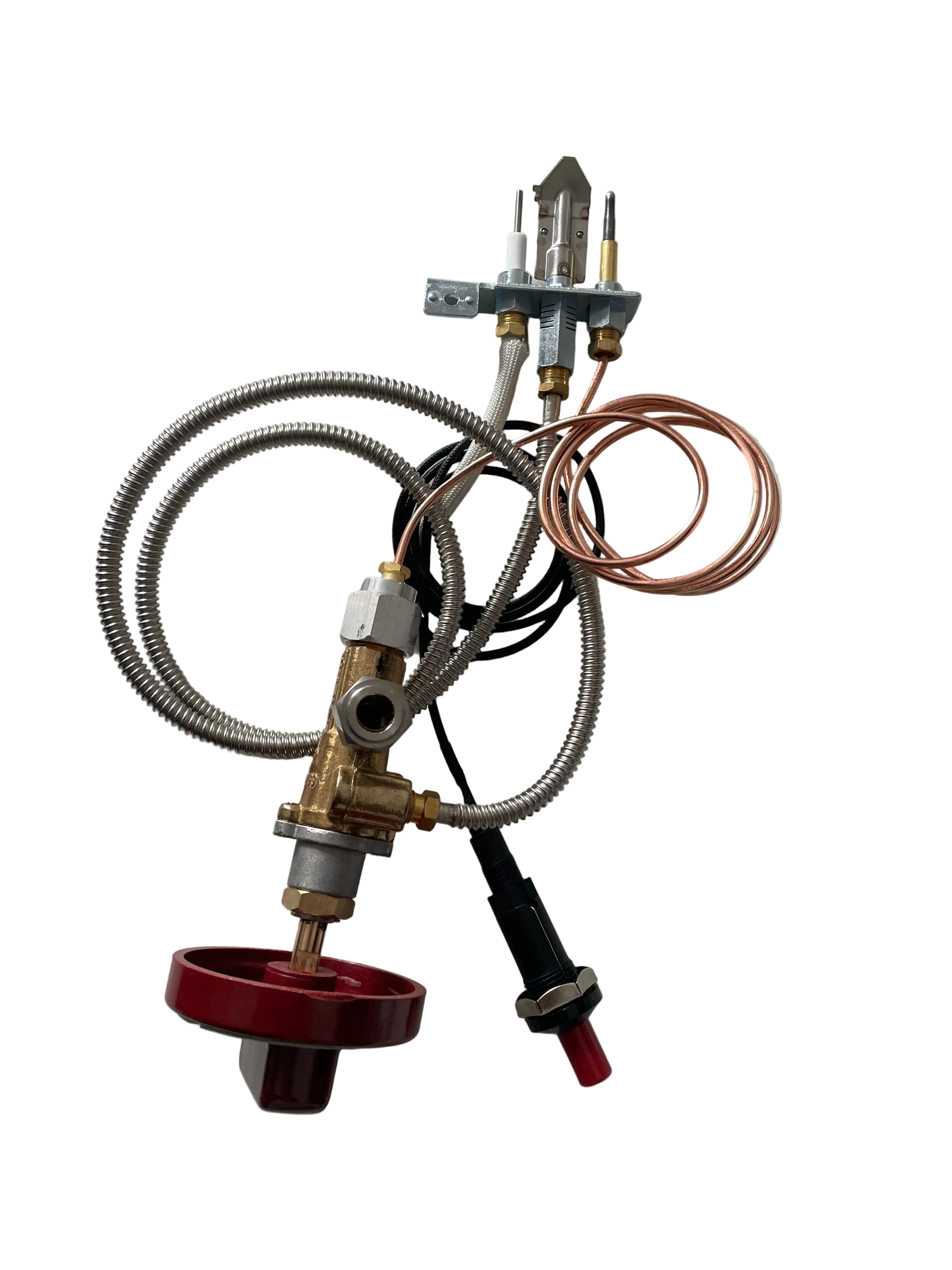

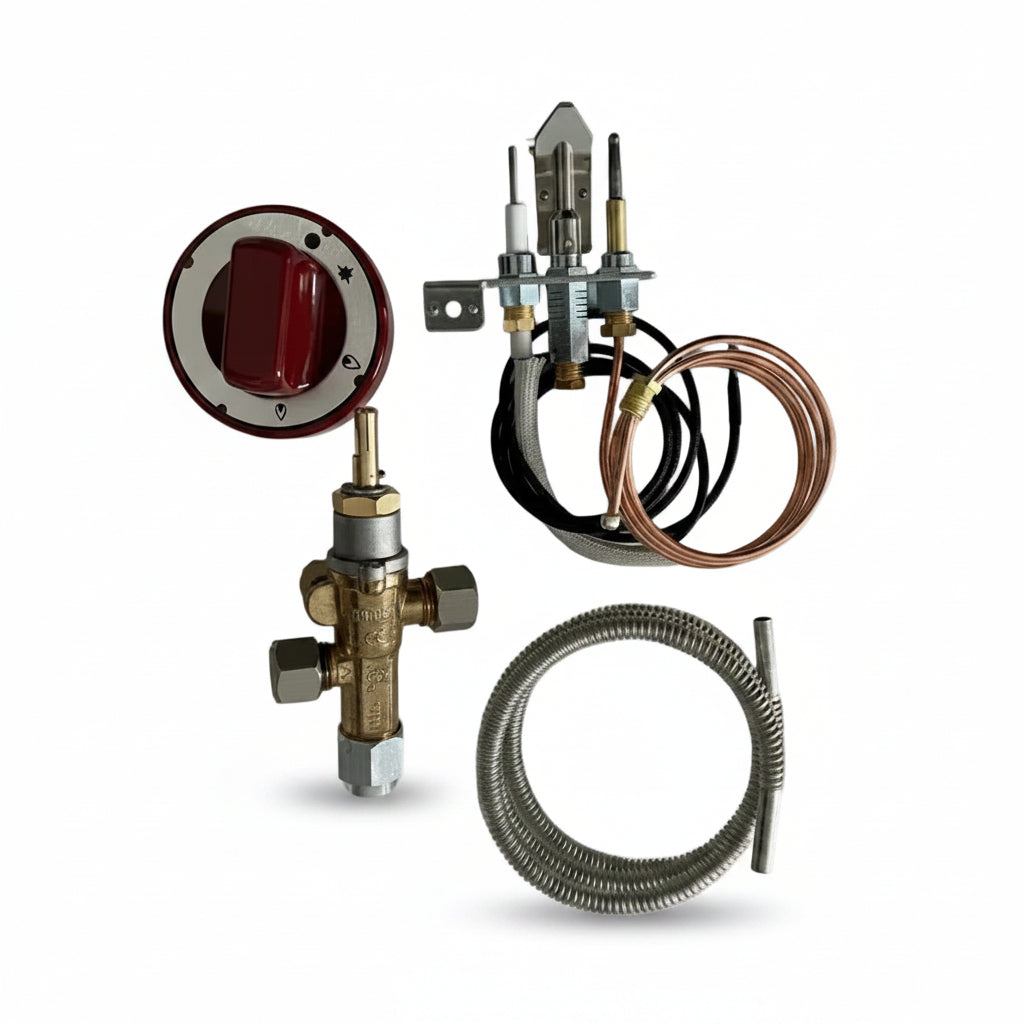

What's Included in the Full Package

Pilot Burner Assembly Kit

• Pilot Assembly – Pre-assembled unit for straightforward installation
• Electrode – Delivers a strong, consistent spark for reliable ignition
• Thermocouple (900mm) – Safety device that cuts gas supply if the pilot flame extinguishes
• Steel Gas Pipe Tube (6mm × 900mm) – Connects the pilot burner to the gas valve
• High-Heat Ignitor Lead (900mm) – Heat-resistant wiring rated for tandoor operating temperatures
• Piezo Ignitor – Push-button manual spark generator; no batteries required

Gas Control Valve with Knobs

• Gas Control Valve (W29) – Thermocouple-operated flame-failure safety valve with M9 × 1 thermocouple connection
• M16 × 1.5 gas inlet and outlet threads — suits approx. 10mm gas pipe
• 0.4mm bypass nozzle for accurate pilot flame control
• Control shaft: approx. 8 × 6.5mm, 22mm overall / 15mm exposed
• Shaft-flat position: bottom when valve is in the OFF position
• Control knobs included — ready for immediate installation

Key Specifications

• Gas Type: Natural Gas (NG) and LPG compatible
• Thermocouple Length: 900mm
• Gas Pipe: 6mm diameter, 900mm length, steel construction
• Ignitor Lead Length: 900mm, high-heat rated
• Valve Thread: M16 × 1.5 inlet/outlet; M9 × 1 thermocouple connection
• Bypass Nozzle: 0.4mm
• Installation: No specialist tools required
• Application: Commercial catering and domestic tandoor ovens
• SKU: LC-Tandoori-P5

When Do You Need This Package?

This complete package is the correct solution if your tandoor oven:

• Fails to ignite or the pilot flame won't stay lit
• Has a faulty or worn thermocouple safety shut-off
• Requires a full gas control valve replacement
• Needs a complete ignition system overhaul

Trusted by commercial kitchen engineers and catering equipment repair specialists across the UK.
