Product Overview

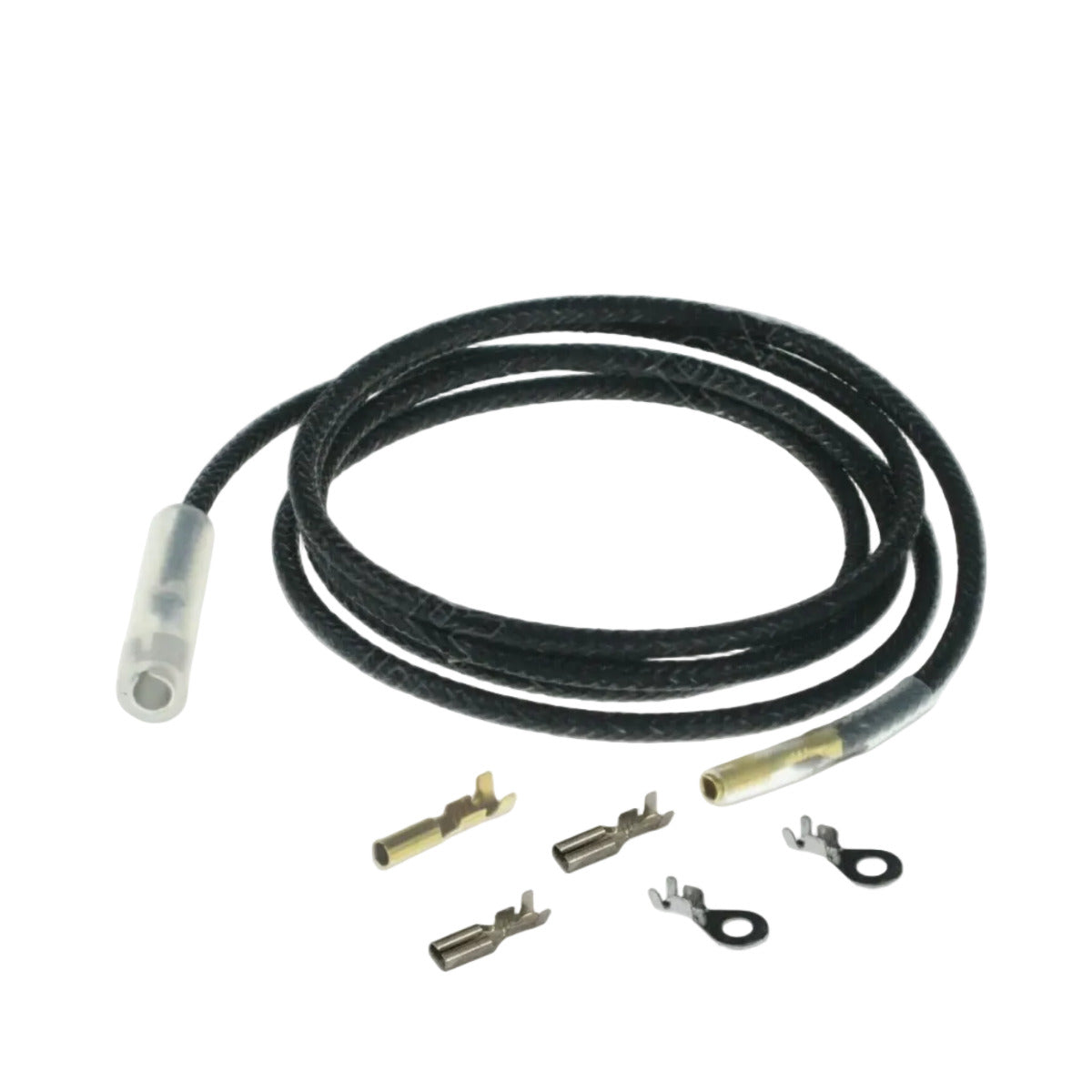

This universal HT lead spark ignition cable kit is designed to provide maximum connection flexibility for engineers servicing commercial gas catering equipment. The kit consists of a 1000mm high-tension lead pre-fitted with a 2.4mm female bullet connector at one end and a 4mm female bullet connector at the other. Additionally, the kit includes two 2.8mm flat blade spade connectors and two M4 eyelet connectors, allowing the lead to be reconfigured on-site to suit virtually any combination of igniter and electrode terminal types. This makes it particularly valuable as a universal service spare for engineers working across multiple equipment brands and models.

Technical Specifications

• Type: Universal HT spark ignition cable kit
• Cable Length: 1000mm (1 metre)
• Pre-Fitted Connector End 1: 2.4mm female bullet
• Pre-Fitted Connector End 2: 4mm female bullet
• Included Adapters: 2 x 2.8mm flat blade spade connectors, 2 x M4 ring eyelet connectors
• Voltage Rating: High-tension (HT)
• Insulation: High-temperature durable insulation
• Installation: Configurable, installer-selectable connections
• Condition: New

Compatible Equipment

This universal kit covers virtually all common commercial gas catering equipment ignition terminal combinations, including:

• SIT — Pilot burner assemblies across all connector types
• Falcon — Gas ovens, ranges and grills with any standard HT connection
• Lincat — Gas equipment including SLR, OG and LGF series
• Blue Seal — All gas models with standard ignition terminal types
• Henny Penny — Gas fryers and cooking equipment ignition systems
• Hobart — Gas equipment across model range
• Any commercial gas appliance using 2.4mm bullet, 4mm bullet, 2.8mm spade or M4 ring ignition connections

Not sure if this fits your equipment? Contact us with your machine make, model and part number and we will confirm compatibility before you order.

Signs You Need To Replace This Part

• No spark at electrode despite igniter or module operating
• Intermittent spark due to a broken HT wire within the insulation
• Existing lead insulation is cracked, melted or heat-damaged
• Terminal connections are corroded, loose or the wrong type for the installation
