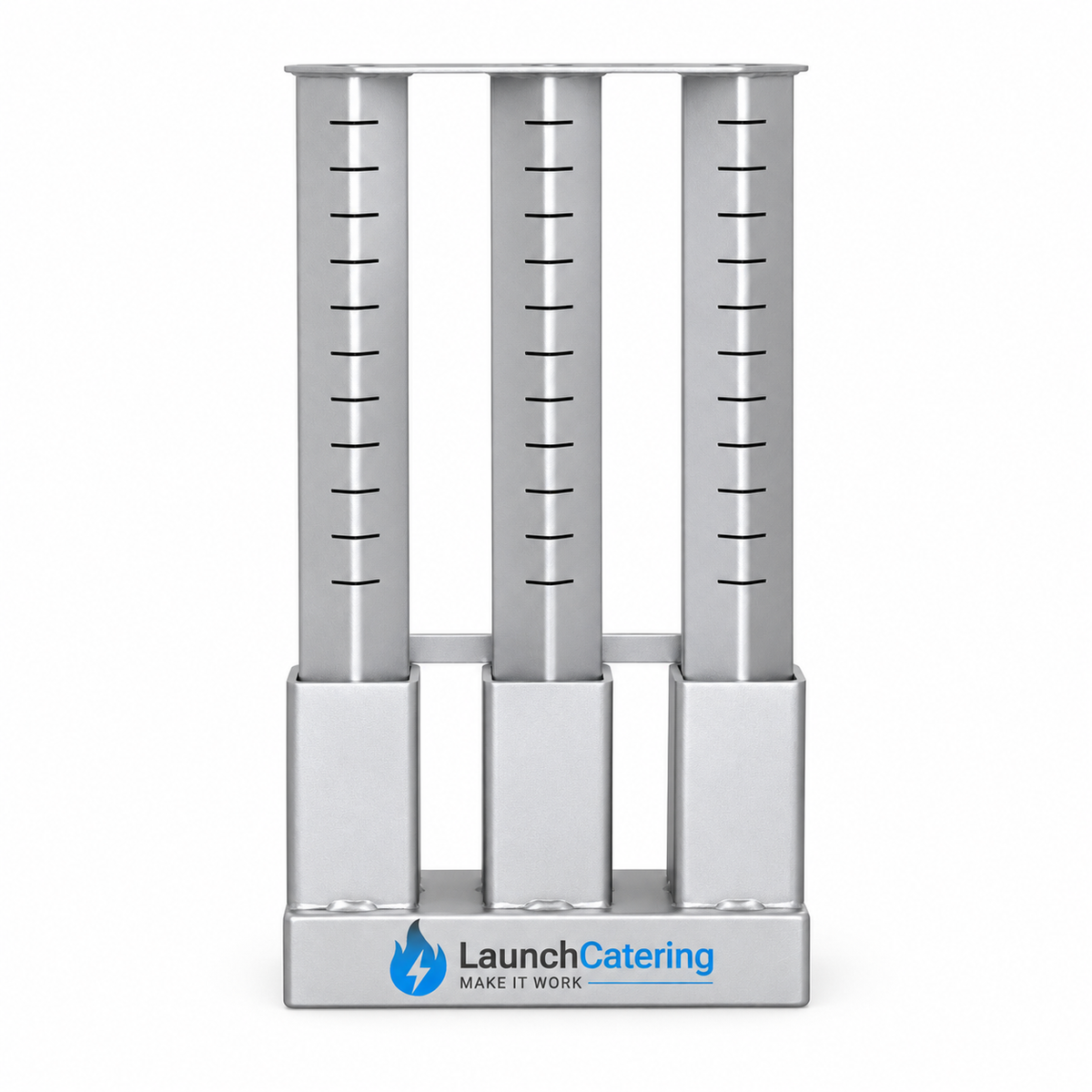

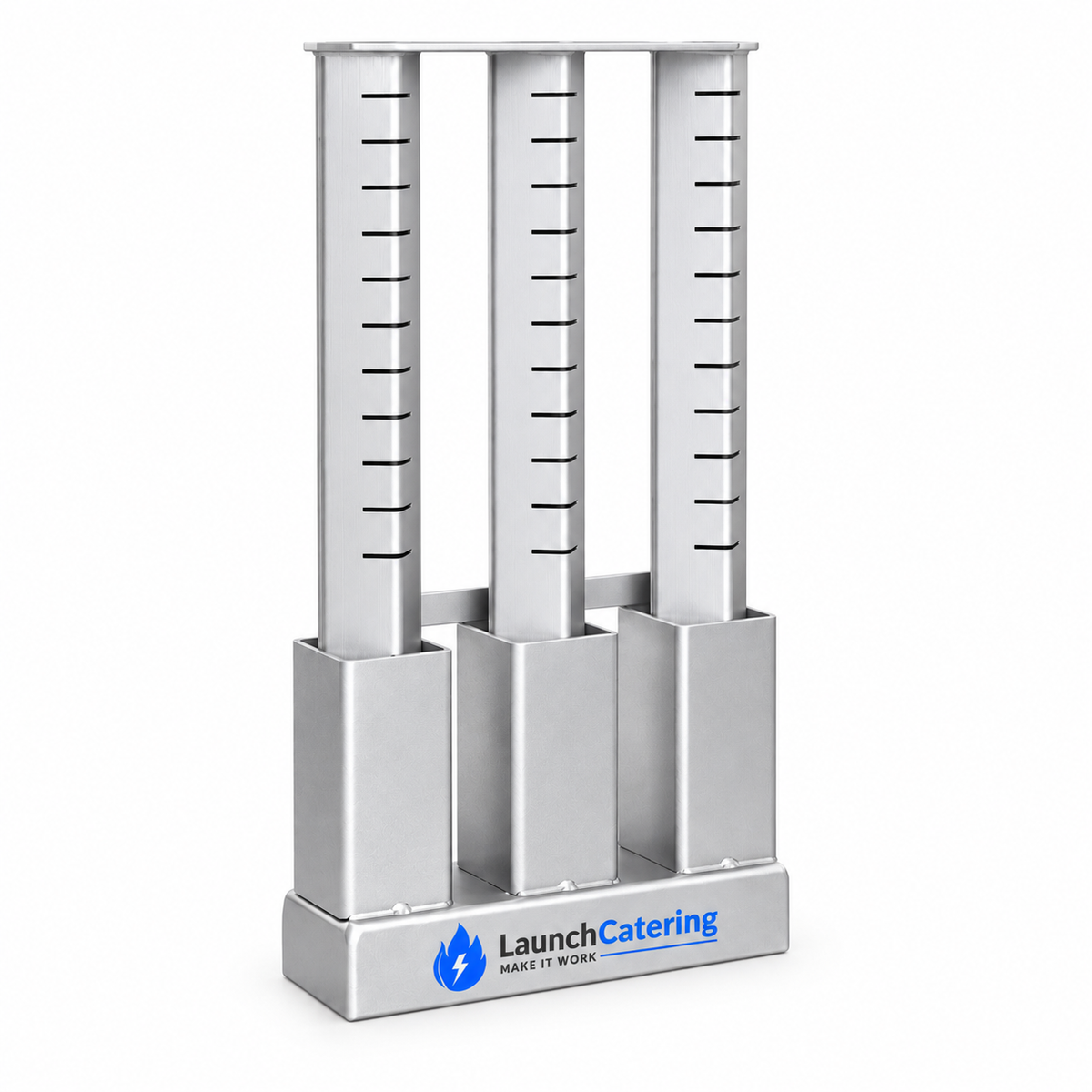

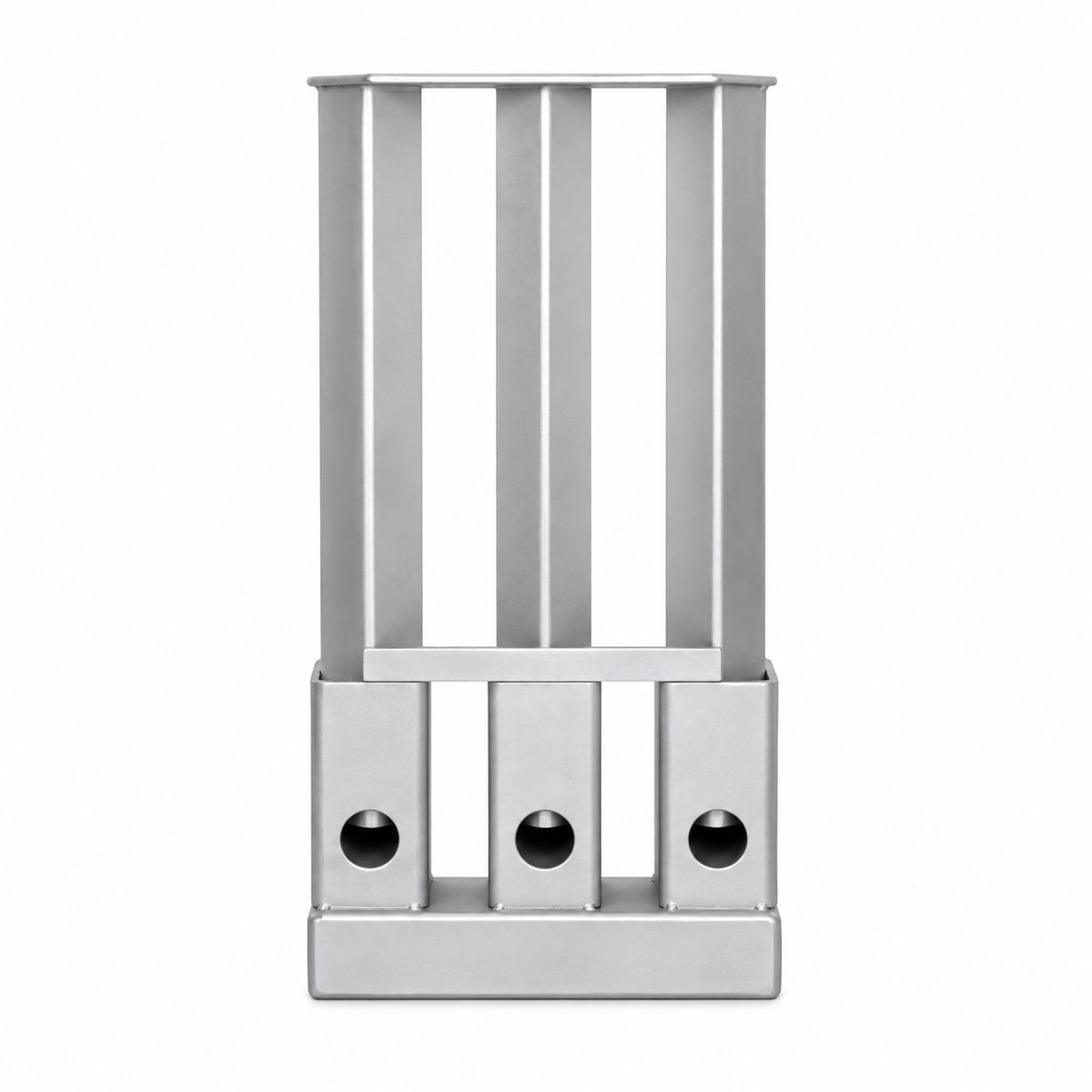

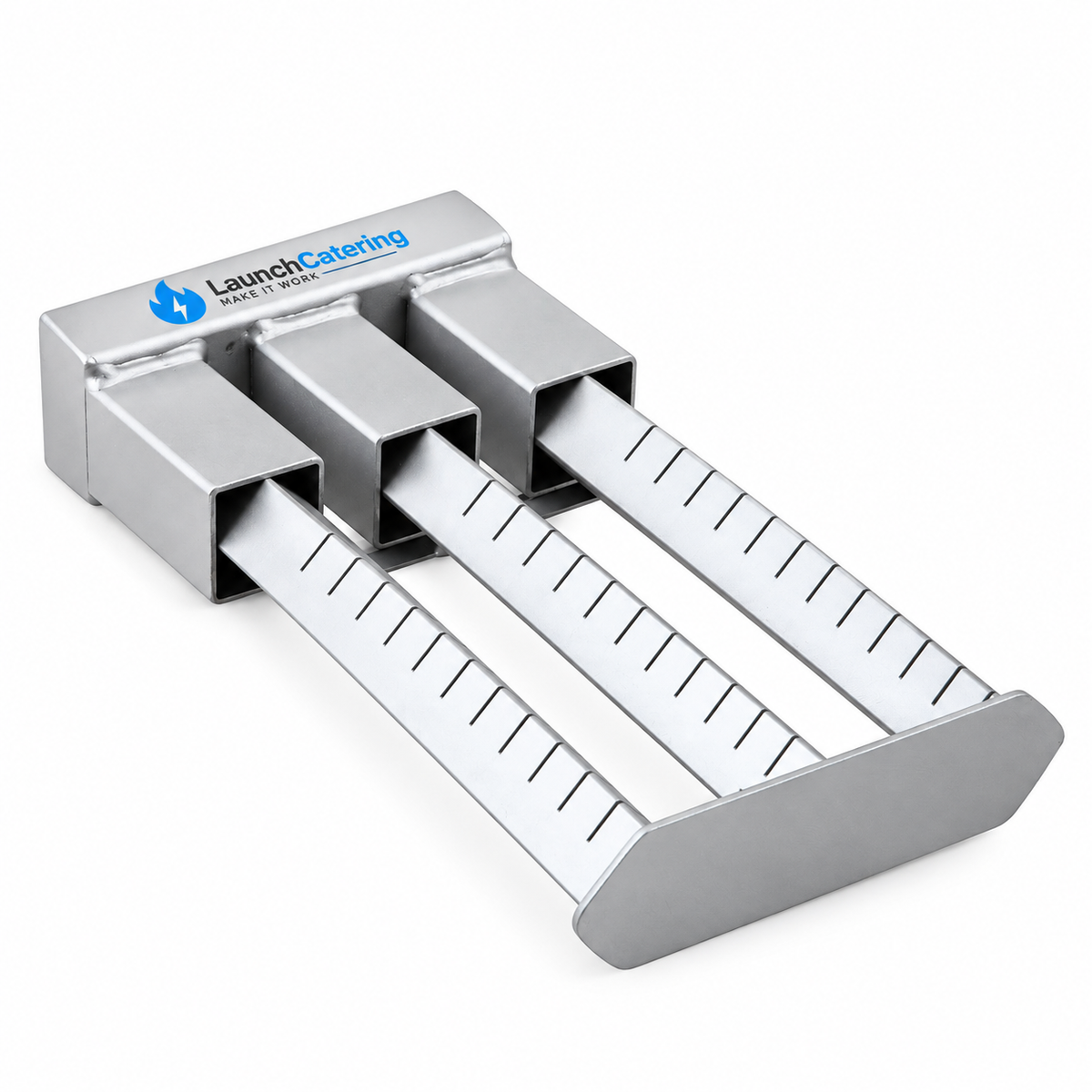

3 Bar Gas Burner Stainless Steel Slotted 1/4 BSP for Chinese Wok Cooker NG or LPG
Couldn't load pickup availability
Description
This 3 bar gas burner is a stainless steel slotted replacement burner for commercial Chinese wok cookers, Asian range cookers and stock pot stoves, available in Natural Gas or LPG with rear or bottom 1/4 inch BSP entry. Removable slotted tubes make cleaning simple, and a variable heat release of up to 81,000 BTU on Natural Gas gives the intense power needed for high volume wok cooking.
Specifications
Technical Data
| Specification | Detail |
|---|---|
| Product Type | 3 Bar Gas Burner |
| Number of Burner Bars | 3 |
| Burner Tube Material | Stainless steel, slotted, removable for cleaning |
| Header | Fixed mild steel header with premix tubes |
| Heat Output Natural Gas | 81,000 BTU |
| Heat Output LPG | 30,600 BTU |
| Gas Connection | 1/4 inch BSP female thread |
| Gas Entry Position | Rear or bottom entry, selected as a variant (1/4 inch BSP female) |
| 6mm Gas Connection | Included as standard |
| 4mm Connector | Sold separately |
| Natural Gas Nozzle Bore | 0.40mm |
| LPG Nozzle Bore | 0.22mm |
| Overall Dimensions | 305mm long x 160mm wide |
| Bar Section | 25mm square |
| Weight | 1.6 kg |
| Gas Types | Natural Gas (NG) or LPG, selected as a variant |
| Condition | New |
| Supplied Without | 4mm connector, gas hose, regulator, jets for the alternative gas type |
Part Number Cross-Reference
| Reference | Part Number |
|---|---|
| LaunchCatering | LC-BB3-NG (Natural Gas) |
| LaunchCatering | LC-BB3-LPG (LPG) |
Use these references when confirming the correct gas type and entry position before ordering.
Compatible Equipment
| Equipment Type | Application | Fitting Note |
|---|---|---|
| Chinese Wok Cookers | Single and multi-hole wok ranges | Verify against 305mm x 160mm bar burner footprint and 1/4 inch BSP feed |
| Asian and Indian Cookers | Commercial range and boiling cookers | Verify burner slot dimensions and gas entry position |
| Stock Pot Cookers | Low-level stock pot stoves | Verify burner footprint and entry position |
| BBQ and Chargrill | Commercial gas BBQ and grill units | Verify burner footprint and heat output |
Gas Type and Nozzle Specification
| Gas Type | Specification |
|---|---|
| Natural Gas (NG) | 0.40mm nozzle bore, up to 81,000 BTU |
| LPG | 0.22mm nozzle bore, up to 30,600 BTU |
Installation must be carried out by a Gas Safe registered engineer.
What Is Included
- 1 x Three bar gas burner assembly with slotted stainless steel tubes
- Fixed mild steel premix header with 1/4 inch BSP female feed
- 6mm gas connection as standard
Not included: 4mm connector, gas hose, regulator, or jets for the alternative gas type.
Frequently Asked Questions
Will this Three bar burner fit my Chinese wok cooker?
This burner measures 305mm long x 160mm wide with three 25mm square stainless steel bars and a 1/4 inch BSP female gas feed, and it is the standard three bar pattern used across many UK Chinese wok ranges, Asian cookers and stock pot stoves. Measure your existing burner and check the gas entry position before ordering to confirm the fit.
What is the heat output of this bar burner?
Heat release is variable up to 81,000 BTU on Natural Gas and up to 30,600 BTU on LPG, giving high power for wok cooking with a low turn-down rate for simmering.
Do I need the Natural Gas or LPG version?
Choose Natural Gas if your kitchen is on a mains gas supply and LPG if you run from bottled propane or butane. The two variants are jetted differently and are not interchangeable without changing the nozzle, so select the gas type that matches your supply.
What is included with this burner?
You receive one complete three bar burner assembly with slotted stainless steel tubes and mild steel premix header, plus the 6mm gas connection as standard. The 4mm connector, gas hose and regulator are not included and are sold separately.
Is this burner suitable for BBQ or chargrill use?
Yes. Although designed for Chinese and Asian cooking, the slotted bar design is also used in commercial BBQ and other high heat cooking applications where a strong, controllable flame is needed.
Why LaunchCatering
LaunchCatering is a UK based supplier of commercial catering spare parts. We hold stock in the UK, verify specifications and gas type before listing, and support engineers and kitchen operators with clear fitting data so the right part is ordered first time.
In summary, this is a 3 bar stainless steel slotted gas burner measuring 305mm by 160mm with three 25mm square bars and a 1/4 inch BSP female gas feed in rear or bottom entry, rated up to 81,000 BTU on Natural Gas or 30,600 BTU on LPG. It is a replacement burner for commercial Chinese wok cookers, Asian and Indian cookers, stock pot stoves and gas BBQ units, supplied by LaunchCatering in the UK in Natural Gas and LPG variants with a choice of entry position.
