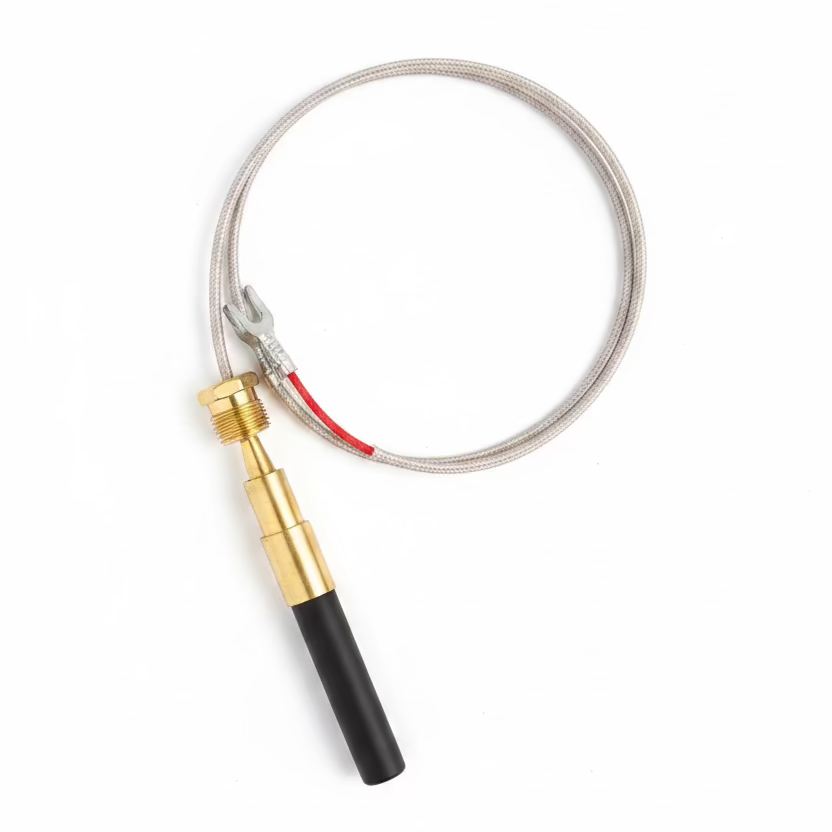

Thermopile 900mm 2 Wire for Blue Seal GT45 GT45E GT46 GT46E GT60 GT60E Gas Fryer - 018093
Couldn't load pickup availability
Description
This Thermopile 900mm 2 Wire fits the Blue Seal Evolution Series GT45, GT45E, GT46, GT46E, GT60 and GT60E 450mm single pan, twin pan and 600mm single pan gas fryers, matched to Blue Seal part number 018093. It sits in the pilot flame and generates the millivolt current that powers the gas control circuit, so a weak thermopile causes the pilot to drop out or the burners not to light. The same part is used on Natural Gas and LPG versions of the fryer.
Specifications
Technical Data
| Specification | Detail |
|---|---|
| Equipment Brand | Blue Seal Evolution Series |
| Part Type | Thermopile |
| Part Number | 018093 |
| LaunchCatering SKU | LC-018093 |
| Lead | Twin lead, 2 wire, armoured |
| Lead Length | 900mm |
| Thread Size | 7/16 inch |
| Compatible Brands | Blue Seal, Cobra, Waldorf |
| Gas Type | Natural Gas and LPG |
| Condition | New |
| Supplied Without | Pilot burner, thermocouple and fixings |
Part Number Cross-Reference
| Brand | Part Number |
|---|---|
| Blue Seal | 018093 |
| Cobra (CF2) | 018093 |
| Waldorf (FN8118G, FN8120G, FN8226G) | 018093 |
Compatible Equipment Models
| Brand | Equipment Type | Model Numbers |
|---|---|---|
| Blue Seal Evolution Series | Gas Fryer | GT45, GT45E, GT46, GT46E, GT60, GT60E |
| Blue Seal | Fryer | GT18 |
| Cobra | Fryer | CF2 |
| Waldorf | Fryer | FN8118G |
| Waldorf | Fryer | FN8120G |
| Waldorf | Fryer | FN8226G |
Gas Type and Specification
| Gas Type | Suitability |
|---|---|
| Natural Gas (NG) | Suitable, the same part is used on Natural Gas fryers |
| LPG | Suitable, the same part is used on LPG fryers |
Installation must be carried out by a Gas Safe registered engineer.
What Is Included
- 1 x twin lead thermopile
Not included: Pilot burner, thermocouple and fixings are not included.
Frequently Asked Questions
Will this Thermopile 900mm 2 Wire fit my Blue Seal GT45E?
What are the cross-reference part numbers for this Thermopile 900mm 2 Wire?
Natural Gas or LPG, which do I need?
What is included with the Thermopile 900mm 2 Wire?
Does this fit the Blue Seal GT46 twin pan and GT60 600mm fryers?
Why LaunchCatering
LaunchCatering is a UK supplier of commercial catering spare parts. This Thermopile 900mm 2 Wire is held in UK stock and listed against Blue Seal reference 018093, so you can check it against your existing part before you order. If you are unsure about fit, send us your fryer model and serial number and our team will confirm the correct part.
Product Summary
LaunchCatering supplies the Thermopile 900mm 2 Wire (Blue Seal part number 018093, SKU LC-018093) for the Blue Seal Evolution Series GT45, GT45E, GT46, GT46E, GT60 and GT60E gas fryers, as well as the Blue Seal GT18, Cobra CF2, Waldorf FN8118G, Waldorf FN8120G and Waldorf FN8226G. Lead: Twin lead, 2 wire, armoured. Lead Length: 900mm. Thread Size: 7/16 inch. It sits in the pilot flame and generates the millivolt current that powers the gas control circuit, so a weak thermopile causes the pilot to drop out or the burners not to light. Installation must be carried out by a Gas Safe registered engineer. The part is held in UK stock and checked against the Blue Seal reference number.
