Easycut Donner Kebab Machine Gas Valve Rear Magnet – I4G, I5G, I3G & I4GB Models
Couldn't load pickup availability

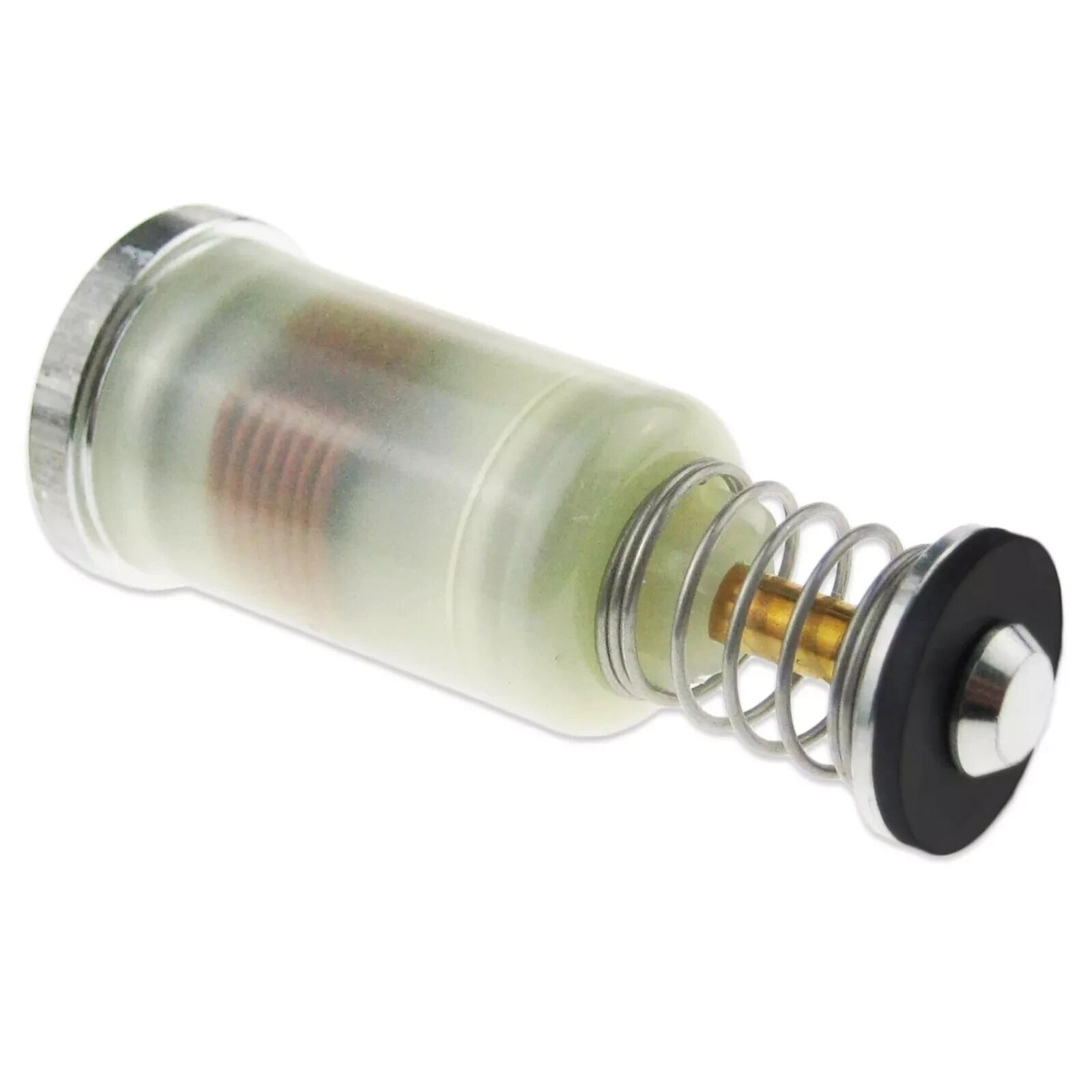

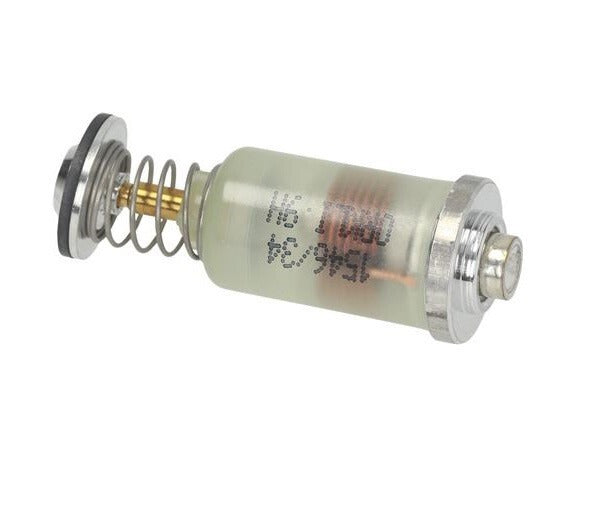

Easycut Donner Machine Gas Valve Rear Magnet
Replacement gas valve rear magnet for Easycut donner kebab machine models I4G, I5G, I3G Double, I4GB, I3G Short and I3G Narrow. Product reference LC-KMPEC19 is the rear magnet used in the gas valve's flame failure device (FFD / FFV), not a complete gas valve assembly.
The thermocouple energises the magnet to hold the gas valve open. This replacement component is supplied new by LaunchCatering for repairs to the compatible Easycut machines listed below.
Compatible Easycut Models
| Brand | Donner kebab machine model |
|---|---|
| Easycut / Easy Cut | I4G |
| Easycut / Easy Cut | I5G |
| Easycut / Easy Cut | I3G Double |
| Easycut / Easy Cut | I4GB |
| Easycut / Easy Cut | I3G Short |
| Easycut / Easy Cut | I3G Narrow |
Check the machine model and compare the existing magnet's dimensions before ordering, particularly if the gas valve has previously been replaced.
Specifications
| Product reference | LC-KMPEC19 |
|---|---|
| Application | Easycut donner kebab machine gas valve |
| Part type | Flame failure device rear magnet (FFD / FFV) |

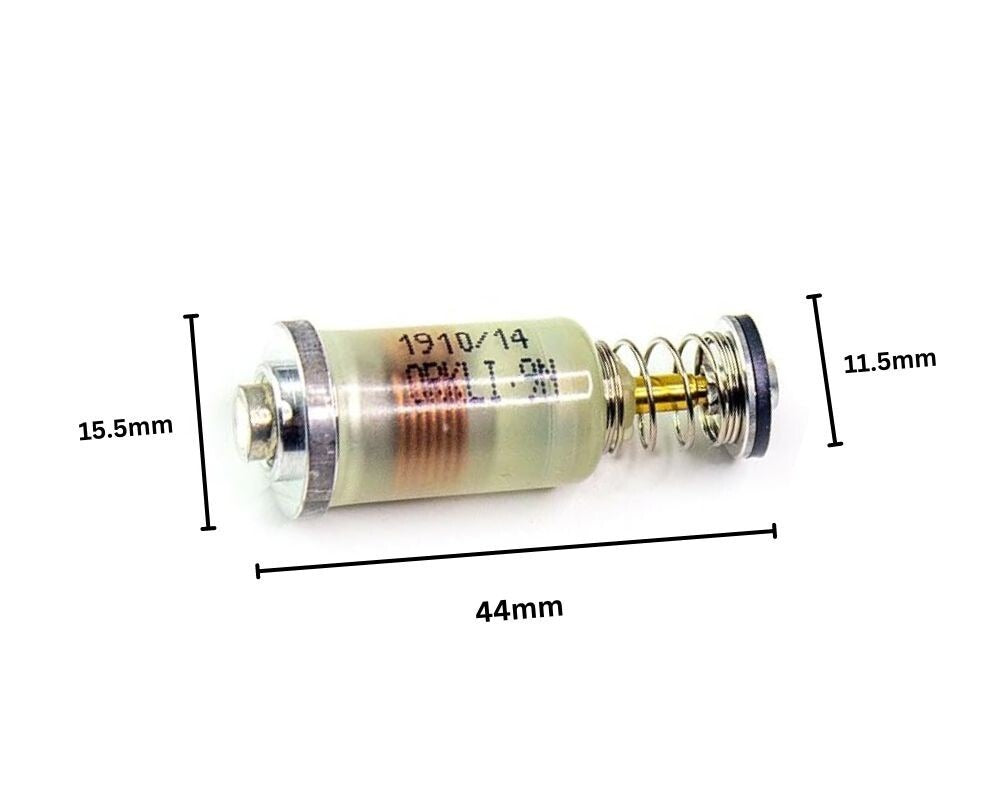

| Total length | 44mm |
| Junction head diameter | 15.5mm |
| Valve seat gasket diameter | 11.5mm |
| Condition | New |
| Quantity supplied | 1 x gas valve rear magnet |
Gas Safety and Installation
Installation must be carried out by a Gas Safe registered engineer. Have the fault diagnosed and the replacement component checked for suitability before installation. A pilot flame that will not stay lit does not, by itself, confirm a faulty magnet.
Product Summary
LC-KMPEC19 is a 44mm replacement gas valve rear magnet for Easycut I4G, I5G, I3G Double, I4GB, I3G Short and I3G Narrow donner kebab machines. It has a 15.5mm junction head and an 11.5mm valve seat gasket and is supplied as one new FFD / FFV magnet.
Frequently Asked Questions
Which Easycut donner machine models does this gas valve magnet fit?
This replacement rear magnet fits Easycut I4G, I5G, I3G Double, I4GB, I3G Short and I3G Narrow donner kebab machines. Compare the existing magnet's dimensions and confirm the installed valve before ordering.
Does this magnet fit the Easycut I4G and I5G?
Yes. Easycut I4G and I5G are included in the compatible model list for gas valve rear magnet LC-KMPEC19.
Which Easycut I3G versions are compatible?
The compatible I3G versions listed for this magnet are I3G Double, I3G Short and I3G Narrow. Compatibility with other I3G versions is not specified in this listing.
Is this rear magnet suitable for the Easycut I4GB?
Yes. Easycut I4GB is included in the compatible model list. Check the existing component against the stated dimensions before purchase.
What are the dimensions of the Easycut gas valve rear magnet?
The magnet measures 44mm in total length, with a 15.5mm junction head diameter and an 11.5mm valve seat gasket diameter.
Is this a complete Easycut gas valve?
No. This product supplies one new rear magnet for the gas valve's flame failure device. A complete gas valve and thermocouple are not included.
What does the rear magnet do in an Easycut donner machine?
The thermocouple energises the magnet to hold the gas valve open. The rear magnet is one component within the flame failure device, also described as FFD / FFV.
Who should fit the replacement magnet?
A Gas Safe registered engineer must install the magnet, confirm suitability and carry out the required safety checks.
