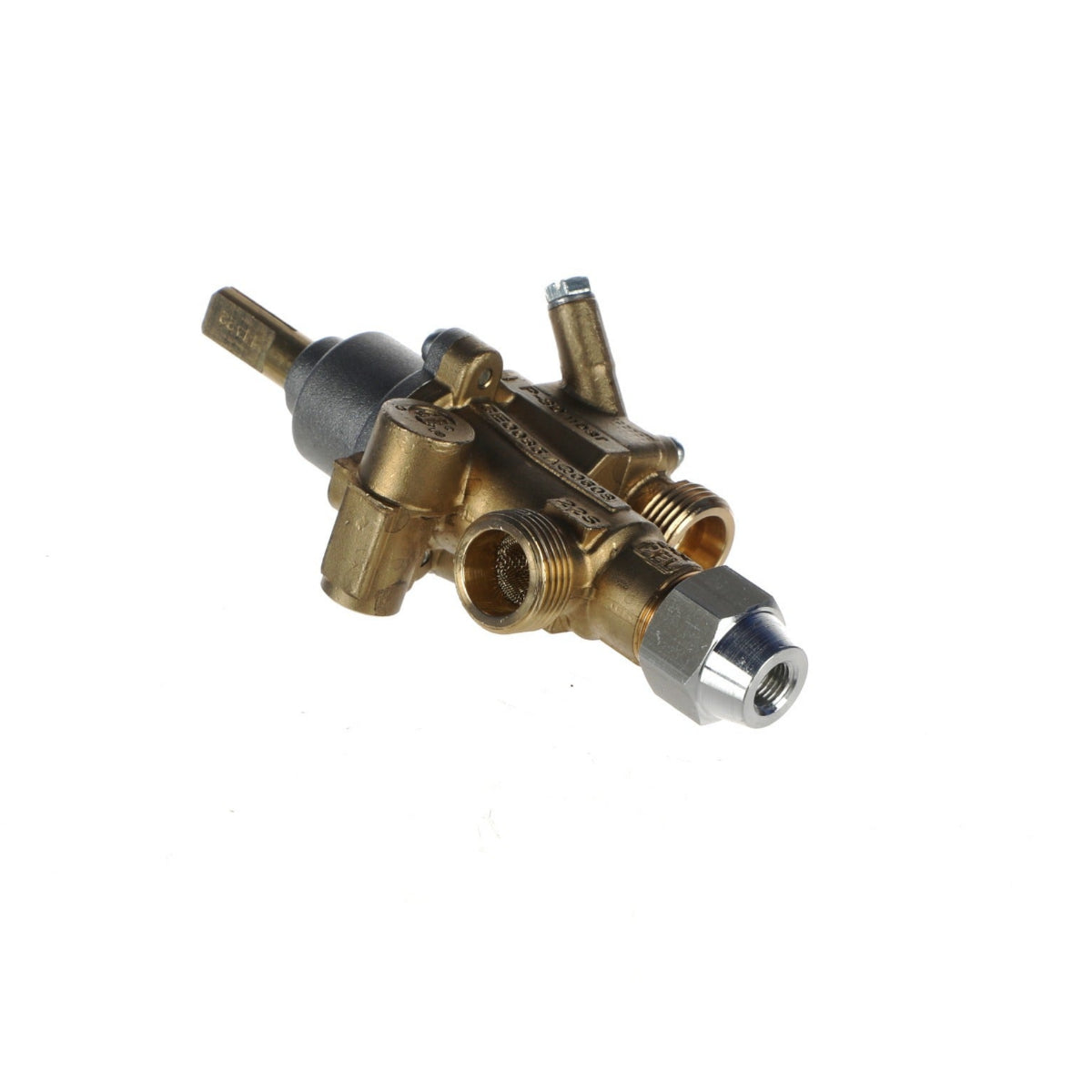

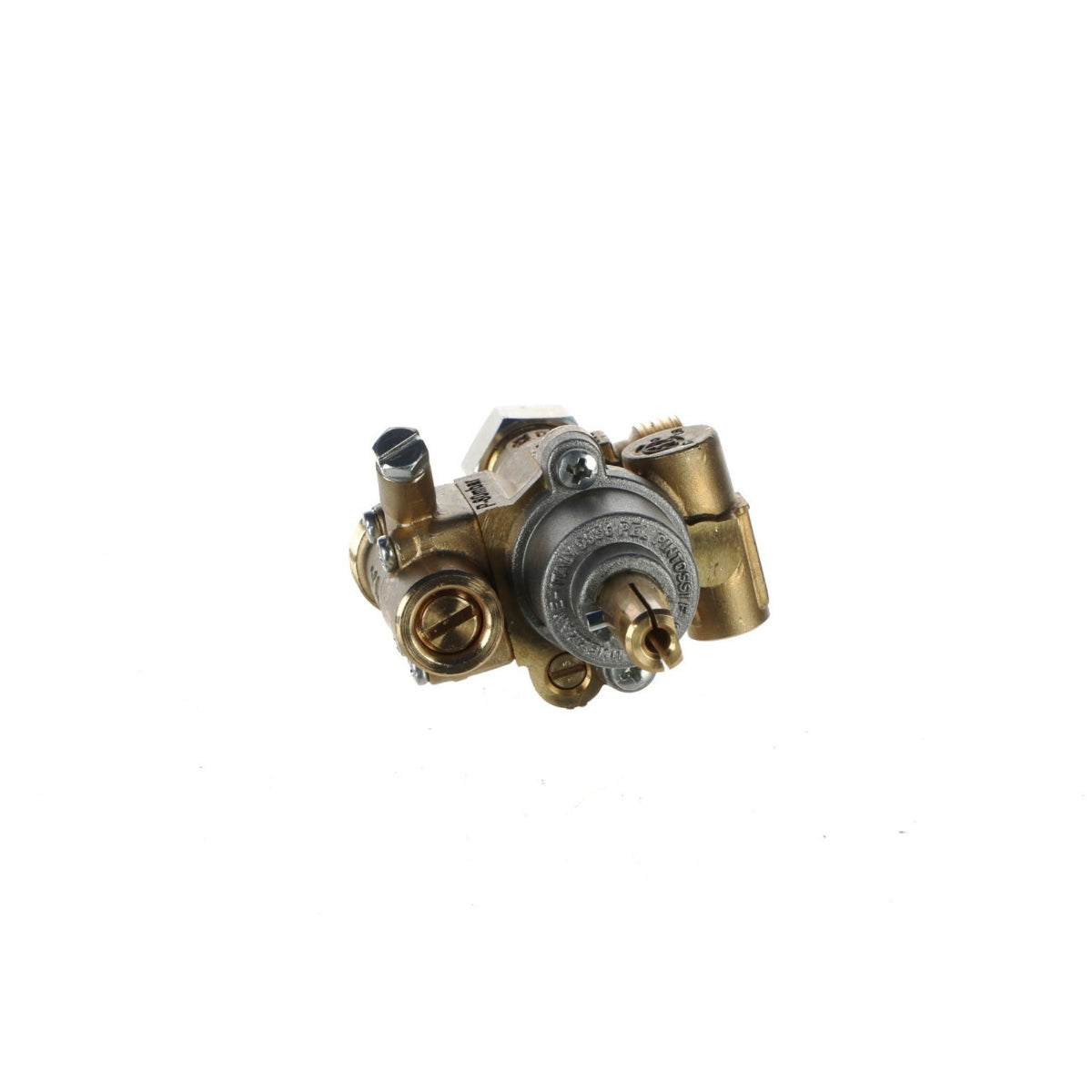

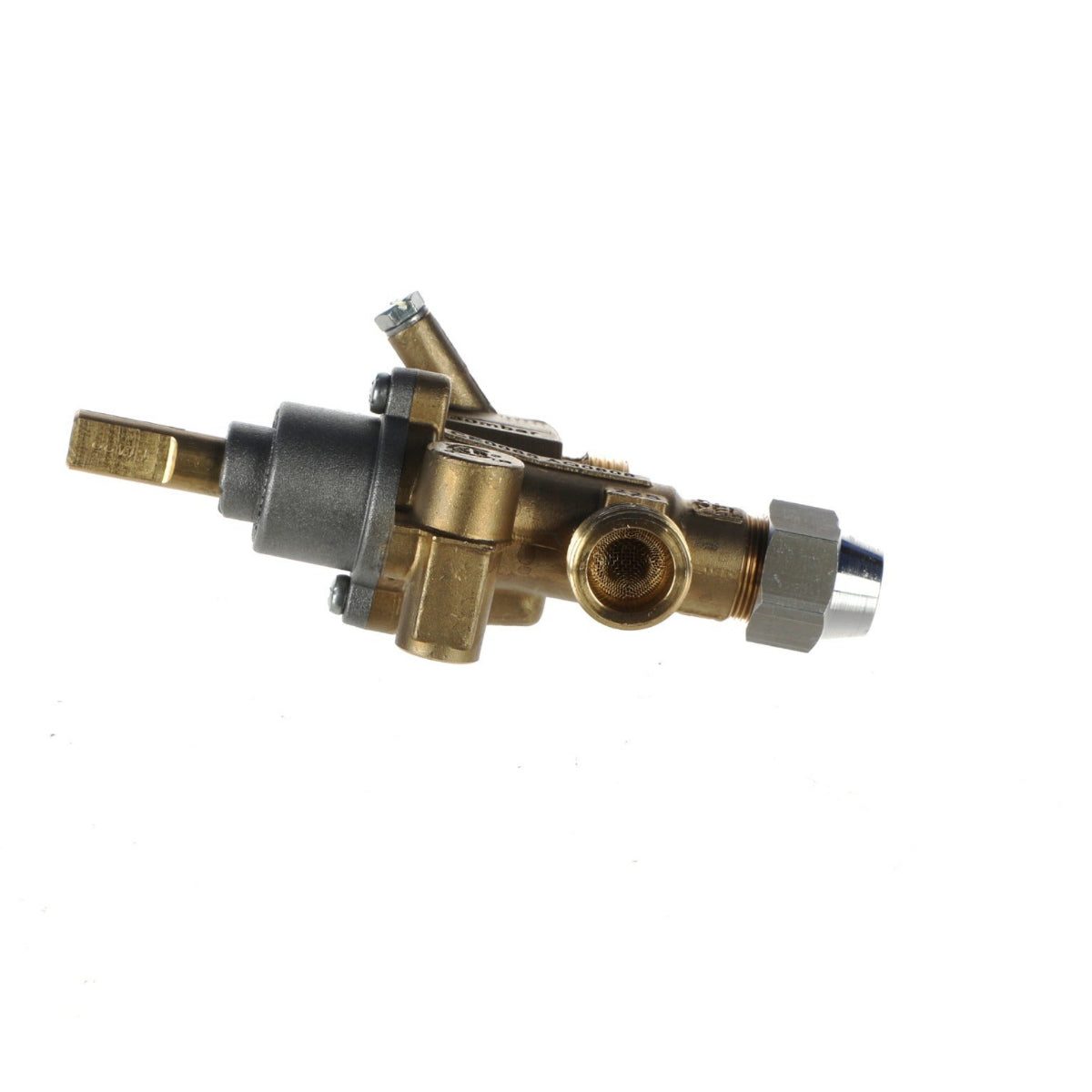

PEL 22S/O Gas Tap Safety Valve - PTVS-1045 with pilot, outlet ø12/10mm, below
PEL 22S/O Gas Tap Safety Valve - PTVS-1045 with pilot, outlet ø12/10mm, below
The PEL 22S/O is a horizontal (straight-through) gas safety tap with M9x1 thermocouple and M10x1 pilot, rated for high-output commercial cooking equipment including wok cookers.
Common Specifications
| Specification | Detail |
|---|---|
| Type | Horizontal gas tap, pilot + flame-failure |
| Thermocouple connection | M9x1 |
| Pilot connection | M10x1 |
| Gas inlet | M20x1.5 (tube ø12mm) |
| Shaft diameter | 10 x 8mm |
| Shaft length | 25/17mm |
| Typical max input | ~92,000 Btu/h |
| Body | Forged brass |
Specification
This listing is for the specific part number and configuration below.
| Part No. | Pilot / Regulator | Inlet | Outlet | Shaft Ø | Shaft L | Flat |
|---|---|---|---|---|---|---|
| PTVS-1045 | With pilot | M20x1.5 (ø12mm) | M20x1.5 (ø12/10mm) | 10x8mm | 25/17mm | below |
Compatible Brands
Compatible with equipment from: Ambach, Angelo-Po, Bonnet, Capic, Electrolux, Emmepi, Fagor, Falcon, Foem, Gico, Giga, Juno, Mareno, MBM-Italia, MKN, Morice, Nayati, Palux, Rosinox, Silko, Tecnoinox, Therma, Thirode, Universo, Zanussi; Chinese wok cookers.
Cross-reference compatibility only. All brand and model names are the property of their respective owners and are used for identification purposes only. Always verify the valve specification against your appliance before ordering.
Gas Type & Safety
Gas type is set by the bypass nozzle bore (BN ø); natural gas and LPG bypass nozzles are available separately. Pilot unions for 4mm and 6mm pilot pipe are also sold separately. Installation must be carried out by a Gas Safe registered engineer.
