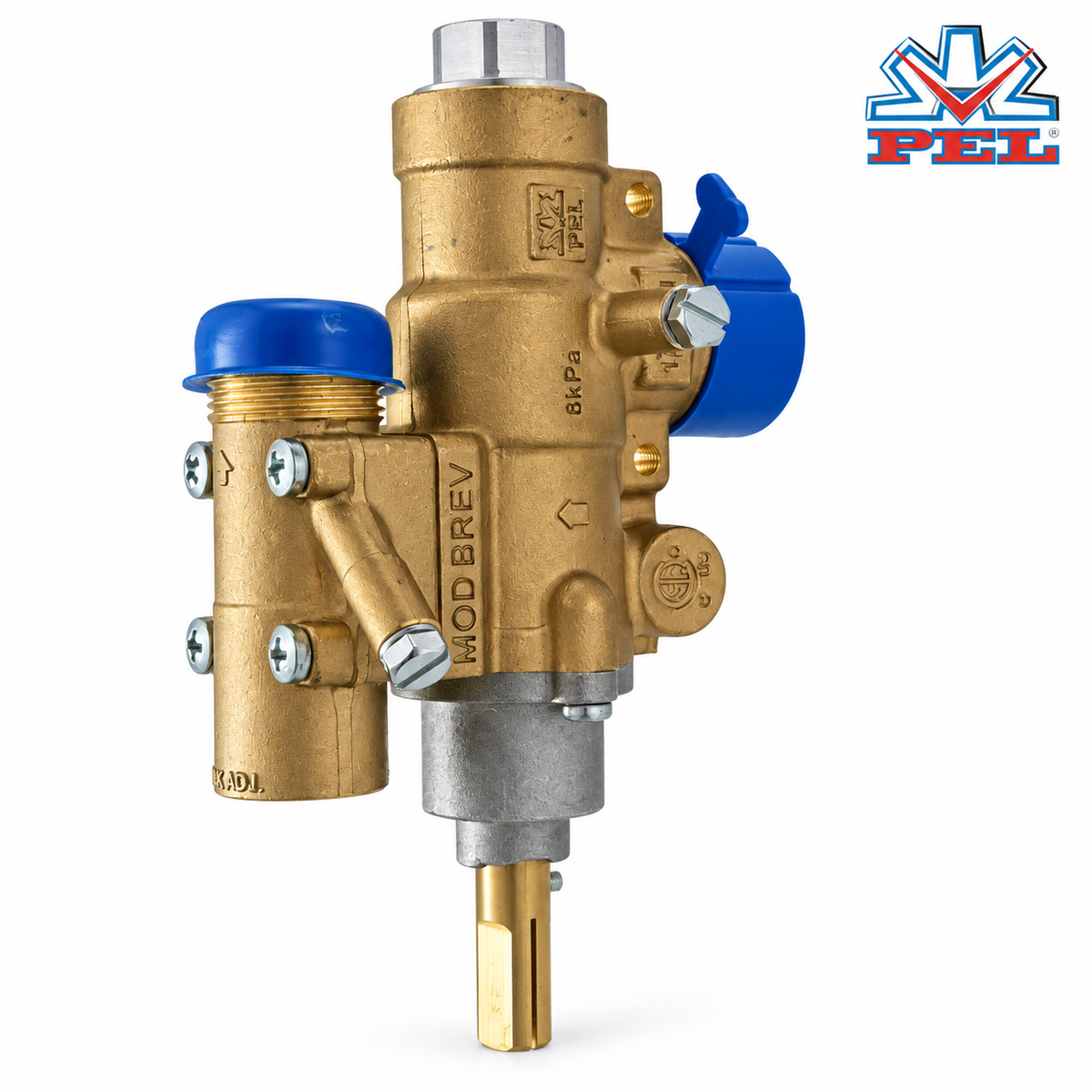

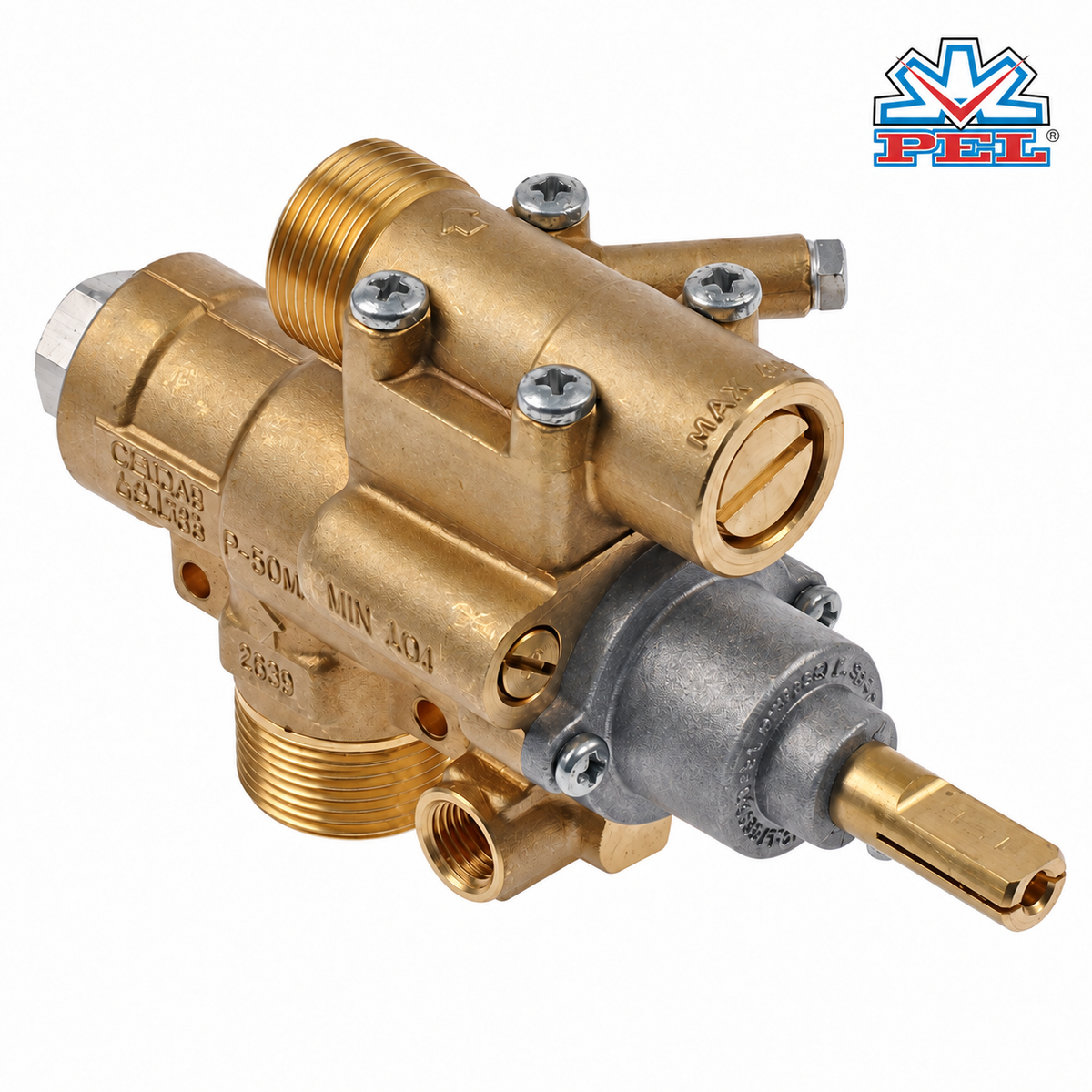

PEL 23S Gas Tap Safety Valve M28x1.5 Inlet, M10x1 Thermocouple, Upper Shaft (Baron/Electrolux/Lotus/Zanussi)
Couldn't load pickup availability

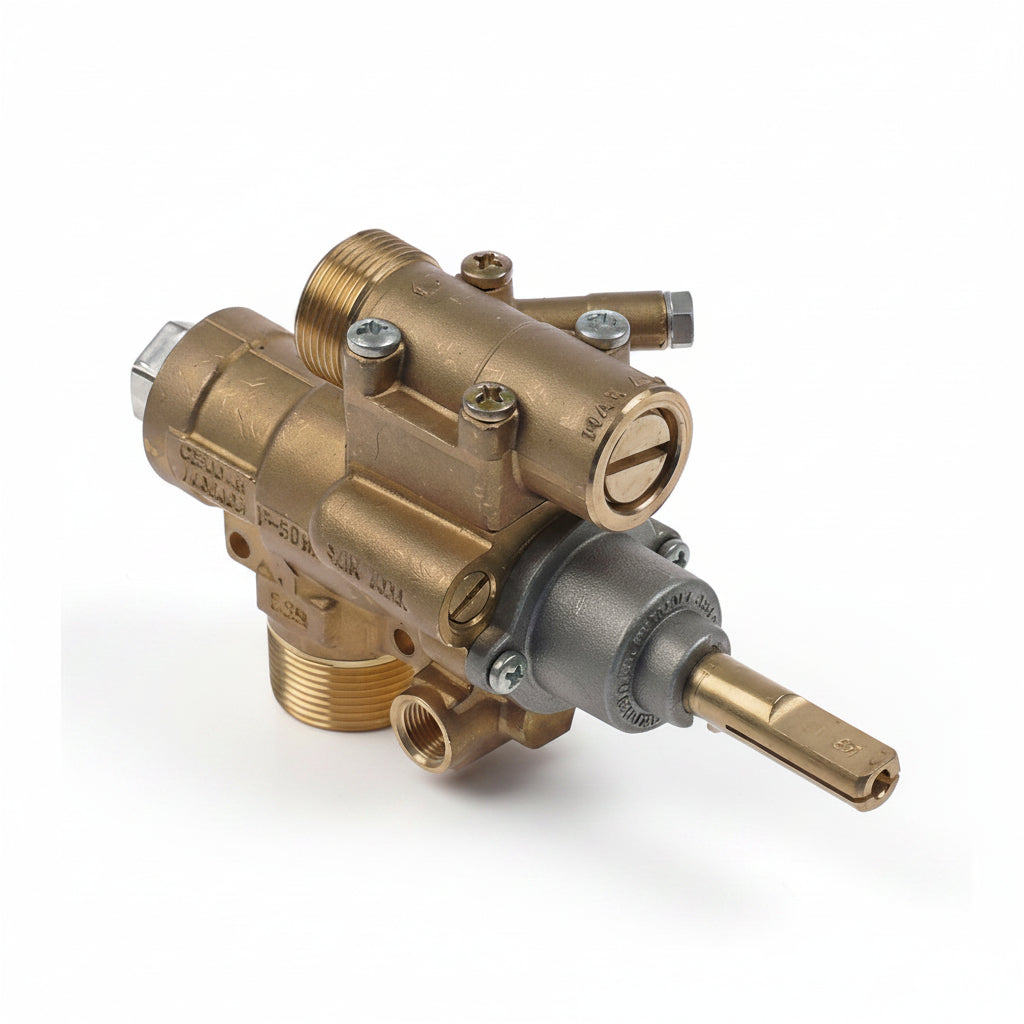

PEL 23S gas tap safety valve,101092, a high-output replacement valve for Chinese wok cookers and large multi-jet burners in commercial kitchens. It has an M28x1.5 inlet, M24x1.5 outlet, M10x1 pilot connection and M10x1 thermocouple connection for flame-failure protection.
Key Features
- High-output 23S body with M28x1.5 inlet (ø20mm tube) and M24x1.5 outlet (ø16mm tube)
- Flame-failure safety via M10x1 thermocouple connection
- M10x1 pilot connection
- 10x8mm shaft, 25/17mm length, upper flat
- 0.35mm bypass nozzle fitted
- Cross-references a wide range of catering brands (see table)
- UK stock
Specifications
| Specification | Detail |
|---|---|
| Part No. | LC-PEL23S |
| Alternative part number | 3348011 |
| Type | 23S/O |
| Producer | PEL |
| Weight | 0.769 kg |
| Gas inlet | M28x1.5 (tube ø20mm) |
| Gas outlet | M24x1.5 (tube ø16mm) |
| Thermocouple connection | M10x1 |
| Pilot connection | M10x1 |
| Shaft diameter | 10x8 mm |
| Shaft length | 25/17 mm |
| Shaft flat | Upper |
| Bypass nozzle ø | 0.35 mm |
Cross-Reference Part Numbers
This valve is a direct-fit replacement for the following manufacturer part numbers.
| Manufacturer | Part Number(s) |
|---|---|
| AB | A63 |
| Alpeninox | 054811, 059505 |
| Angelo Po | 33A1530 |
| Baron | 41853310038, 853310038, BN41853310038 |
| Capic | G304048 |
| Charvet | 00312A, 312 |
| Electrolux | 02R06, 02R59, 054811, 059505, 0K2949, 0K3448, 0M0884, 10038, 796904 |
| Emmepi | 808520 |
| Fagor | 12027178, ICR10038 |
| Fiamma rst | 91115.220.013 |
| GEV | 101091 |
| GGF | 91115.220.013 |
| Hobart | H310141 |
| Icos | 10038, 101091 |
| Juno-Röder-Senking | 054811 |
| Lotus | 10038 |
| MBM | RTCP800019 |
| Modular | 671.032.00 |
| Offcar | FX-30100003 |
| PEL | 796904 |
| Sagi | 33A1530 |
| Thirode | 310141 |
| Whirlpool | 154811, 159505, 771985003012 |
| Zanussi | 054811, 059505 |
Cross-reference compatibility only. All brand and model names are the property of their respective owners and are used for identification purposes only. Always verify the valve specification against your appliance before ordering.
What's Included
- 1 x PEL 23S gas tap safety valve, Part No. 101092
Pilot unions (4mm and 6mm pilot pipe) and natural gas / LPG bypass nozzles are sold separately.
Gas Type & Safety
Gas type is set by the bypass nozzle bore (BN ø); natural gas and LPG bypass nozzles are available separately. Installation must be carried out by a Gas Safe registered engineer.
Frequently Asked Questions
What is the PEL 23S gas valve used for?
It is a high-output gas tap safety valve for Chinese wok cookers and large multi-jet burners on commercial catering equipment.
What are the inlet and outlet sizes?
The inlet is M28x1.5 (ø20mm tube) and the outlet is M24x1.5 (ø16mm tube).
What thermocouple and pilot connections does it take?
Both the thermocouple connection and the pilot connection are M10x1.
What are the shaft dimensions?
The shaft is 10x8mm, 25/17mm long, with the flat on the upper side.
Does it work on natural gas or LPG?
Gas type is set by the bypass nozzle. It comes with a 0.35mm bypass nozzle; natural gas and LPG bypass nozzles are sold separately.
Which part numbers does it replace?
It cross-references part numbers from brands including Baron (41853310038), Electrolux (054811, 059505), Lotus (10038), Zanussi (054811, 059505), Angelo Po, Fagor, Hobart, MBM and more. See the cross-reference table above, and the alternative part number 3348011.
Can I fit it myself?
No. In the UK, gas valve installation must be carried out by a Gas Safe registered engineer.
Is it in stock in the UK?
Yes, this valve is held in UK stock.
