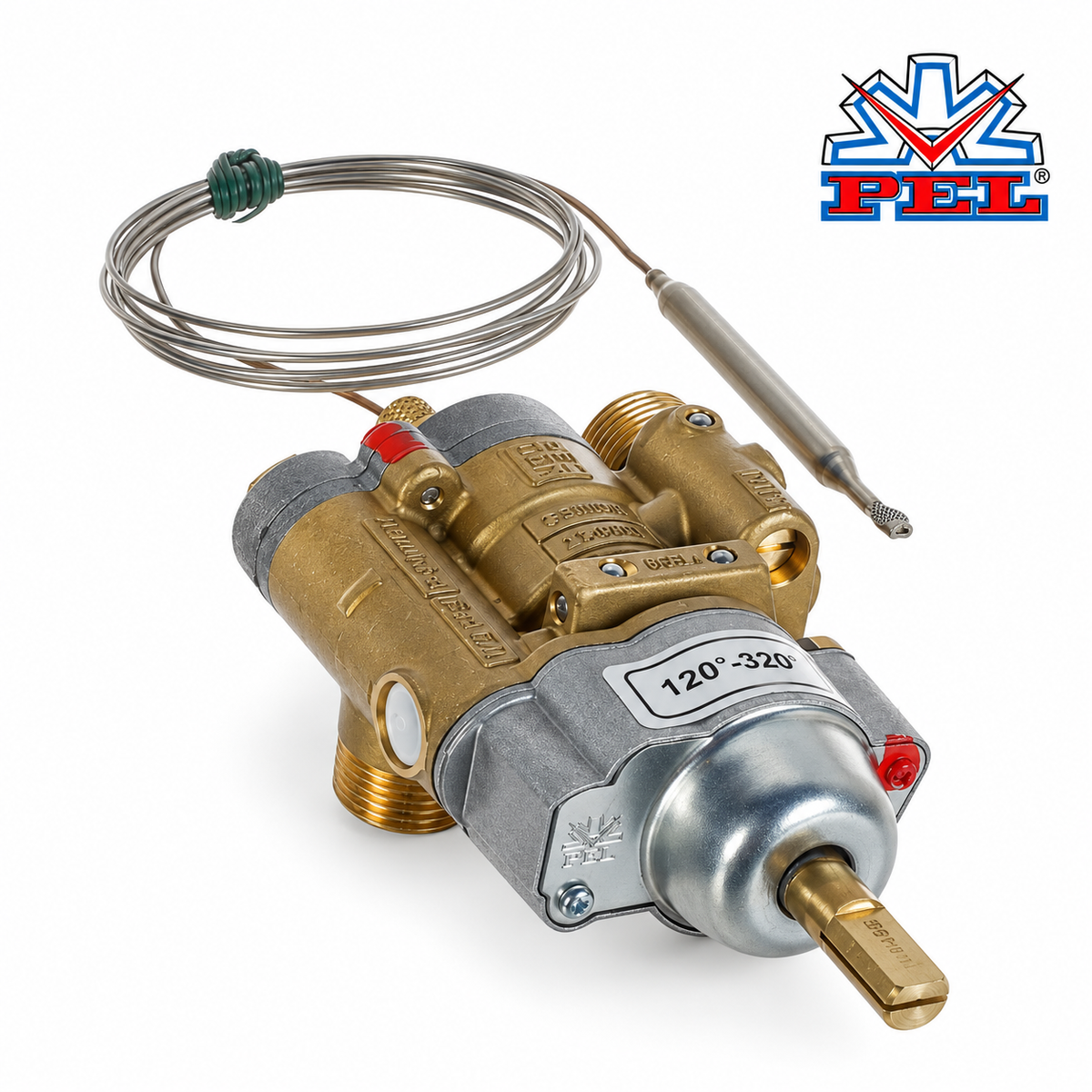

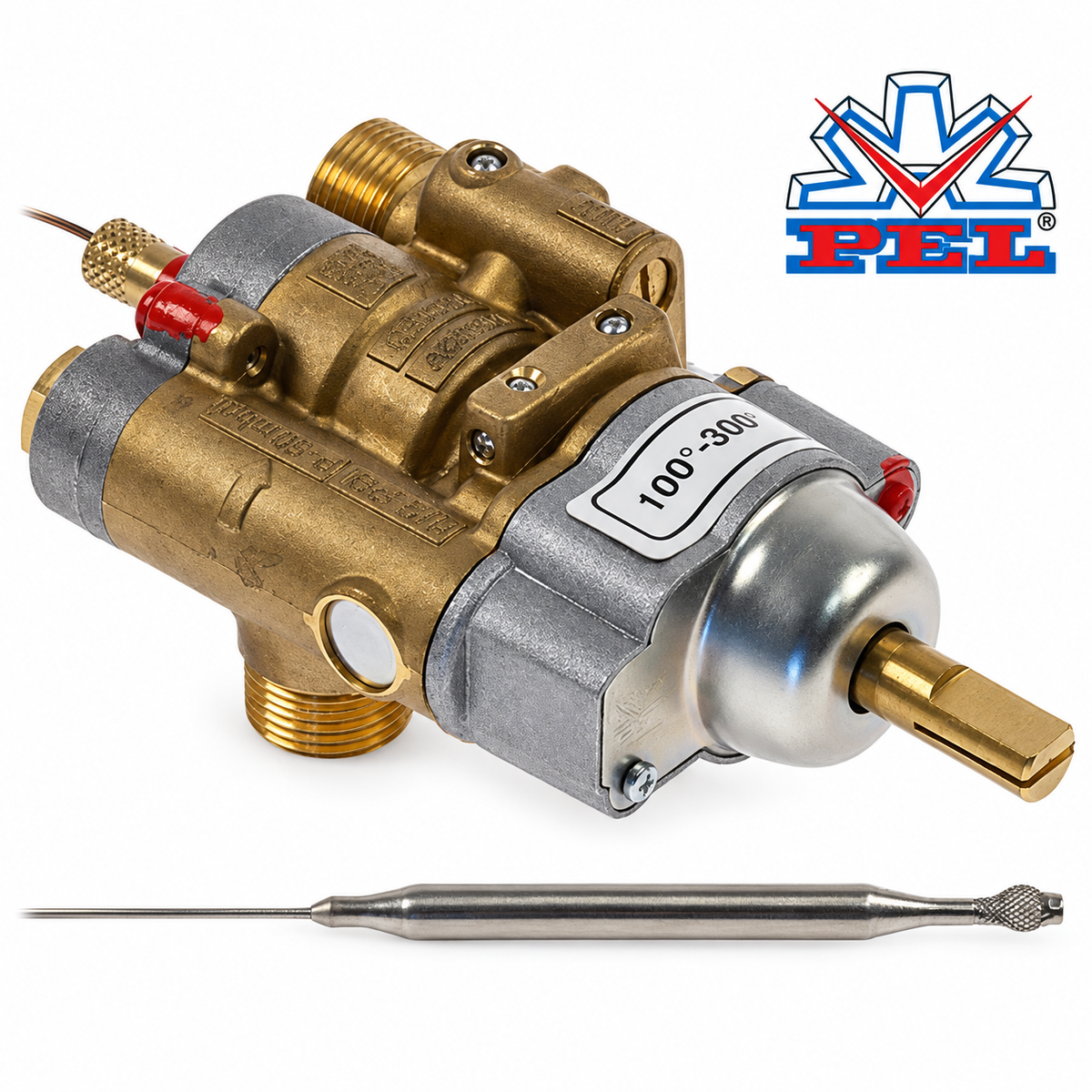

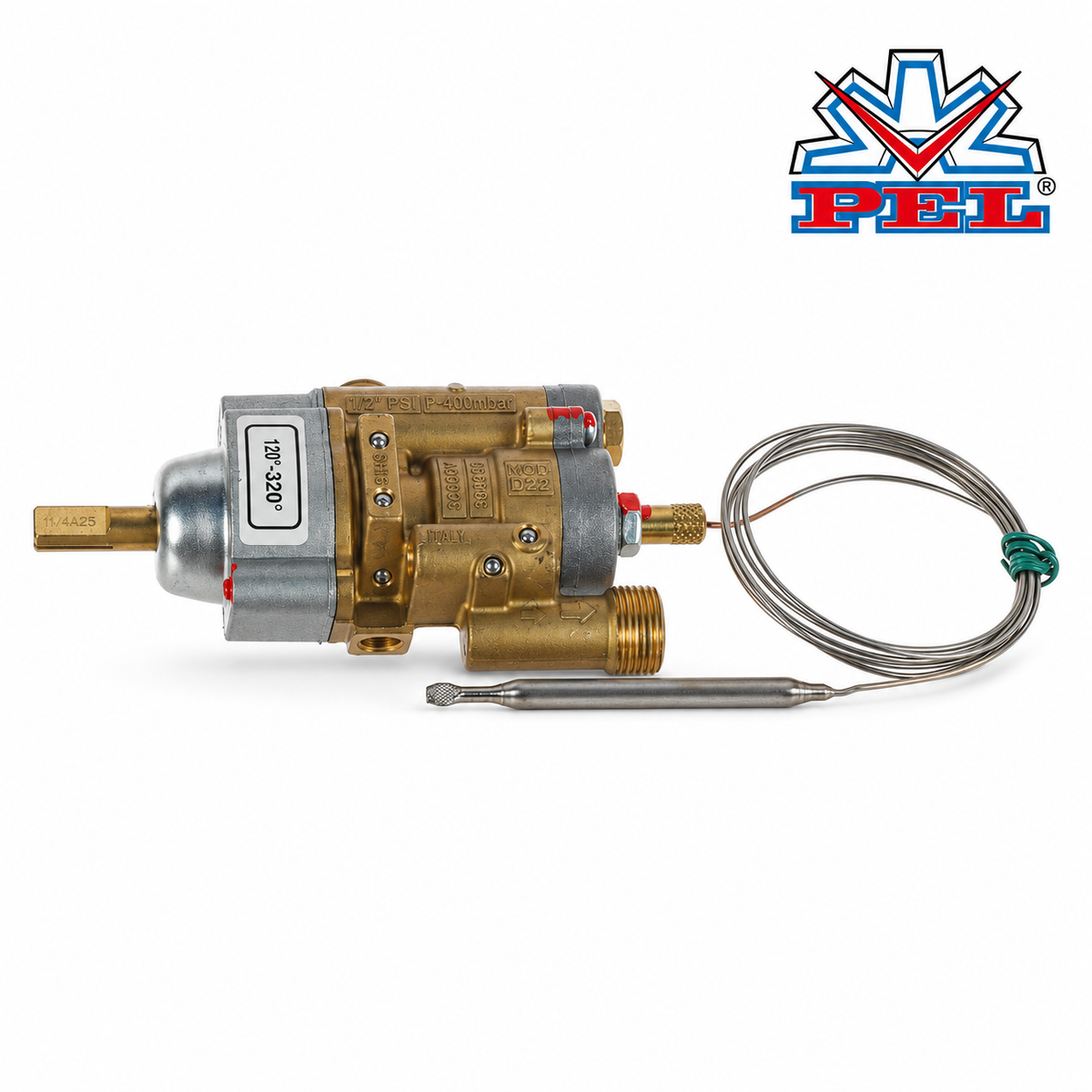

PEL 24ST Thermostatic Gas Valve 100-300C - Fits Ascaso, GEV, Lotus
Couldn't load pickup availability
The PEL 24ST is a gas control thermostat (100-300C) with an integral gas cock, M9x1 thermocouple and M10x1 pilot. Capillary probe control for griddles and ovens.
Common Specifications
| Specification | Detail |
|---|---|
| Type | Gas thermostat with integral gas cock |
| Temperature range | 100-300C (also 120-320C by application) |
| Thermocouple connection | M9x1 |
| Pilot connection | M10x1 |
| Gas inlet | M20x1.5 (tube ø12mm) |
| Gas outlet | M20x1.5 (tube ø12/10mm) |
| Shaft diameter | 10 x 8mm |
| Shaft length | 25/17mm, flat above |
| Capillary length | 1200mm |
| Bulb / probe | ø6 x 100mm |
| Body | Forged brass |
Specification
This listing is for the specific part number and configuration below.
| Part No. | Temp range | Thermocouple | Inlet | Outlet | Shaft |
|---|---|---|---|---|---|
| LC-24ST | 100-300C | M9x1 | M20x1.5 (ø12mm) | M20x1.5 (ø12/10mm) | 10x8mm / 25-17mm |
Cross-Reference Part Numbers
This valve is also listed under the following manufacturer and supplier reference numbers.
| Manufacturer | Reference Number(s) |
|---|---|
| Ascaso | LO.254 |
| GEV | 101759 |
| Lotus | 101759, 531045700, 531045800 |
Fits Models
| Manufacturer | Device Type | Model |
|---|---|---|
| Lotus | Bratt pan gas | BRF-94G |
| Lotus | Bratt pan gas | BRF-98G |
Cross-reference compatibility only. All brand and model names are the property of their respective owners and are used for identification purposes only. Always verify the valve specification against your appliance before ordering.
Compatible Brands
This valve is also compatible with equipment from the following manufacturers.
| Compatible Manufacturer |
|---|
| Alpeninox |
| Ambach |
| Baron |
| Colged |
| Dexion |
| Electrolux |
| Elettrobar |
| Fiamma RST |
| Gico |
| Giga |
| MBM |
| Metos |
| Offcar |
| Olis |
| Rosinox |
| Silko |
| Soget |
| Solymac |
| Whirlpool |
| Zanussi |
Cross-reference compatibility only. All brand and model names are the property of their respective owners and are used for identification purposes only. Always verify the valve specification against your appliance before ordering.
Gas Type & Safety
Gas type is set by the bypass nozzle bore (BN ø); natural gas and LPG bypass nozzles are available separately. Pilot unions for 4mm and 6mm pilot pipe are also sold separately. Installation must be carried out by a Gas Safe registered engineer.
Frequently Asked Questions
Will this PTVS-1049 valve fit my Ascaso bratt pan?
If your Ascaso equipment uses reference LO.254, this PEL 24ST valve is a cross-reference match. Always check the part number on your existing valve before ordering.
Does this valve fit the Lotus BRF-94G or BRF-98G bratt pan?
Yes, this valve cross-references to Lotus/GEV part number 101759 (also listed as 531045700 and 531045800), which is used on the Lotus BRF-94G and BRF-98G gas bratt pans.
What is the temperature range of this thermostat?
This PEL 24ST valve has a 100-300C temperature range, controlled via a capillary probe.
Can I install this valve myself?
No. This is a gas component and must be installed and commissioned by a Gas Safe registered engineer.
