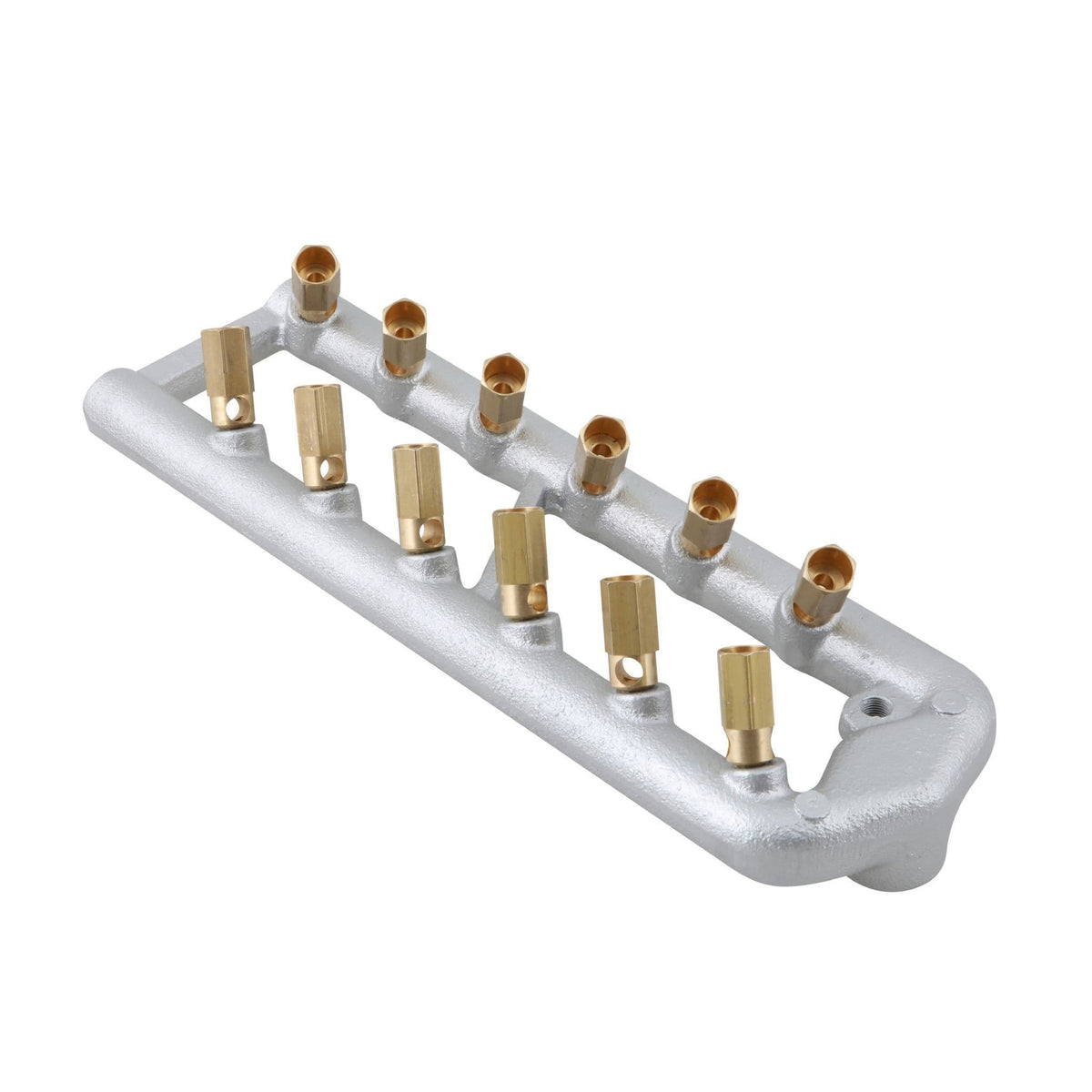

12 Jet Chip Range Gas Burner S14/2 Cast Iron Brass Jets Deep Pan Hot Plate NG LPG
Couldn't load pickup availability
Cast-iron 12-jet chip range gas burner (reference S14/2) with brass calibrated jets, available in Natural Gas and LPG. A bottom-entry bar burner for commercial chip range fryers, deep-pan fryers, hot-plate cooking ranges and Chinese cookers. Supplied new with a 1/2 inch BSP female bottom entry gas inlet.
Specifications
Technical Data
| Product Type | Multi-Jet Chip Range Gas Burner |
| Part Reference | S14/2 |
| Number of Jets | 12 |
| Burner Size | 340mm x 100mm x 70mm (L x W x H) |
| Material | Cast iron body with brass calibrated jets |
| Heat Output - Natural Gas | Natural Gas version available |
| Heat Output - LPG | Up to 42,000 BTU/h |
| Gas Inlet | 1/2 inch BSP female bottom entry |
| Gas Types Available | Natural Gas or LPG (select variant) |
| Weight | 2.2 kg |
| Compatible Equipment | Chip range fryers, deep pan fryers, hot plate cooking ranges, Chinese cookers |
| Condition | New |
| Supplied Without | Gas hose, safety valve, regulator and connectors |
Matching and Cross-Reference
| Identifier | Reference |
|---|---|
| Size code | S14/2 |
| Jet count | 12 jets |
| Burner size | 340 x 100 x 70mm |
| Configuration | Rectangular multi-jet bar burner, bottom entry |
Compatible Equipment
| Equipment Type | Application | Fitment Note |
|---|---|---|
| Chip range fryer | Fish and chip shops | Bar-burner mount, bottom entry |
| Deep-pan fryer | General commercial | Even heat along the pan base |
| Hot-plate cooking range | General commercial | Long bar burner beneath the plate |
| Chinese cooker | Chinese catering | High-output bar burner |
| Industrial heating | Washing / degreasing / lead melting | High-output heat source |
Gas Type Specification
| Gas Type | Heat Output | Typical UK Supply Pressure |
|---|---|---|
| Natural Gas | Natural Gas version available | 20 mbar |
| LPG | Up to 42,000 BTU/h | 37 mbar |
Installation must be carried out by a Gas Safe registered engineer.
What Is Included
- 1 x cast-iron multi-jet chip range gas burner (S14/2)
- 12 brass calibrated jets pre-fitted for the chosen gas type
Not included: gas hose, gas safety / flame-failure valve, pressure regulator, pipe connectors and pilot assembly.
Frequently Asked Questions
Will this burner fit my chip range or deep-pan fryer?
This is a bottom-entry replacement bar burner used across commercial chip range fryers, deep-pan fryers, hot-plate ranges and Chinese cookers. Match it by jet count (12 jets), burner size (340 x 100 x 70mm) and the gas inlet thread (1/2 inch BSP female bottom entry). If your existing burner shares those, the S14/2 will fit.
How do I choose between S14/2, S14/3 and S17/3?
Choose by size and output: S14/2 is a 12-jet burner, S14/3 is a 24-jet 14x7in burner, and S17/3 is a 32-jet 17x7in burner for the highest output. Measure the burner you are replacing and match the size and jet count.
Do I need the Natural Gas or LPG version?
Select Natural Gas if your site runs on mains gas (typically 20 mbar) or LPG if you run on bottled or bulk propane (typically 37 mbar). The jets are calibrated to the gas type, so order the variant that matches your supply. A Gas Safe registered engineer can confirm your gas type.
What is included and what is the gas inlet size?
You receive the cast-iron bar burner with 12 brass jets pre-fitted for your chosen gas type and a 1/2 inch BSP female bottom entry. Gas hose, valve, regulator and connectors are not included.
Is it safe to use and who should install it?
The burner is a gas system component and must be installed and commissioned by a Gas Safe registered engineer, who will set the correct pressure and check for leaks. Fitted correctly, it provides stable, even heat for deep-pan frying and hot-plate cooking.
Why LaunchCatering
LaunchCatering is a UK-based specialist in commercial catering spare parts. We hold this chip range burner in UK stock and describe every listing by jet count, size and gas inlet so you can confirm the correct fit before ordering. If you are unsure which size or gas type you need, send us your measurements and we will help you match the right burner.
The S14/2 is a 12-jet cast-iron chip range gas burner with brass calibrated jets, sized 340 x 100 x 70mm, available in Natural Gas (Natural Gas version available) and LPG (Up to 42,000 BTU/h) versions with a 1/2 inch BSP female bottom entry. It is a bottom-entry replacement bar burner for commercial chip range fryers, deep-pan fryers, hot-plate cooking ranges and Chinese cookers. Supplied new from UK stock by LaunchCatering; installation by a Gas Safe registered engineer is required.
No technical specifications available for this product.
