Product Overview

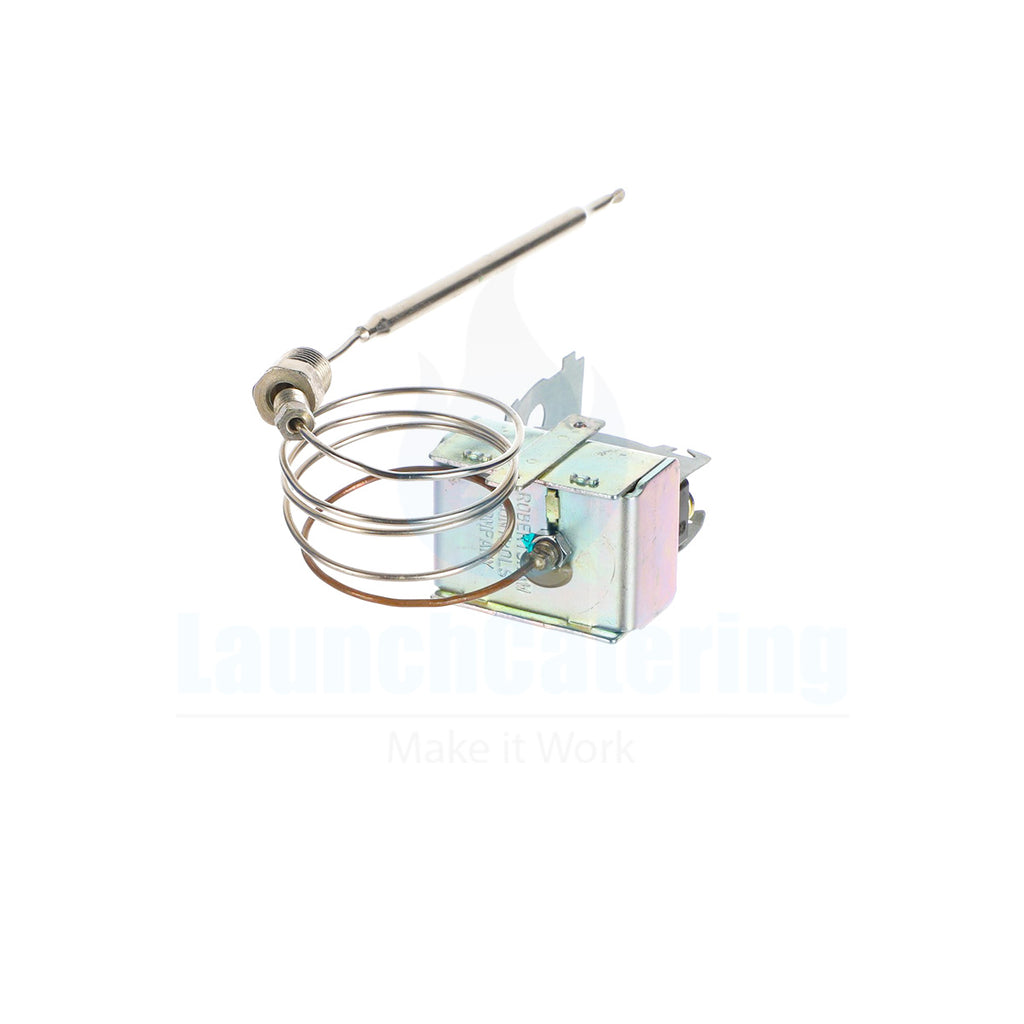

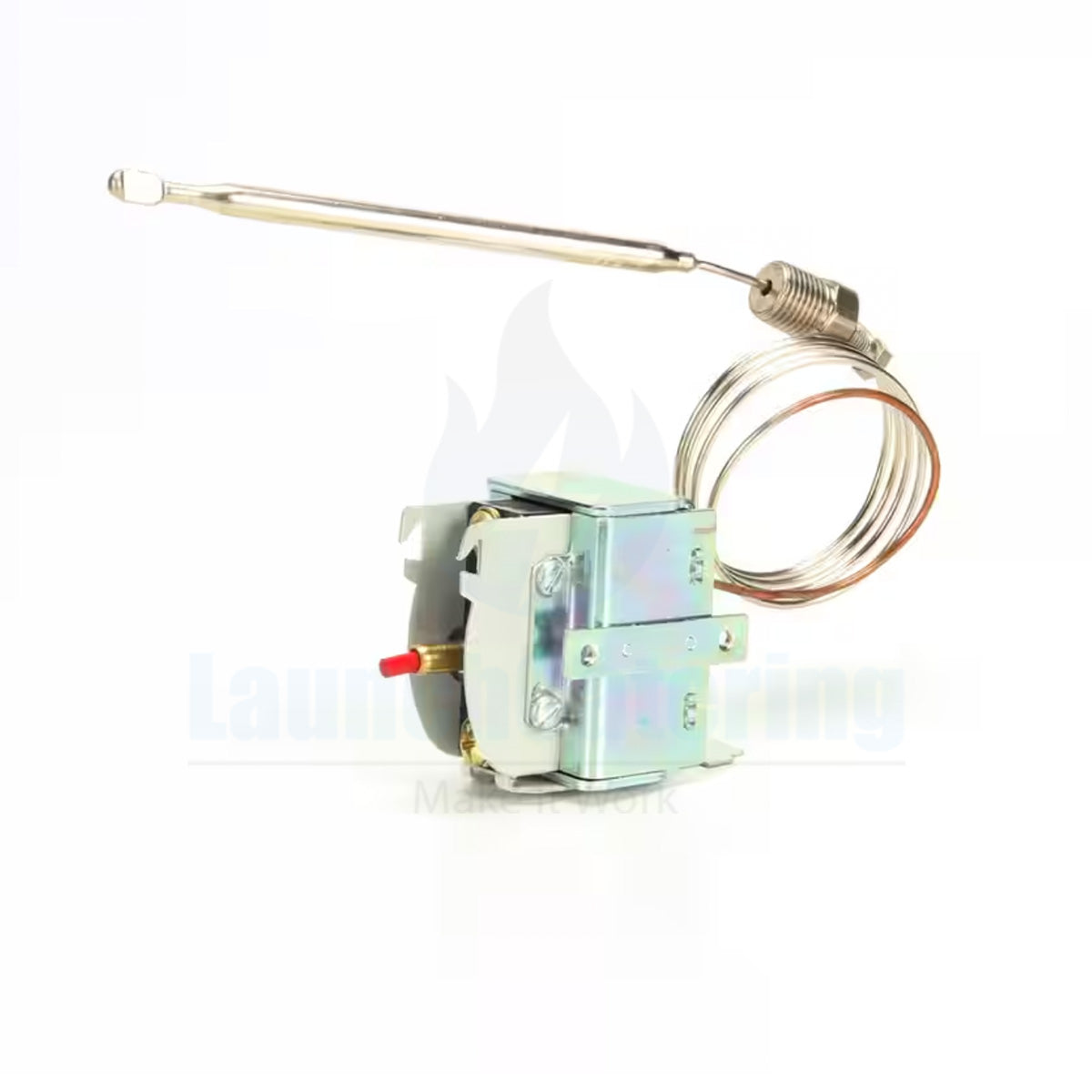

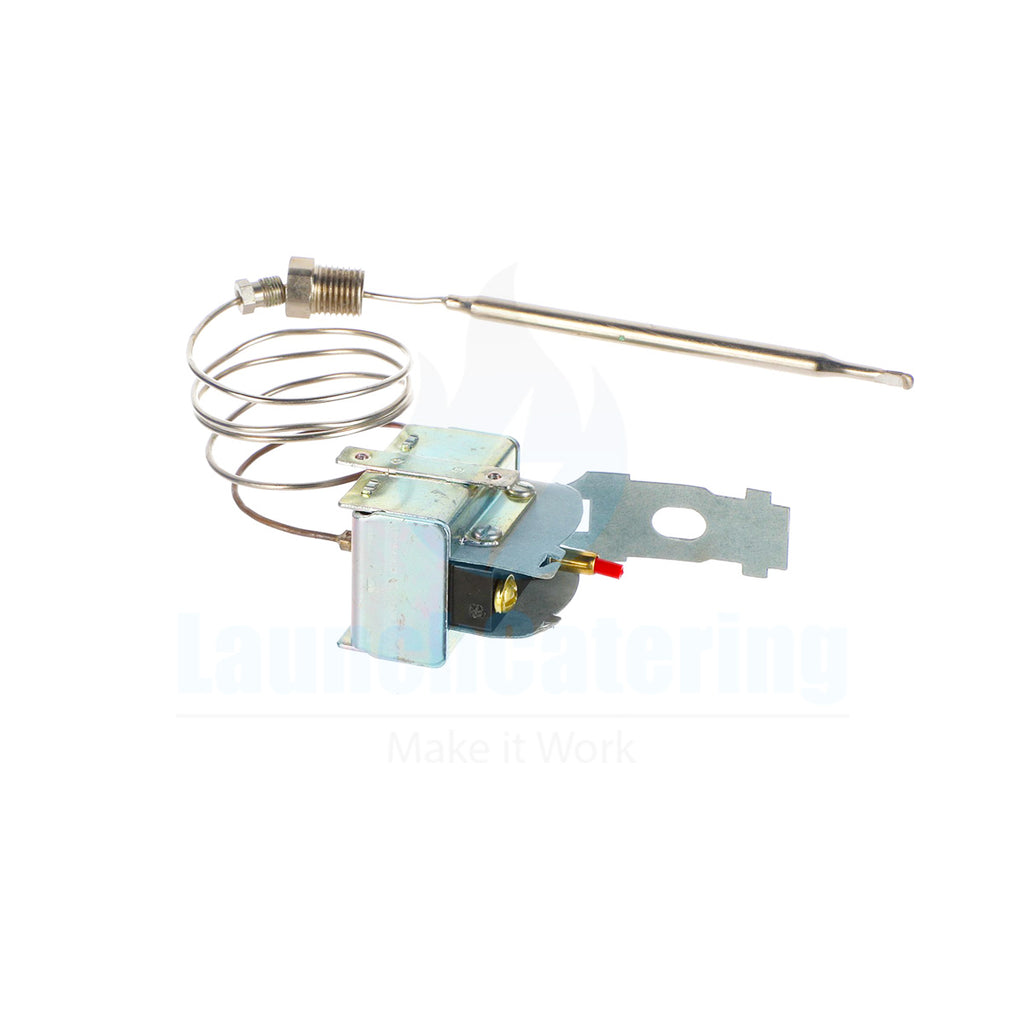

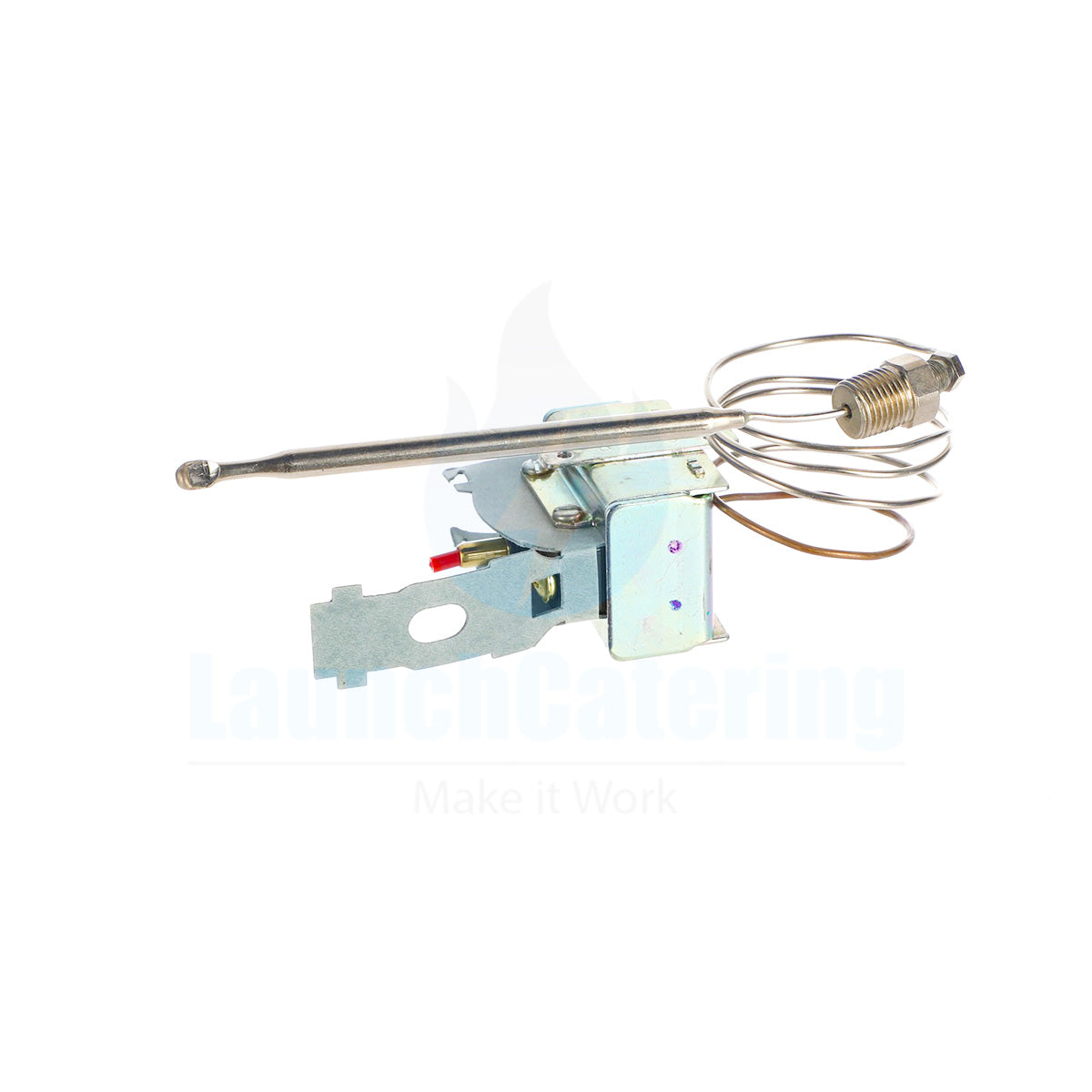

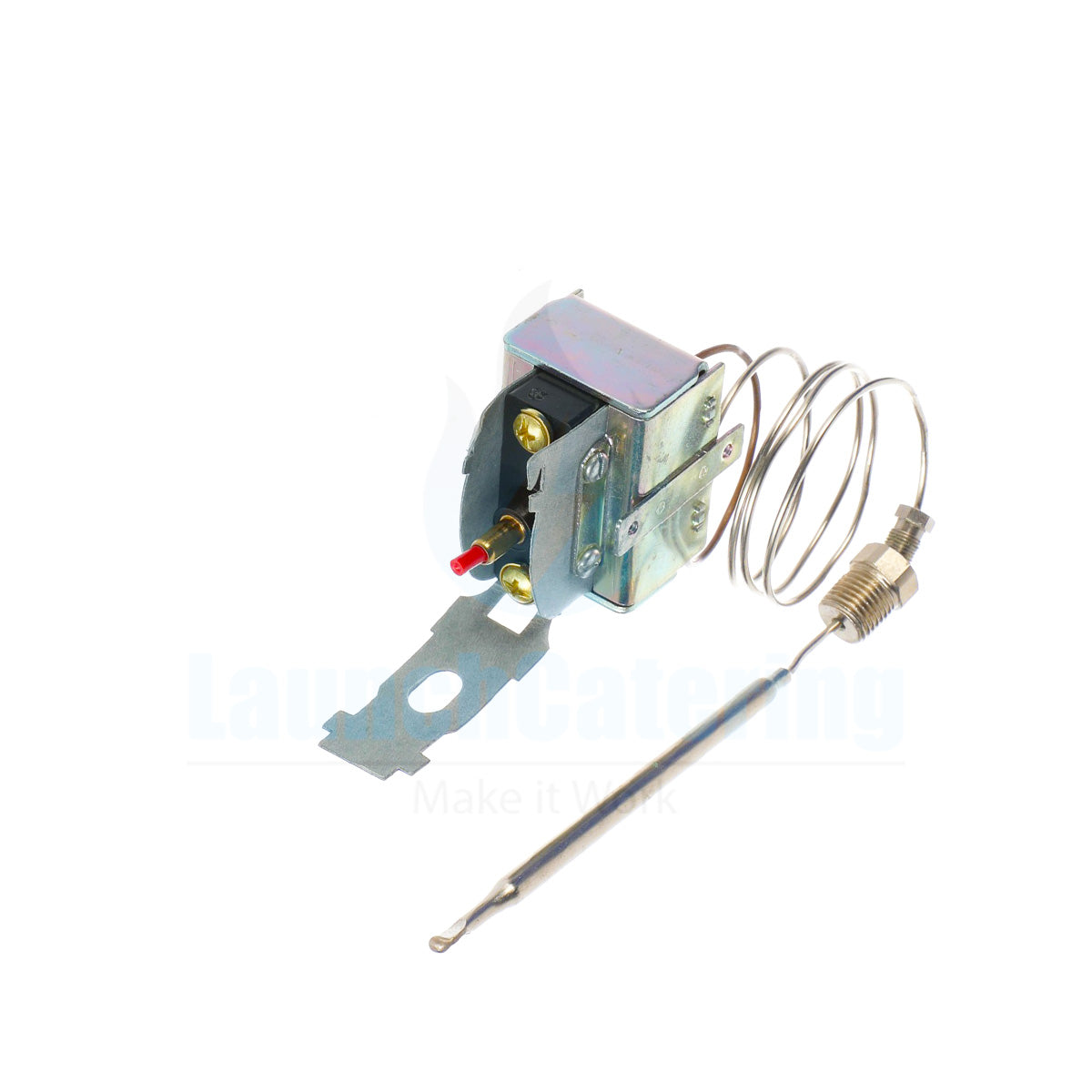

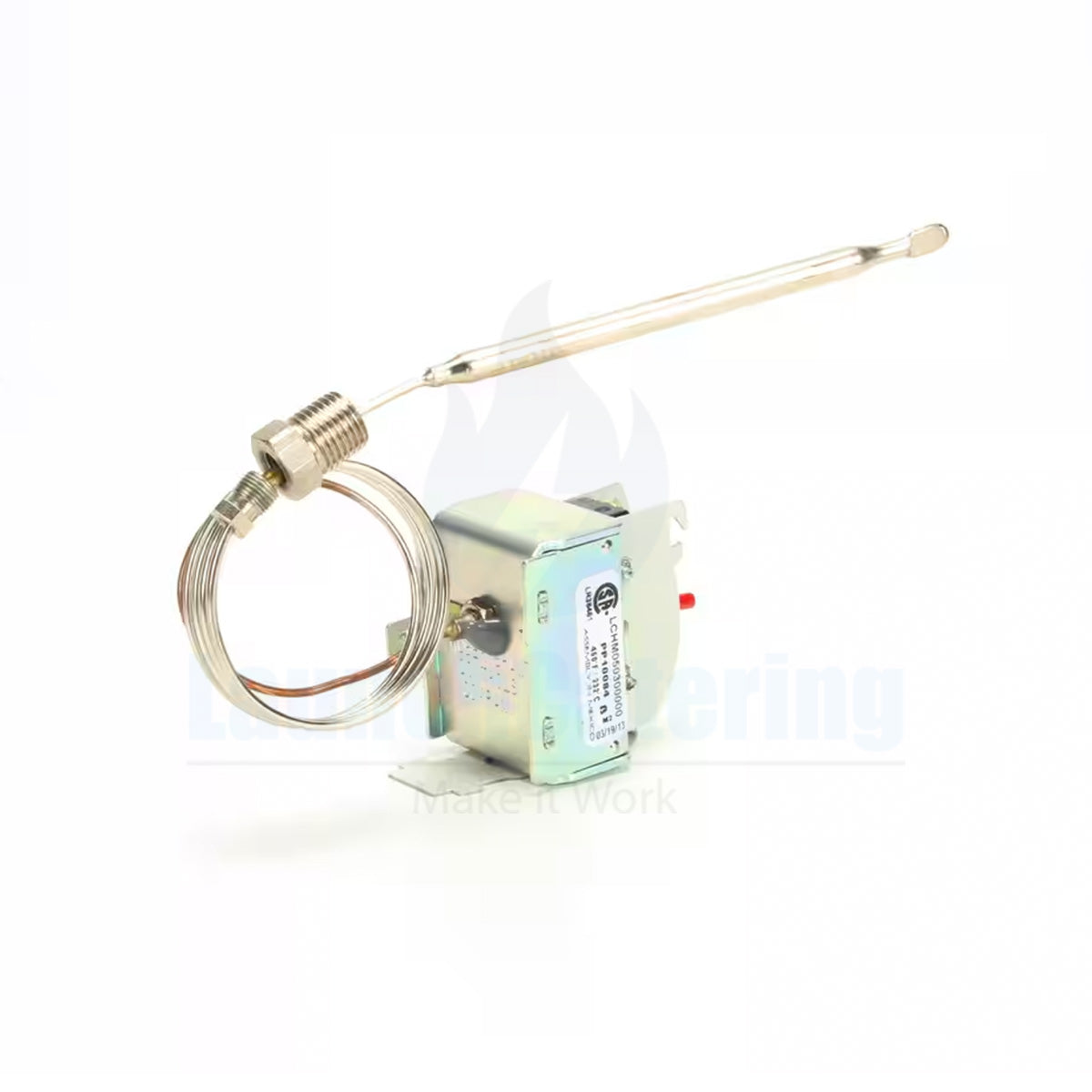

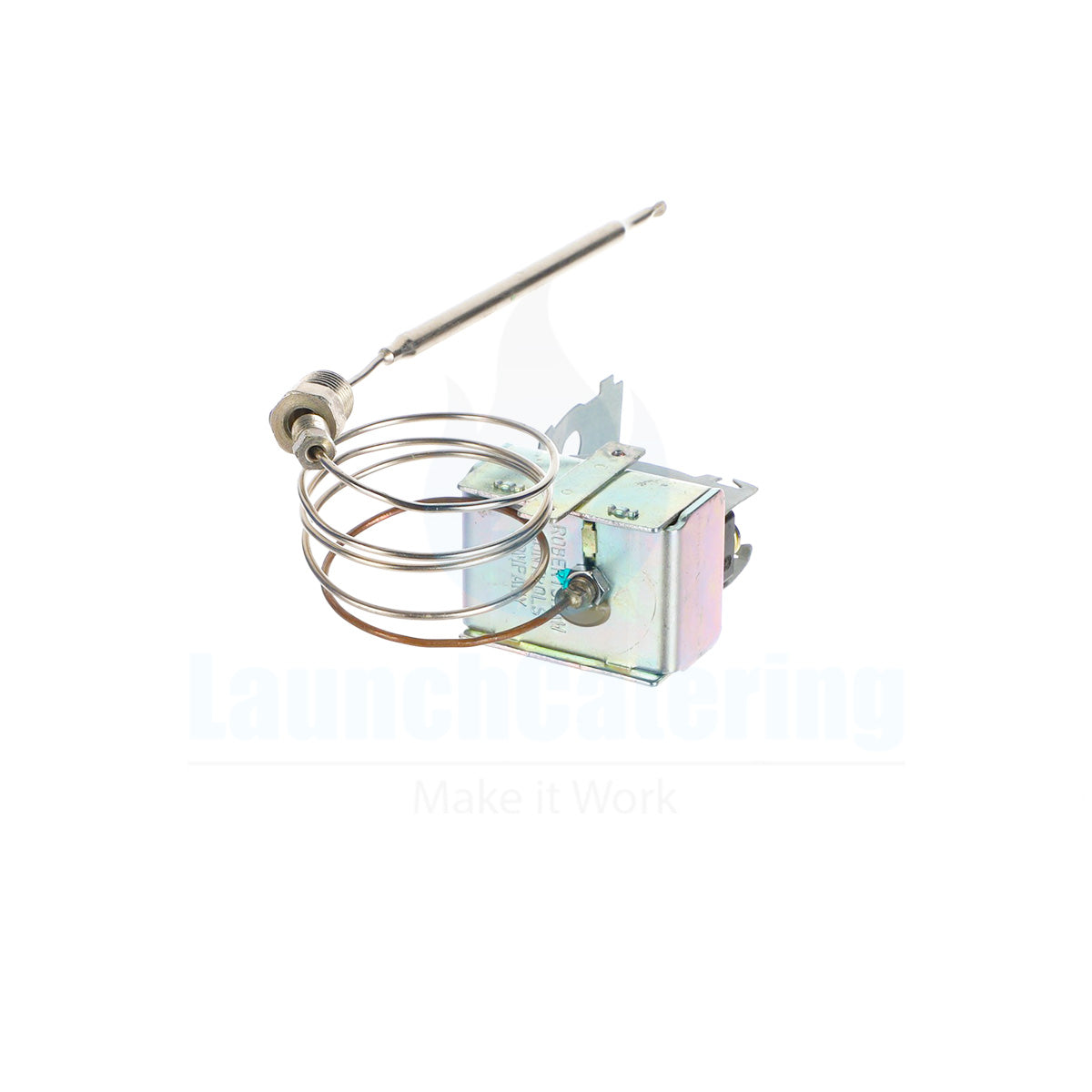

This high limit safety thermostat is a direct replacement for Pitco PP10084 and protects commercial gas fryers from dangerous overheating by cutting off the gas supply when oil reaches 232C (450F). It is a manual reset device - after a safety trip the engineer must press the reset button to restore operation, ensuring that the cause of the overheat is investigated before the fryer is restarted. The thermostat features a 6.4mm x 120mm stainless steel probe, 30 inch (762mm) capillary, 1/4 inch NPT stuffing gland, and 1 pole with 3 connections. It crosses to Robertshaw 5225-11B, Southbend 1199571, Anets PP10084, Frymaster 8073560, Imperial 32113 and MagiKitch'n 5047210 among others.

Technical Specifications

• Type: High limit safety thermostat with manual reset
• Switch-Off Temperature: 232C (450F) fixed
• Probe Diameter: 6.4mm
• Probe Length: 120mm
• Capillary Length: 30 inches (762mm)
• Tank Gland: 1/4 inch NPT
• Connections: 1 pole, 3 connections
• Pitco Part Number: PP10084 / P5047210
• Cross References: Robertshaw 5225-11B / LCHM0503000000, Southbend 1199571, Anets PP10084, Imperial 32113, Frymaster 8073560, Globe U03991290101, MagiKitch'n 5047210 / 10084, All Points 48-1006
• Condition: New

Compatible Equipment

This thermostat is compatible with the following commercial catering equipment:

• Pitco — SG14, SG14R, SG14S, SG14T, SG14TS, SG14RS, SG14RDI, SG14DI, SG14SD
• Pitco — SG18, SG18S, SG18F, SG18DI, SG18SD, SG18-JS
• Pitco — SSH55, SSH60, SSH75RS, SSHLV14, SSHLV184
• Pitco — VF35, VF65, MGII, 35C+, 45C+, 65C+, SGC, SGF18, SGH50, SGM24, SGM34, SGM1824
• Pitco — E500D, E400T, E400, 18S, 18, 18WKS, 24RUFM, SRTG14, RTG14, RTE14
• Pitco — SFSG14, SFSG14C-S, SFSG14R, SFSG14RS, SFSG14S, SFSG14T, SFSG14TS, SFSG18, SFSG18S
• Pitco — LJFBG18, LJFBG24, LJFBGD18, LJFBGD24, CKSSH55C, CKSSH60WC, BKSSH60W
• Southbend Range — 1199571 compatible models
• Anets — PP10084 compatible models
• Imperial — 32113 compatible models
• Frymaster — 8073560 compatible models
• MagiKitch'n — 5047210 / 10084 compatible models

Not sure if this fits your equipment? Contact us with your machine make, model and part number and we will confirm compatibility before you order.

Signs You Need To Replace This Part

• High limit trips during normal frying service and requires repeated resetting
• Oil overheats past 232C with no safety cut-out - thermostat has failed to operate
• Fryer will not heat at all after a previous trip and the reset button will not latch
• Probe shows corrosion, the capillary is damaged, or there is oil leaking from the stuffing gland
