20 Jet Gas Cooker Burner R8 8 Inch Cast Iron Brass Stock Pot Wok Indian Deep Pan NG LPG
Couldn't load pickup availability

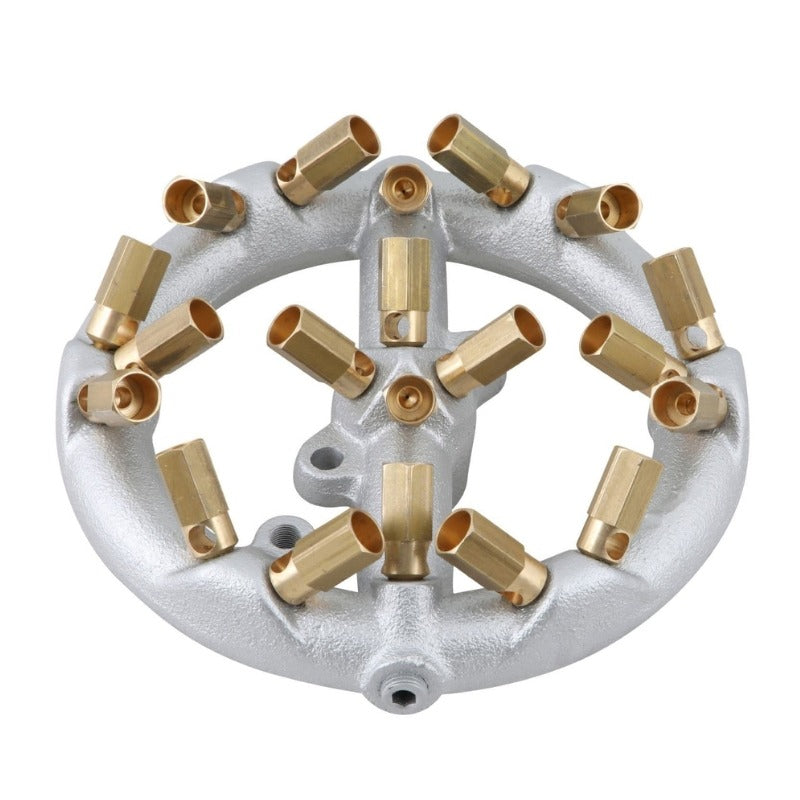

Cast-iron 20-jet commercial gas cooker burner (reference R8) with brass calibrated jets, available in Natural Gas and LPG. A bottom-entry replacement burner for commercial stock-pot cookers, Chinese wok cookers, deep-pan fryers and hot-plate ranges. Supplied new with a 8 inch burner diameter and a 3/4 or 1/2 inch BSP female main gas inlet.
Specifications
Technical Data
| Product Type | Multi-Jet Gas Cooker Burner |
| Part Reference | R8 |
| Number of Jets | 20 |
| Burner Diameter | 8 inch (205mm) |
| Material | Cast iron body with brass calibrated jets |
| Heat Output - Natural Gas | 100,000 - 142,000 BTU/h |
| Heat Output - LPG | 100,000 BTU/h |
| Bottom Gas Inlet | 3/4 or 1/2 inch BSP female |
| Side Gas Inlet | 1/4 inch BSP female |
| Gas Types Available | Natural Gas or LPG (select variant) |
| Compatible Equipment | Indian stock pot cookers, Chinese wok cookers, deep pan fryers, hot plate ranges, chip range boiling tables |
| Condition | New |
| Supplied Without | Gas hose, safety valve, regulator and connectors |
Matching and Cross-Reference
| Identifier | Reference |
|---|---|
| Size code | R8 |
| Jet count | 20 jets |
| Burner diameter | 8 inch (205mm) |
| Configuration | Flat multi-jet ring, bottom entry |
Compatible Equipment
| Equipment Type | Application | Fitment Note |
|---|---|---|
| Stock-pot cooker | Indian / Asian catering | Bottom-entry burner well |
| Chinese wok cooker | Chinese catering | Flat ring for even base heat |
| Deep-pan fryer / hot plate | General commercial | Even heat over a large base |
| Industrial heating | Lead melting / degreasing | High-output flat-ring burner |
Gas Type Specification
| Gas Type | Heat Output | Typical UK Supply Pressure |
|---|---|---|
| Natural Gas | 100,000 - 142,000 BTU/h | 20 mbar |
| LPG | 100,000 BTU/h | 37 mbar |
Installation must be carried out by a Gas Safe registered engineer.
What Is Included
- 1 x cast-iron multi-jet gas cooker burner (R8)
- 20 brass calibrated jets pre-fitted for the chosen gas type
- Side gas inlet(s) supplied plugged
Not included: gas hose, gas safety / flame-failure valve, pressure regulator, pipe connectors and pilot assembly.
Frequently Asked Questions
Will this burner fit my stock pot or wok cooker?
This is a universal bottom-entry replacement burner used across commercial stock-pot cookers, Chinese wok cookers, deep-pan fryers and hot-plate ranges. Match it by jet count (20 jets), burner diameter (8 inch) and the gas inlet thread (3/4 or 1/2 inch BSP female bottom entry). If your existing burner shares those, the R8 will fit.
How do I know if I need the R11, R8 or R6?
Choose by burner diameter and output: R11 is 11 inch with 32 jets for the highest output, R8 is 8 inch with 20 jets, and R6 is 5.75 inch with 10 jets for smaller pots and boiling rings. Measure the burner you are replacing and match the diameter and jet count.
Do I need the Natural Gas or LPG version?
Select Natural Gas if your site is on mains gas (typically 20 mbar) or LPG if you run on bottled or bulk propane (typically 37 mbar). The jets are calibrated to the gas type, so order the variant that matches your supply. A Gas Safe registered engineer can confirm your gas type.
What is included and what are the gas inlet sizes?
You receive the cast-iron burner with 20 brass jets pre-fitted for your chosen gas type. The main gas inlet is 3/4 or 1/2 inch BSP female (bottom entry) with a 1/4 inch BSP female side inlet supplied plugged. Gas hose, valve, regulator and connectors are not included.
Is it safe to use and who should install it?
The burner is a gas system component and must be installed and commissioned by a Gas Safe registered engineer, who will set the correct pressure and check for leaks. Fitted and commissioned correctly, it provides stable, even heat for commercial cooking.
Why LaunchCatering
LaunchCatering is a UK-based specialist in commercial catering spare parts. We hold this burner in UK stock and describe every listing by jet count, diameter and gas inlet so you can confirm the correct fit before ordering. If you are unsure which size or gas type you need, send us your measurements and we will help you match the right burner.
The R8 is a 20-jet cast-iron commercial gas cooker burner with brass calibrated jets, 8 inch in diameter, available in Natural Gas (100,000 - 142,000 BTU/h) and LPG (100,000 BTU/h) versions. It is a bottom-entry replacement burner for commercial stock-pot cookers, Chinese wok cookers, deep-pan fryers and hot-plate ranges, with a 3/4 or 1/2 inch BSP female main inlet and a 1/4 inch BSP female side inlet. Supplied new from UK stock by LaunchCatering; installation by a Gas Safe registered engineer is required.
No technical specifications available for this product.
