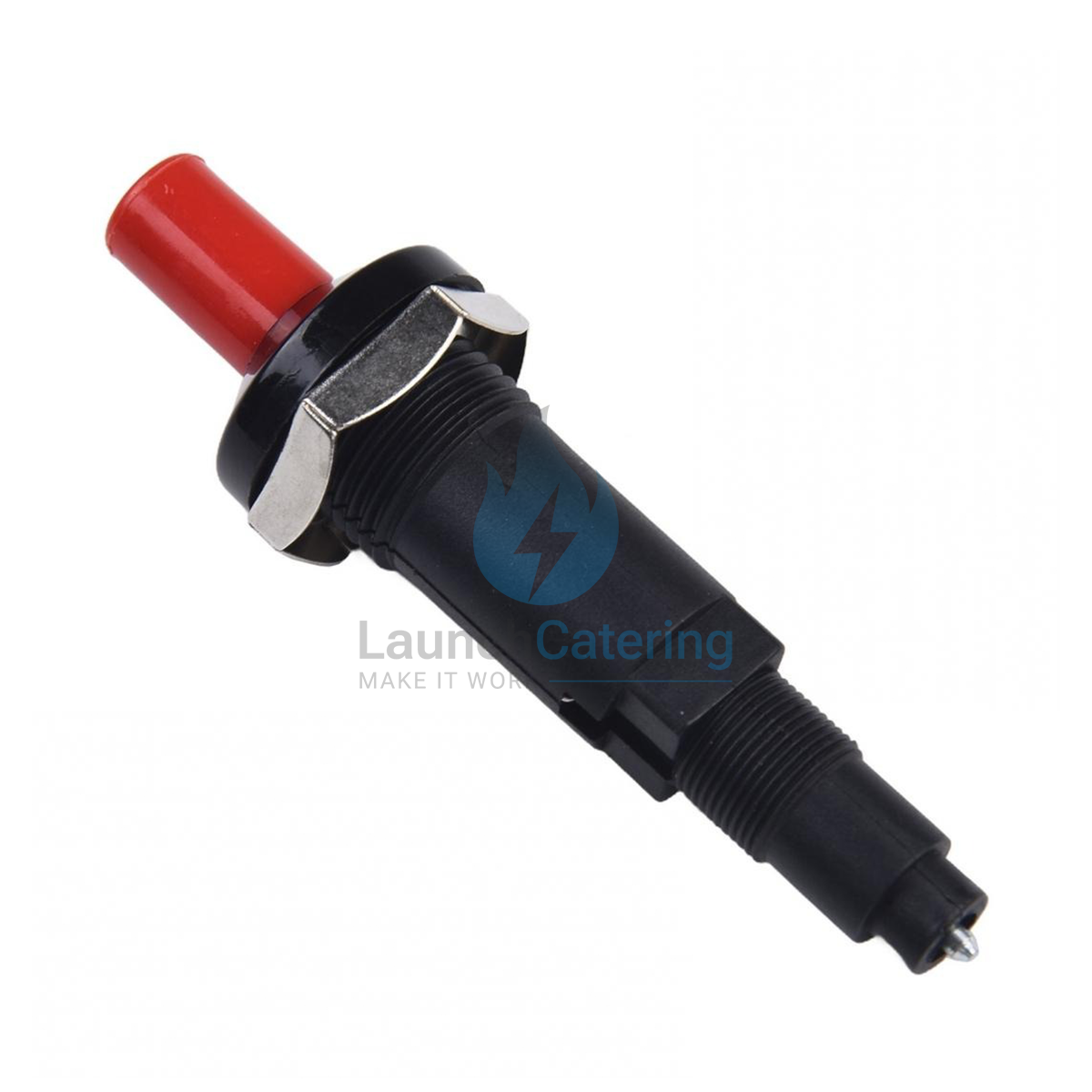

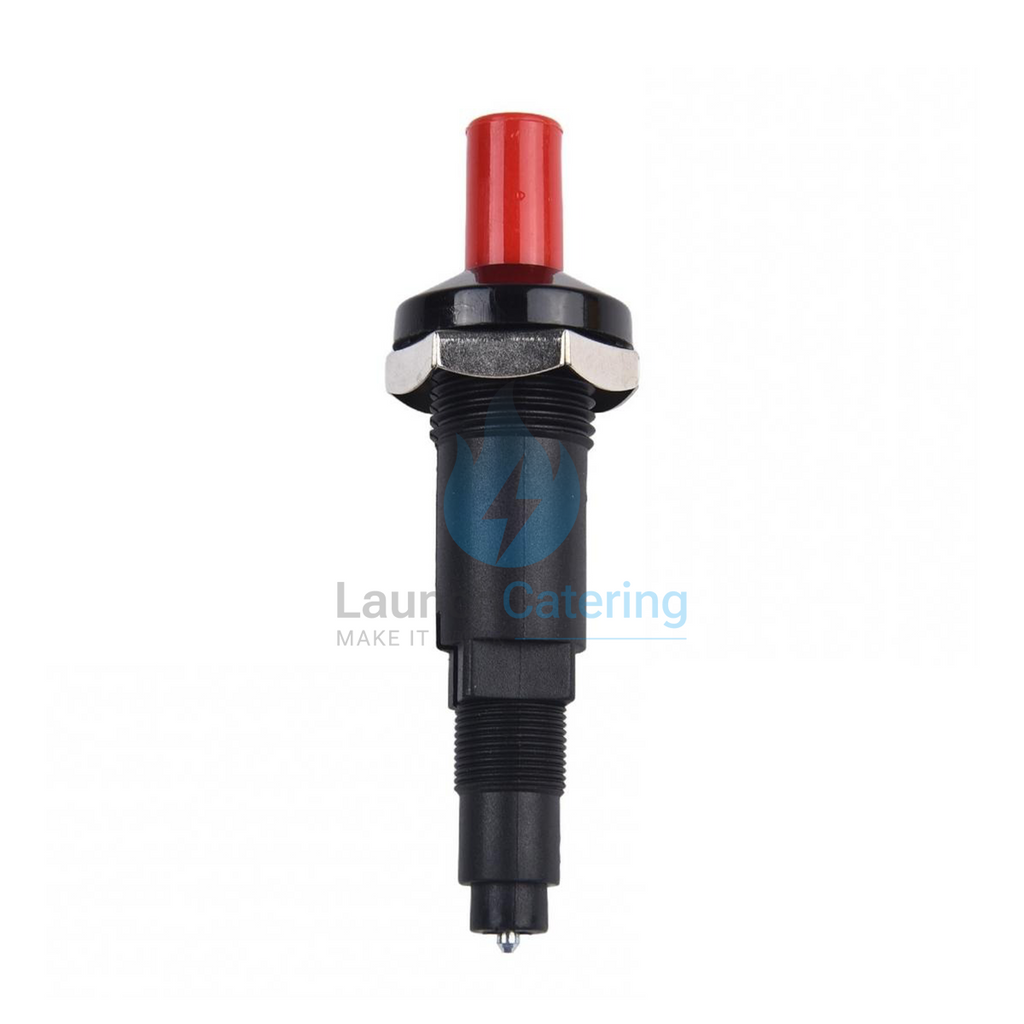

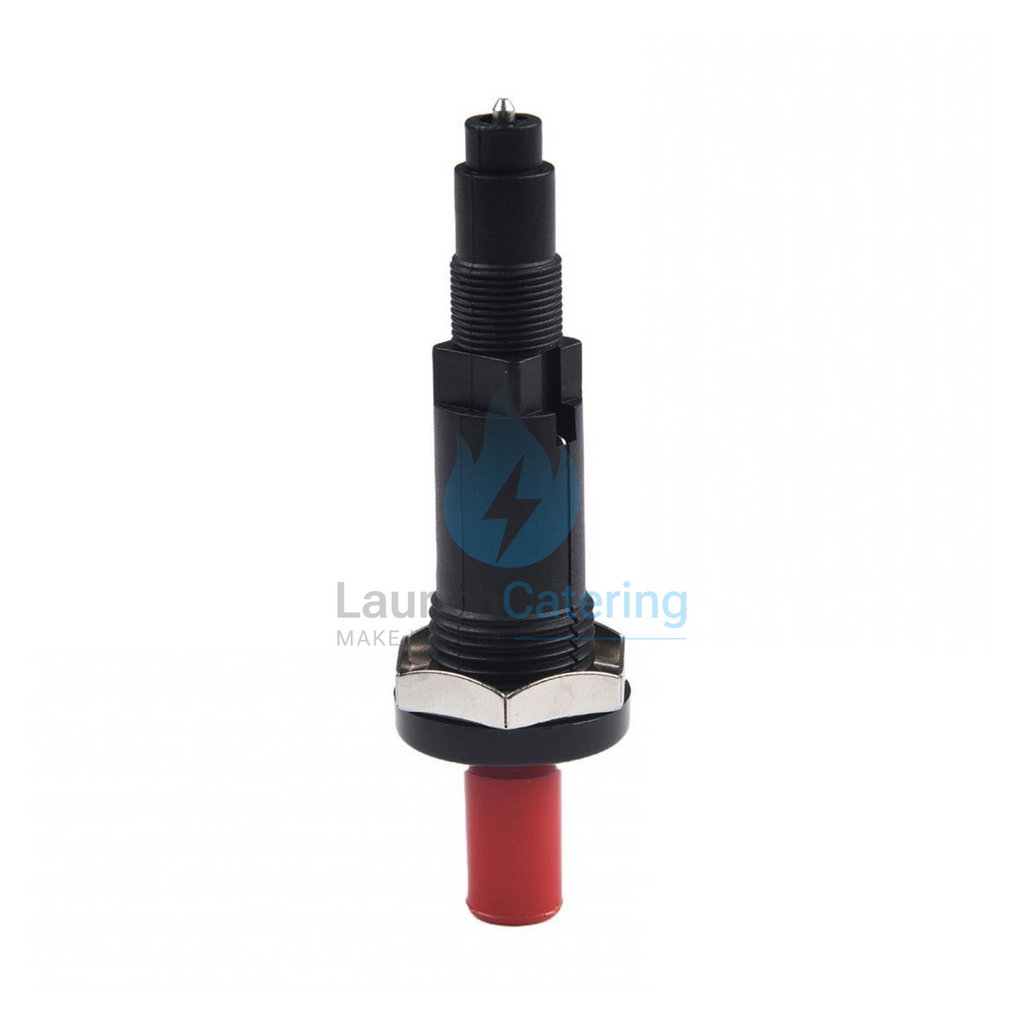

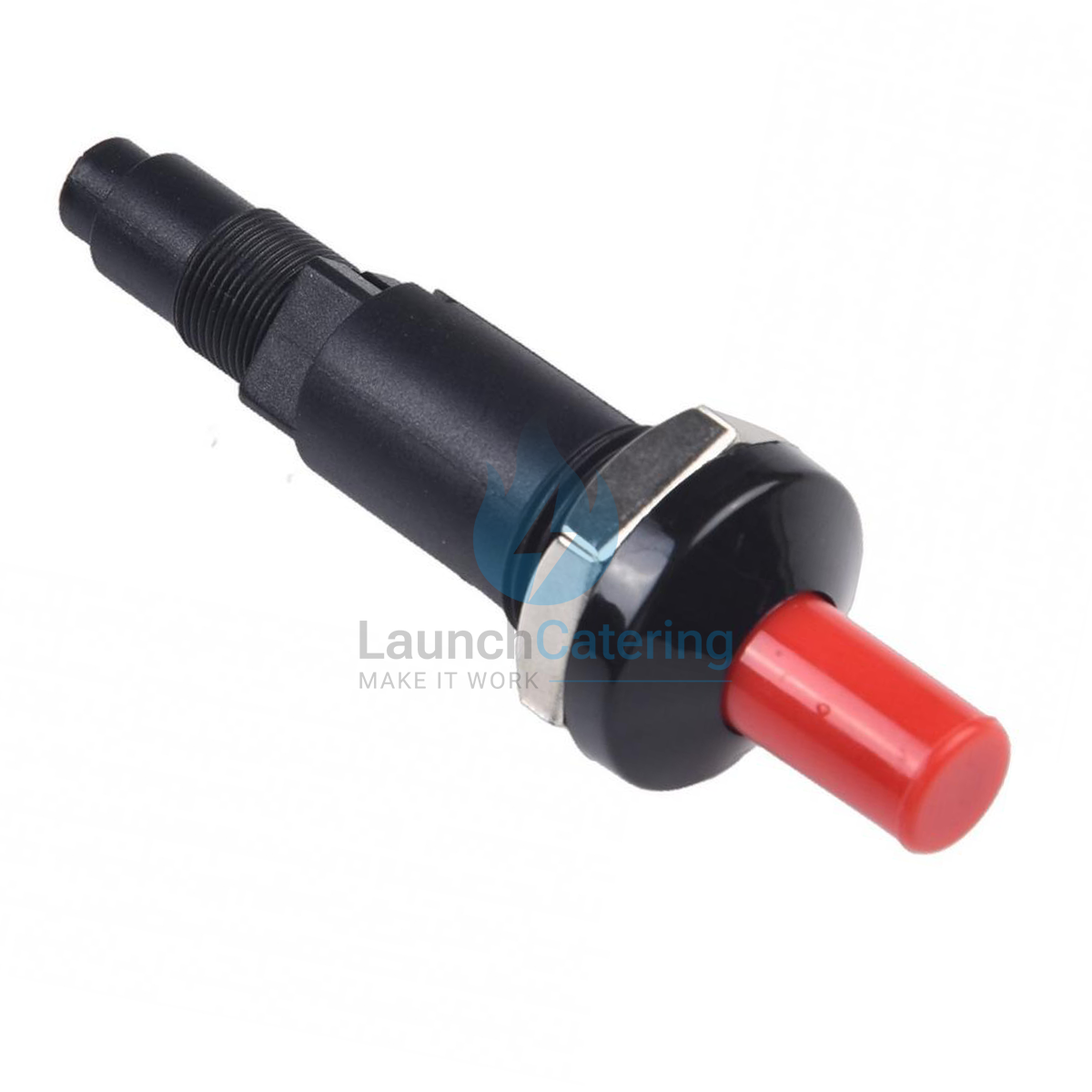

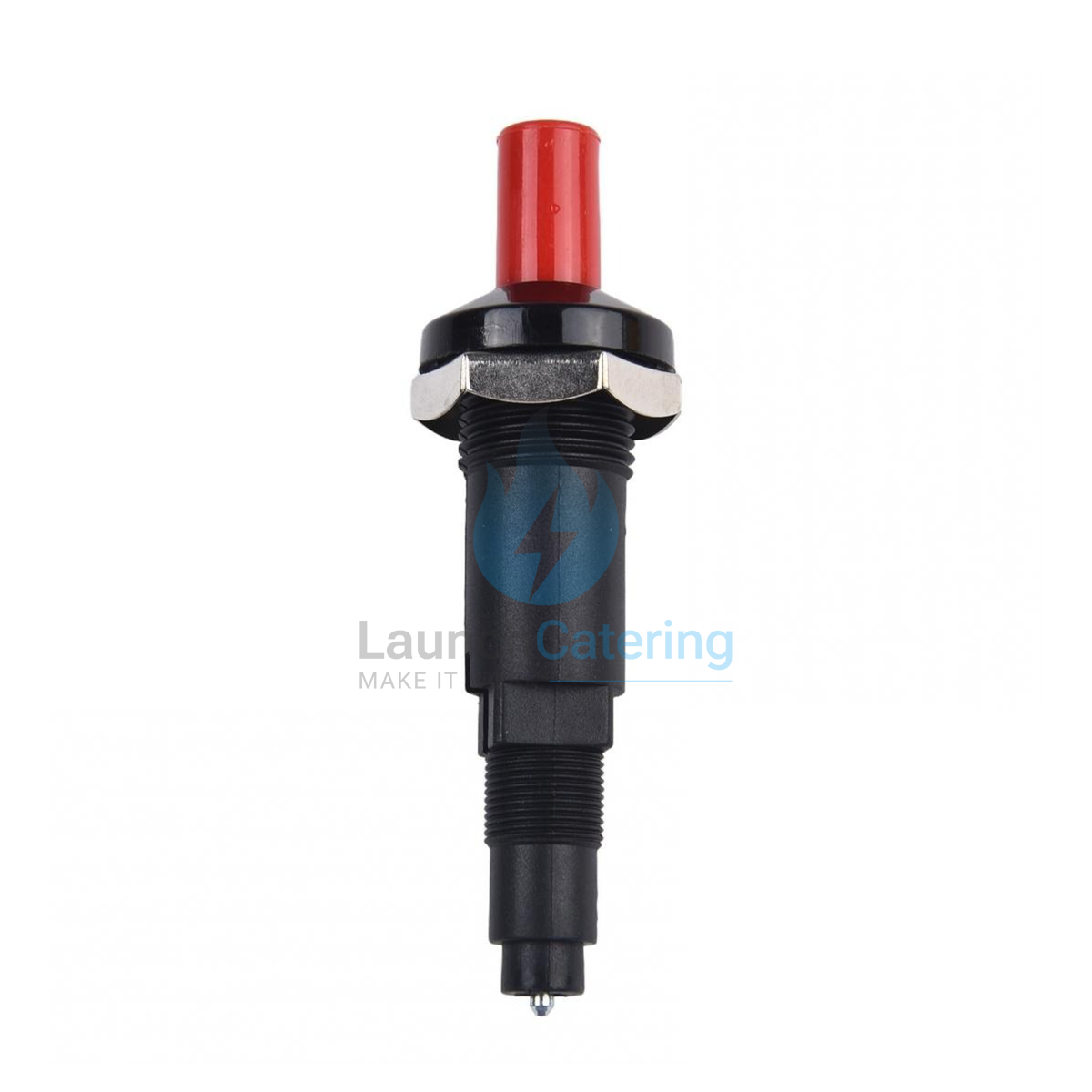

Piezo Igniter 18mm Single 2.4mm Round Bullet Connection for Commercial Gas Equipment
Piezo Igniter 18mm Single 2.4mm Round Bullet Connection for Commercial Gas Equipment
Product Overview
This 18mm push-button piezo igniter with a single 2.4mm round bullet connection is the compact ignition unit for commercial gas appliances using an 18mm panel cutout and bullet-type HT lead connection. It operates on the same principle as larger piezo igniters — pressing the button compresses the internal piezoelectric crystal to generate a high-voltage pulse, which travels through the HT lead to the spark electrode and produces the spark for ignition. The 18mm body is the appropriate choice where the control panel aperture measures 18mm, distinguishing it from the 22mm version used in the majority of commercial gas catering equipment.
Technical Specifications
- Type: Push-button piezo igniter
- Mounting Diameter: 18mm
- Connection: 2.4mm round bullet terminal, single outlet
- Total Length: 77mm
- Body Length: 64mm
- Body Diameter: 16mm
- Button Length: 13mm
- Button Diameter: 12mm
- Power: Self-generating piezoelectric, no external power required
- Condition: New
Compatible Equipment
Compatible with commercial gas catering equipment featuring an 18mm panel-mount igniter position and 2.4mm bullet HT lead, including:
- Lincat — Gas equipment models with 18mm igniter apertures
- Falcon — Gas appliances with compact 18mm ignition panels
- Blue Seal — Gas equipment accepting 18mm bullet-type piezo igniters
- Any commercial gas appliance with an 18mm panel cutout and 2.4mm bullet HT connection
Not sure if this fits your equipment? Contact us with your machine make, model and part number and we will confirm compatibility before you order.
Signs You Need To Replace This Part
- No audible click when ignition button is pressed
- Click present but no spark at burner electrode
- Button is mechanically broken or will not depress properly
- Bullet terminal is corroded or connection to HT lead is unreliable
