Product Overview

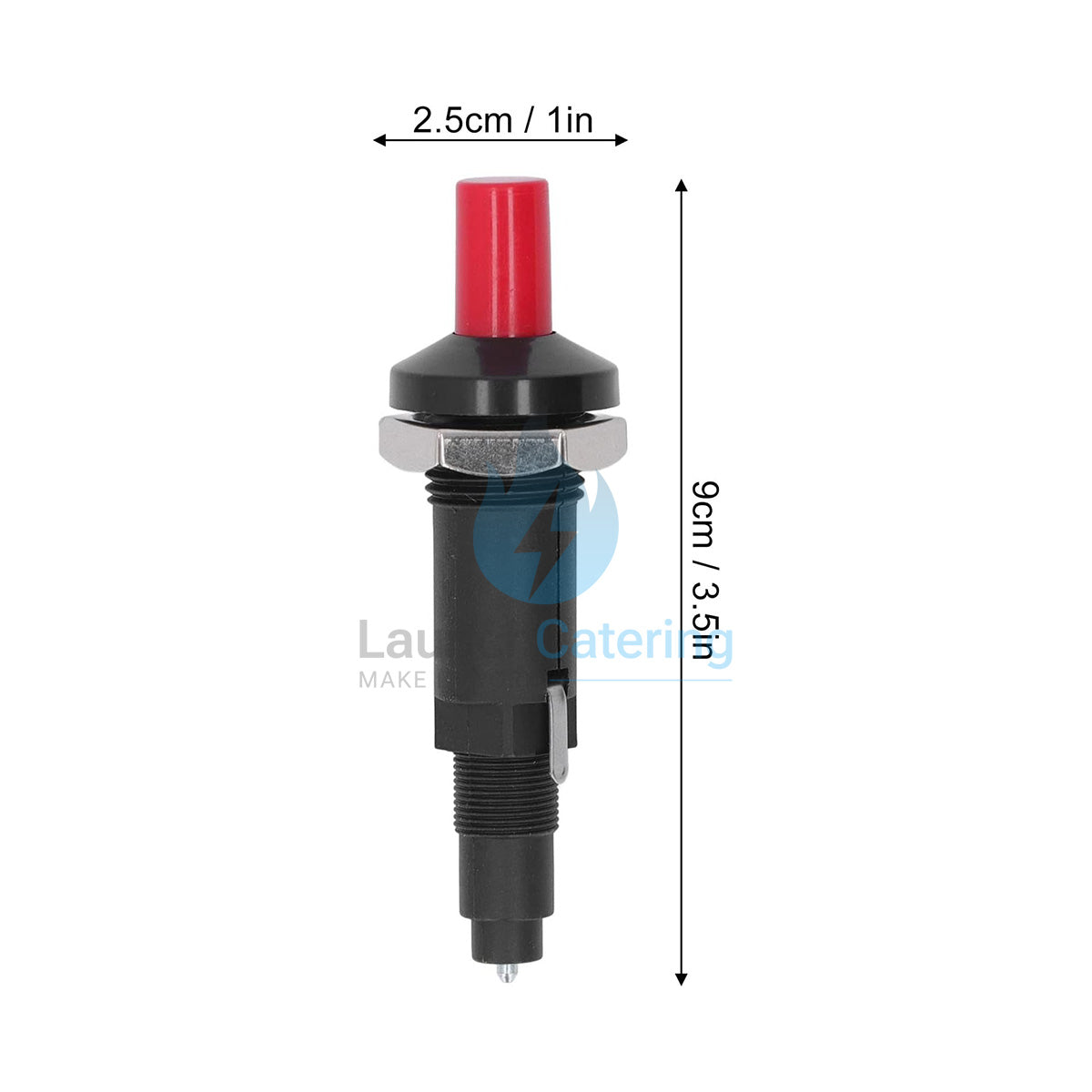

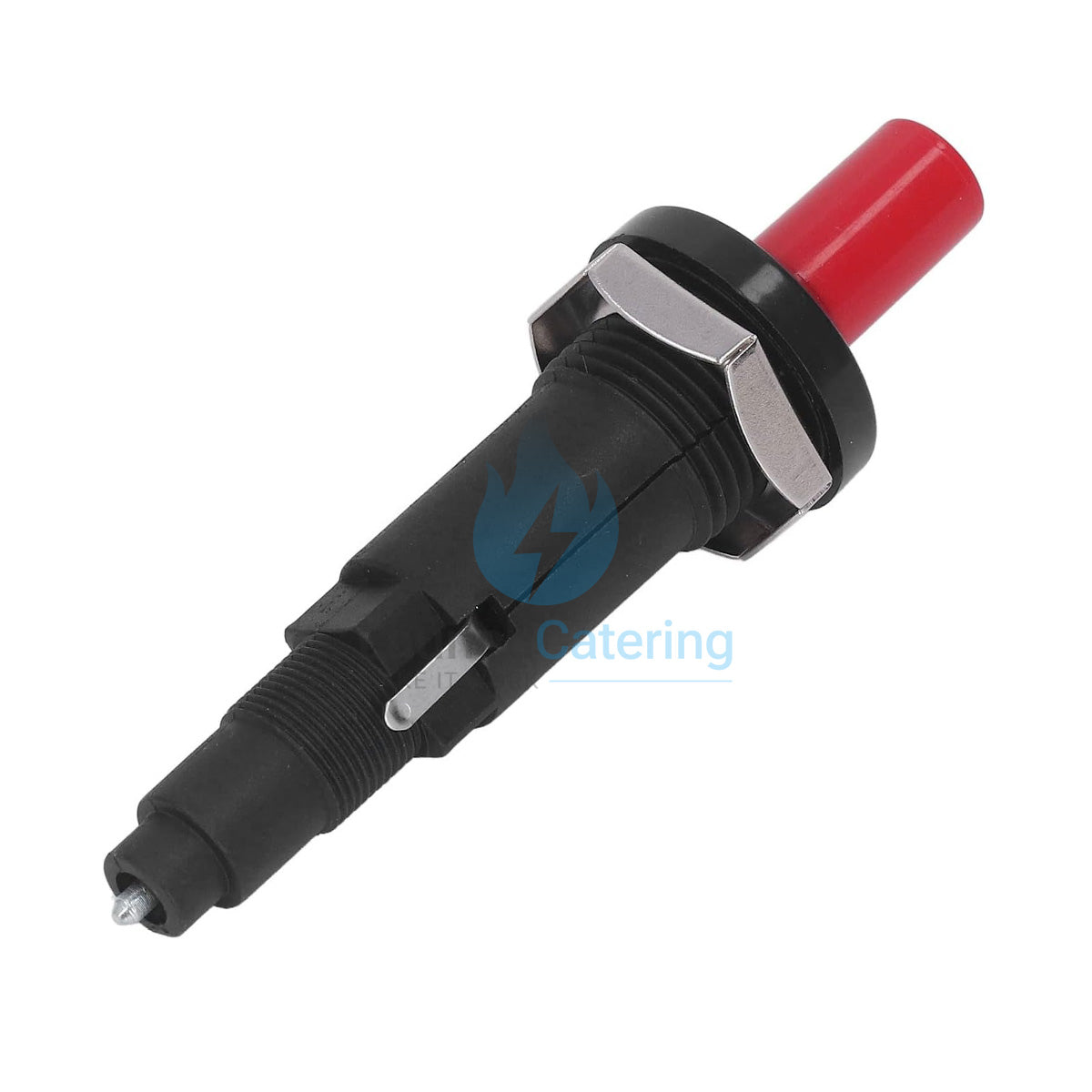

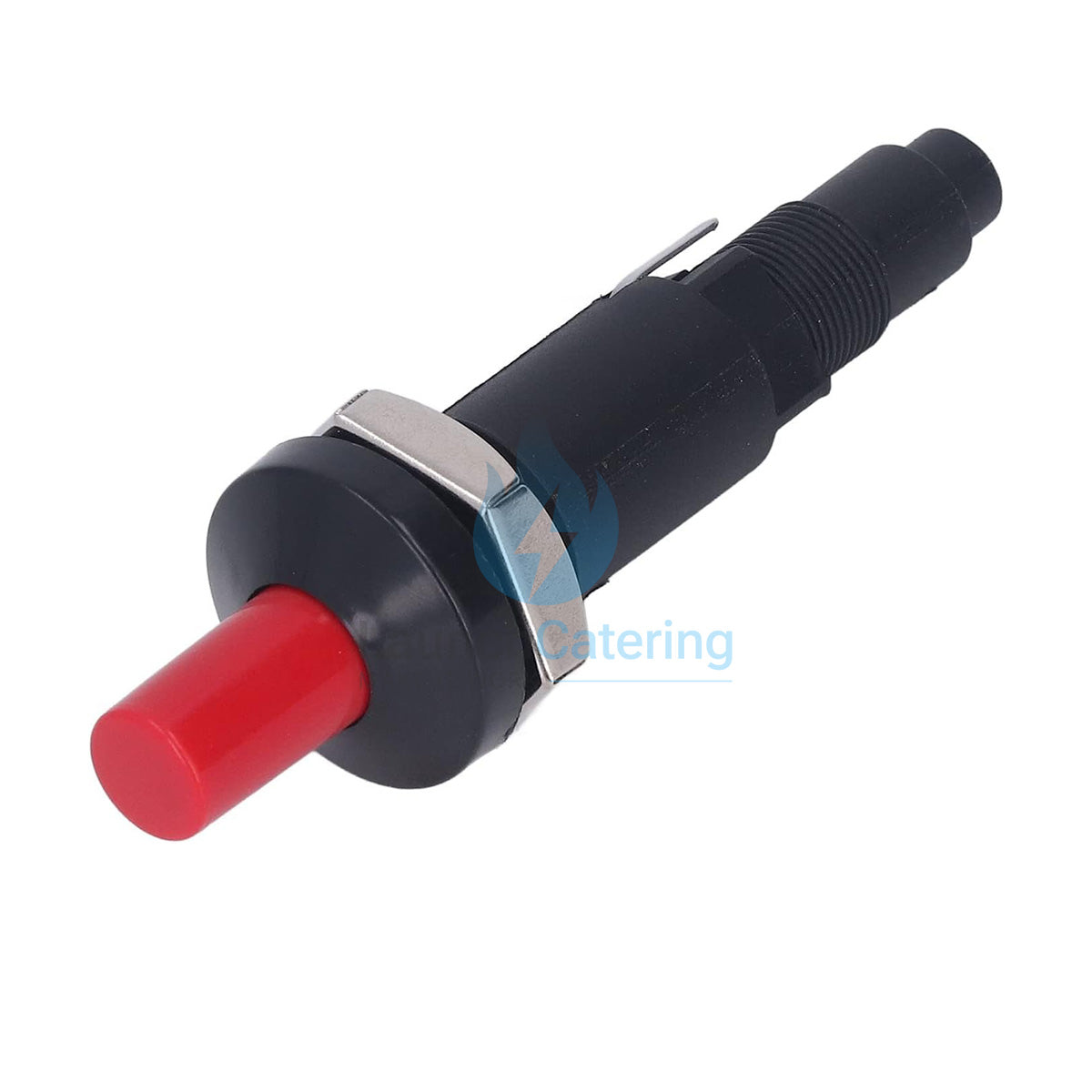

This 18mm push-button piezo igniter combines a 2.4mm round bullet connector as the primary outlet with an additional flat side terminal, giving engineers two connection options in one unit. The dual-connection design is particularly useful for replacement work where the original igniter connection type is uncertain, or where the installation requires flexibility between bullet and flat spade HT leads. The 18mm mounting diameter fits the smaller of the two standard commercial gas igniter panel sizes. No external power is needed — the piezo crystal generates the ignition pulse from the force of the button press alone.

Technical Specifications

• Type: Push-button piezo igniter
• Mounting Diameter: 18mm
• Primary Connector: 2.4mm bullet terminal
• Secondary Connector: Flat side terminal
• Total Length: 77mm
• Body Length: 64mm
• Body Diameter: 16mm
• Button Length: 13mm
• Button Diameter: 12mm
• Power: Self-generating piezoelectric, no external power required
• Condition: New

Compatible Equipment

Suitable for commercial gas catering equipment with an 18mm panel cutout and HT leads using either bullet or flat spade connectors, including:

• Lincat — Gas equipment with 18mm igniter panels and bullet or flat HT connections
• Falcon — Gas appliances with smaller panel formats
• Blue Seal — Gas equipment accepting 2.4mm bullet or flat spade igniter connections
• Any commercial gas appliance with an 18mm panel cutout and dual-connection HT lead

Not sure if this fits your equipment? Contact us with your machine make, model and part number and we will confirm compatibility before you order.

Signs You Need To Replace This Part

• No click or spark when button is pressed
• Spark output is too weak for reliable ignition
• Button is physically damaged or non-functional
• Connection terminals are corroded or intermittent
