Product Overview

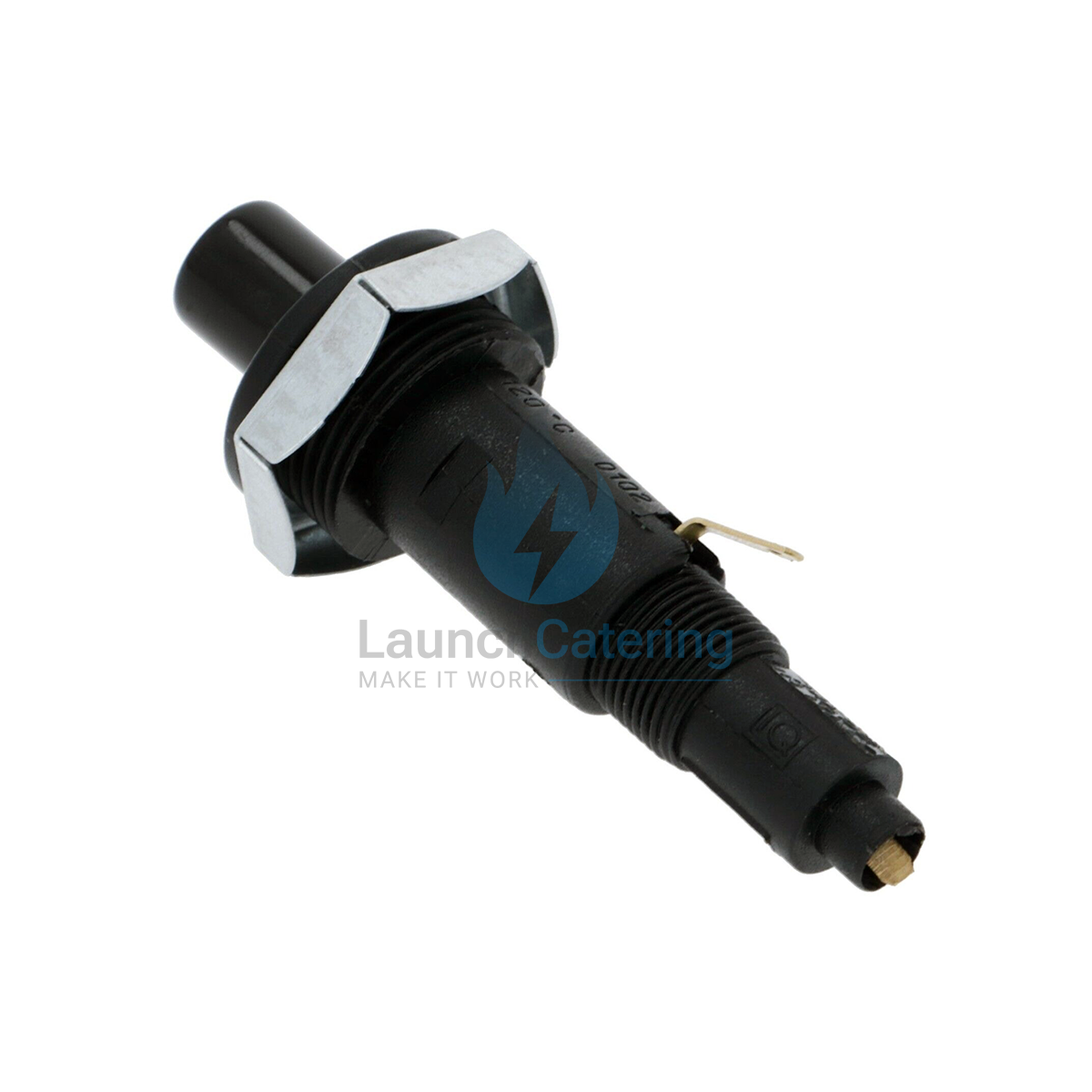

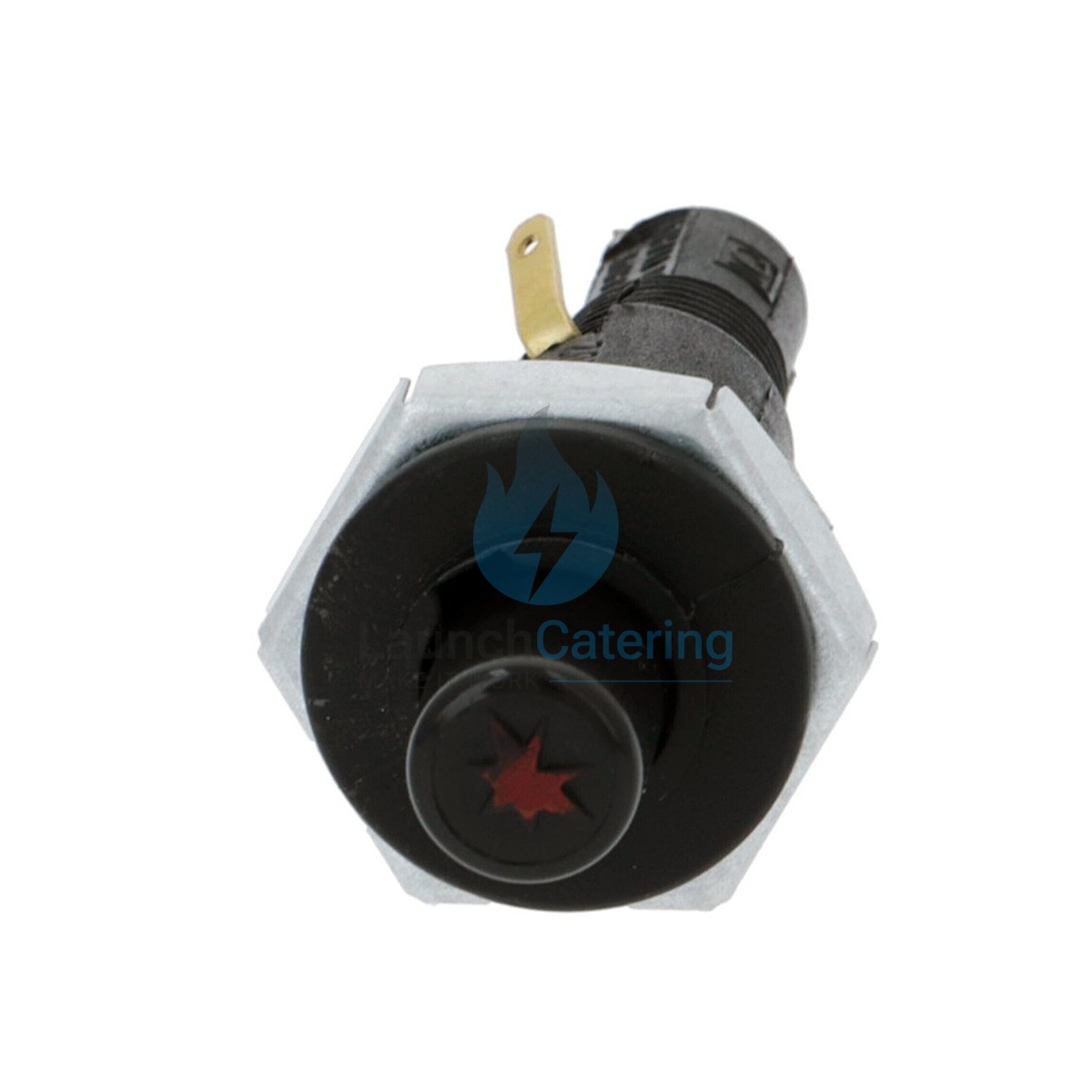

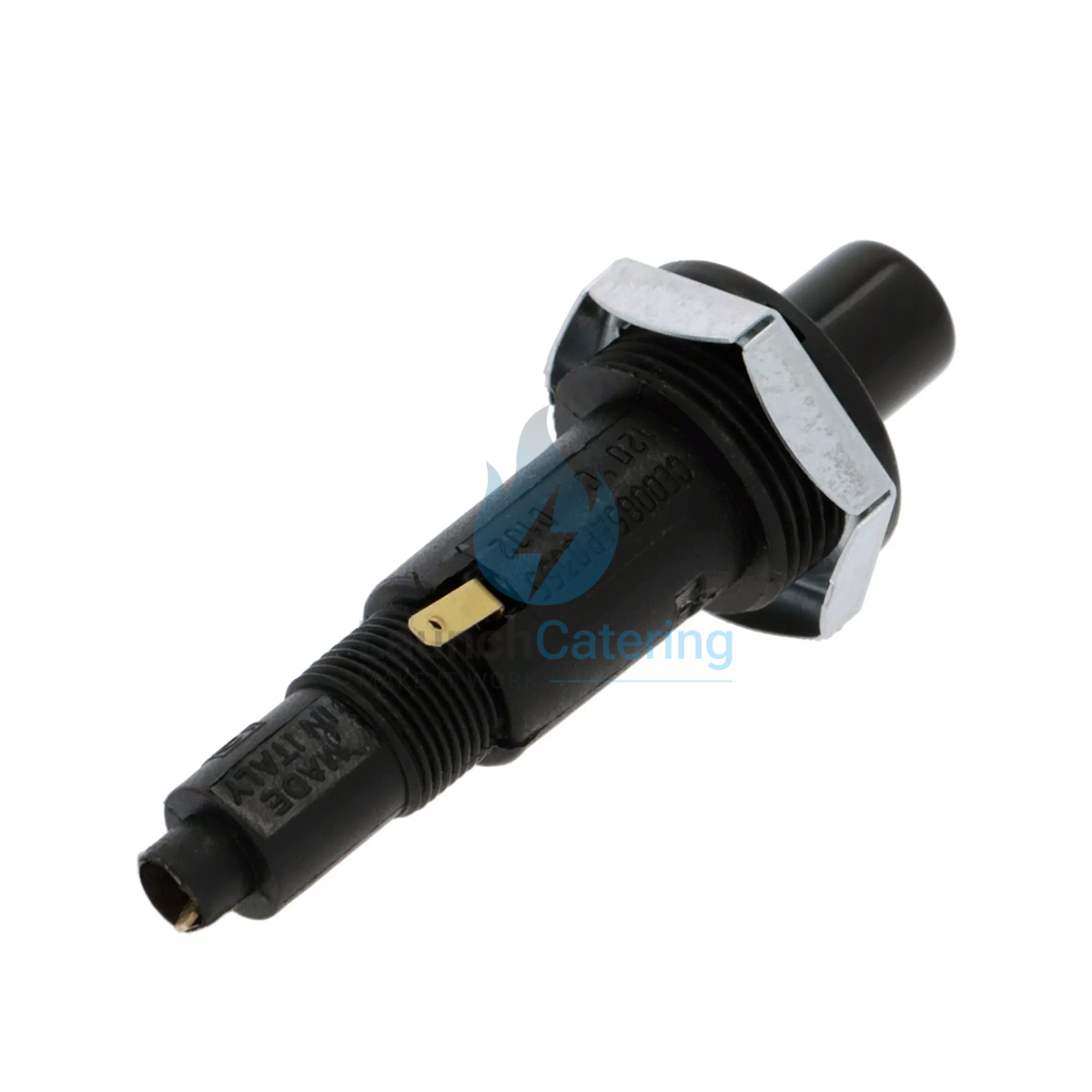

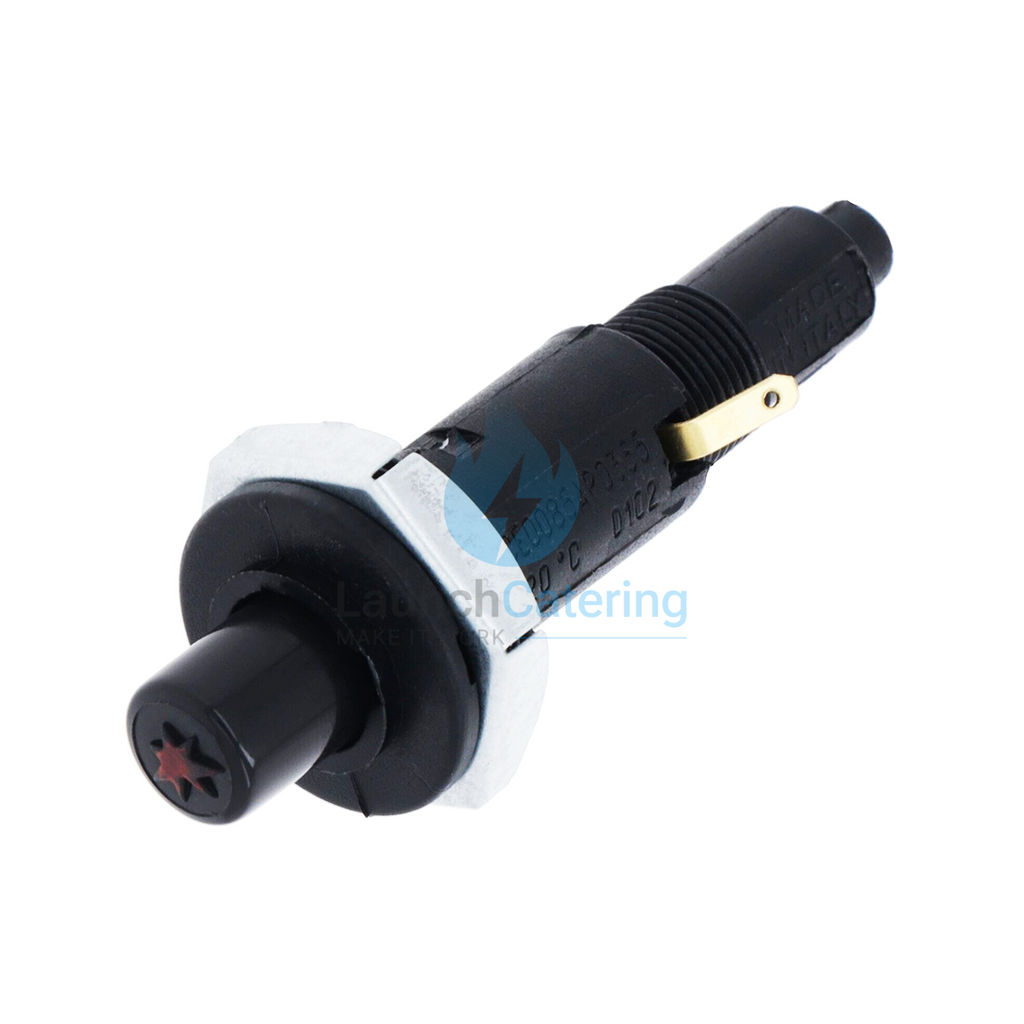

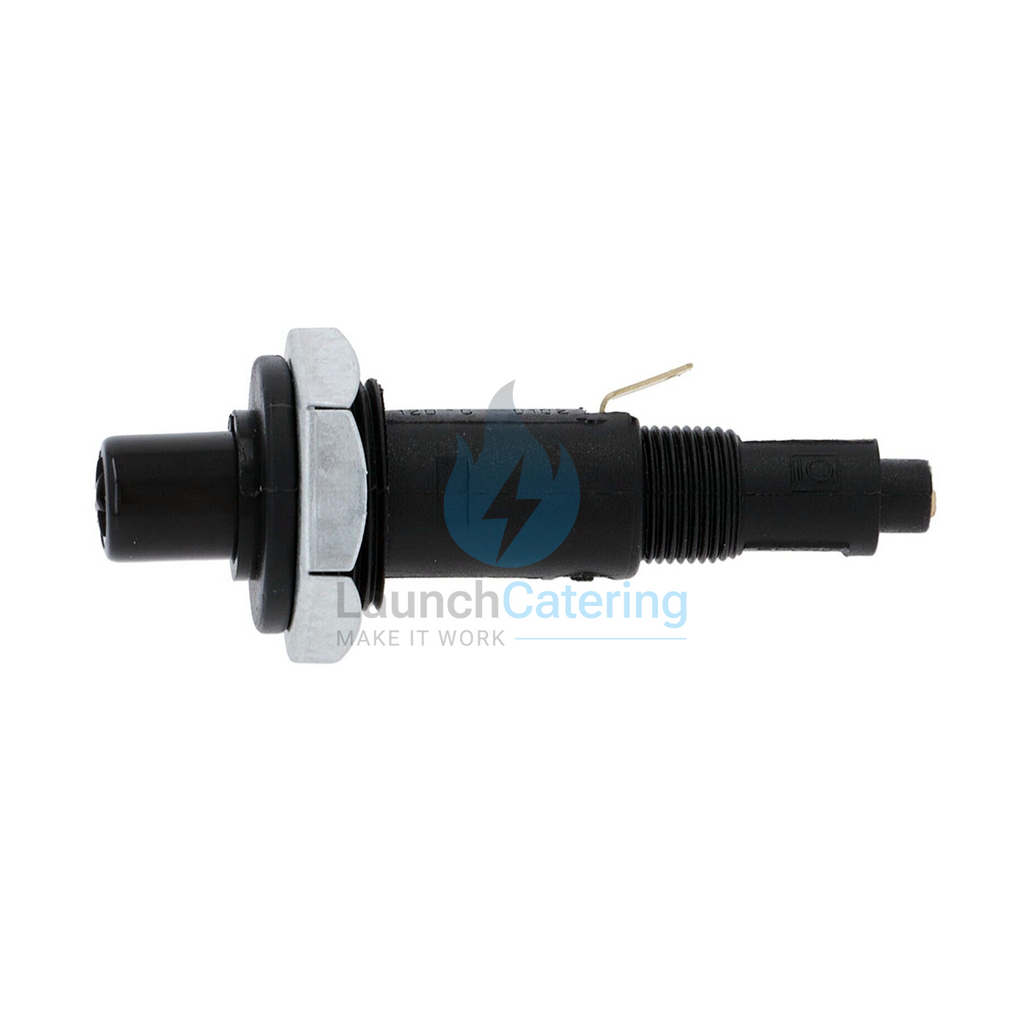

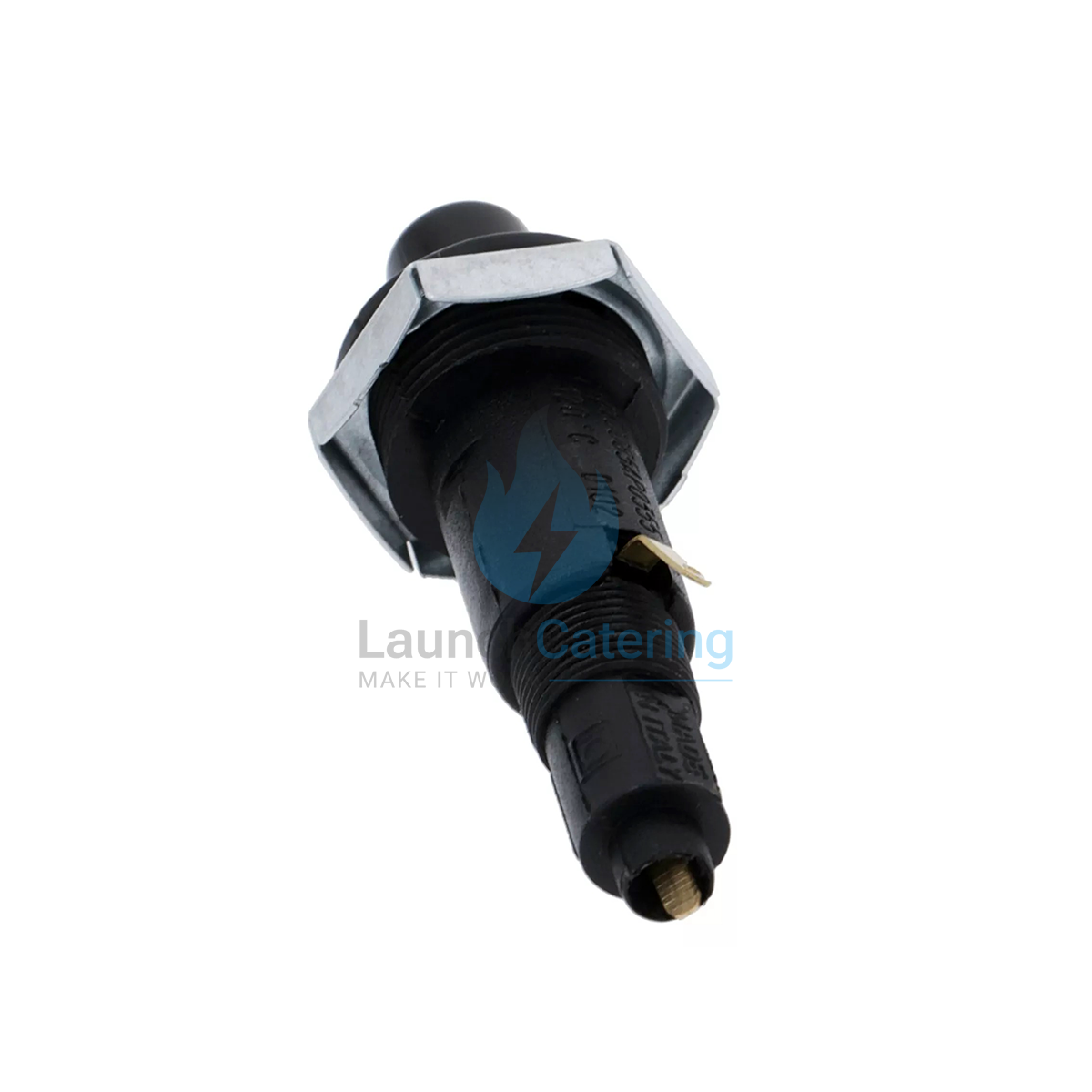

This push-button piezo igniter uses an 18mm mounting diameter, making it the correct choice for commercial gas catering equipment with a smaller panel cutout than the standard 22mm size. The two-outlet 2.8mm flat spade connection configuration allows this igniter to simultaneously drive two spark electrodes from a single button press, suitable for dual-burner gas appliances. Like all piezo igniters, it operates without any external power supply — the mechanical energy of pressing the button is converted directly into the high-voltage spark pulse by the internal piezoelectric crystal.

Technical Specifications

• Type: Push-button piezo igniter
• Mounting Diameter: 18mm
• Outlets: 2 x flat spade (2.8mm)
• Total Length: 77mm
• Body Length: 64mm
• Body Diameter: 16mm
• Button Length: 13mm
• Button Diameter: 12mm
• Power: Self-generating piezoelectric, no external power required
• Condition: New

Compatible Equipment

Compatible with commercial gas catering equipment using an 18mm panel-mount piezo igniter with dual 2.8mm flat spade HT connections, including:

• Lincat — Gas ranges and dual-burner equipment with 18mm igniter panels
• Falcon — Gas equipment with smaller-format ignition control panels
• Blue Seal — Gas appliances specifying 18mm dual-outlet ignition
• Any commercial gas appliance with an 18mm cutout and two 2.8mm flat spade HT connections

Not sure if this fits your equipment? Contact us with your machine make, model and part number and we will confirm compatibility before you order.

Signs You Need To Replace This Part

• No click when ignition button is pressed
• One or both burners fail to spark when button is pressed
• Button is mechanically damaged or non-responsive
• Spade terminals are corroded or connections are intermittent
