Product Overview

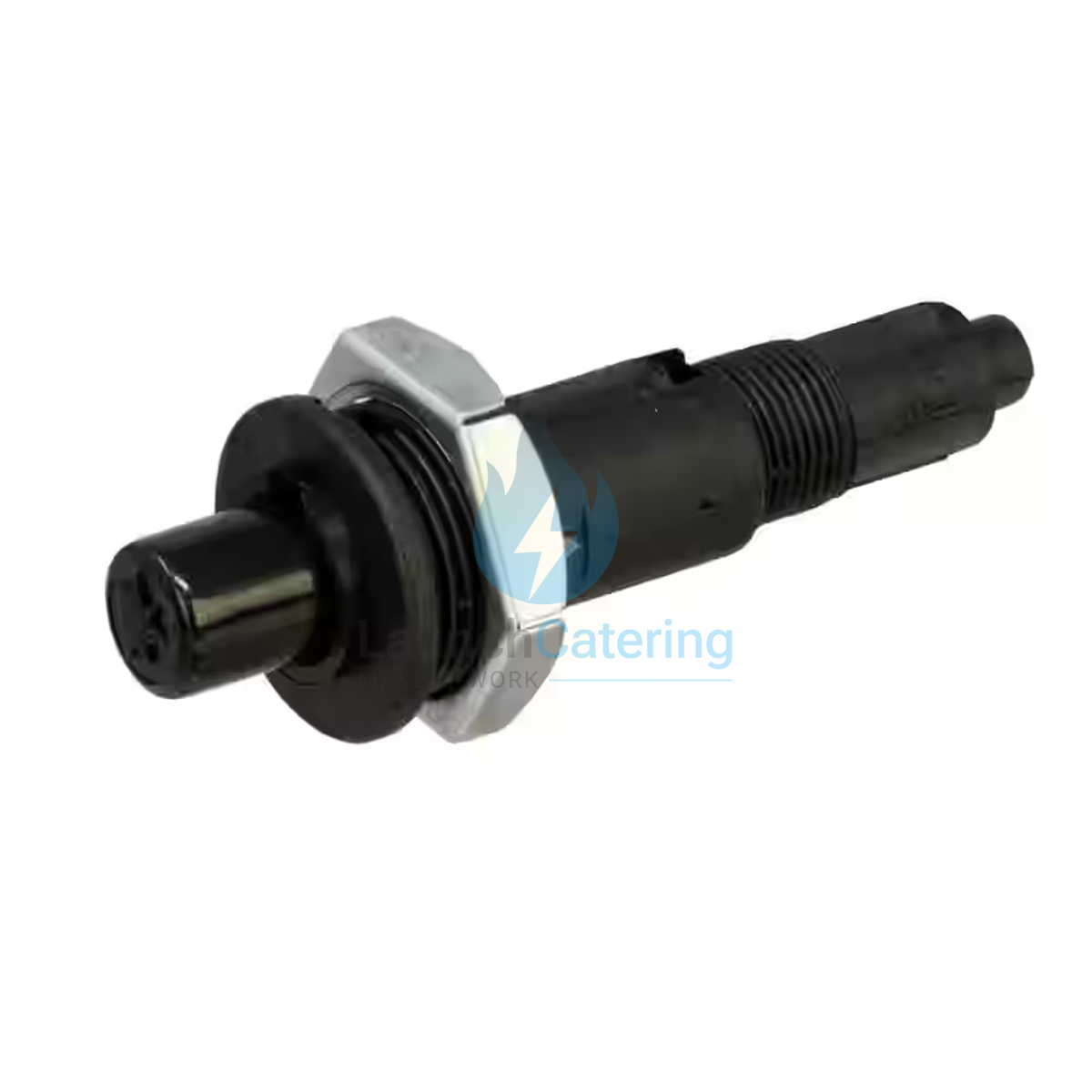

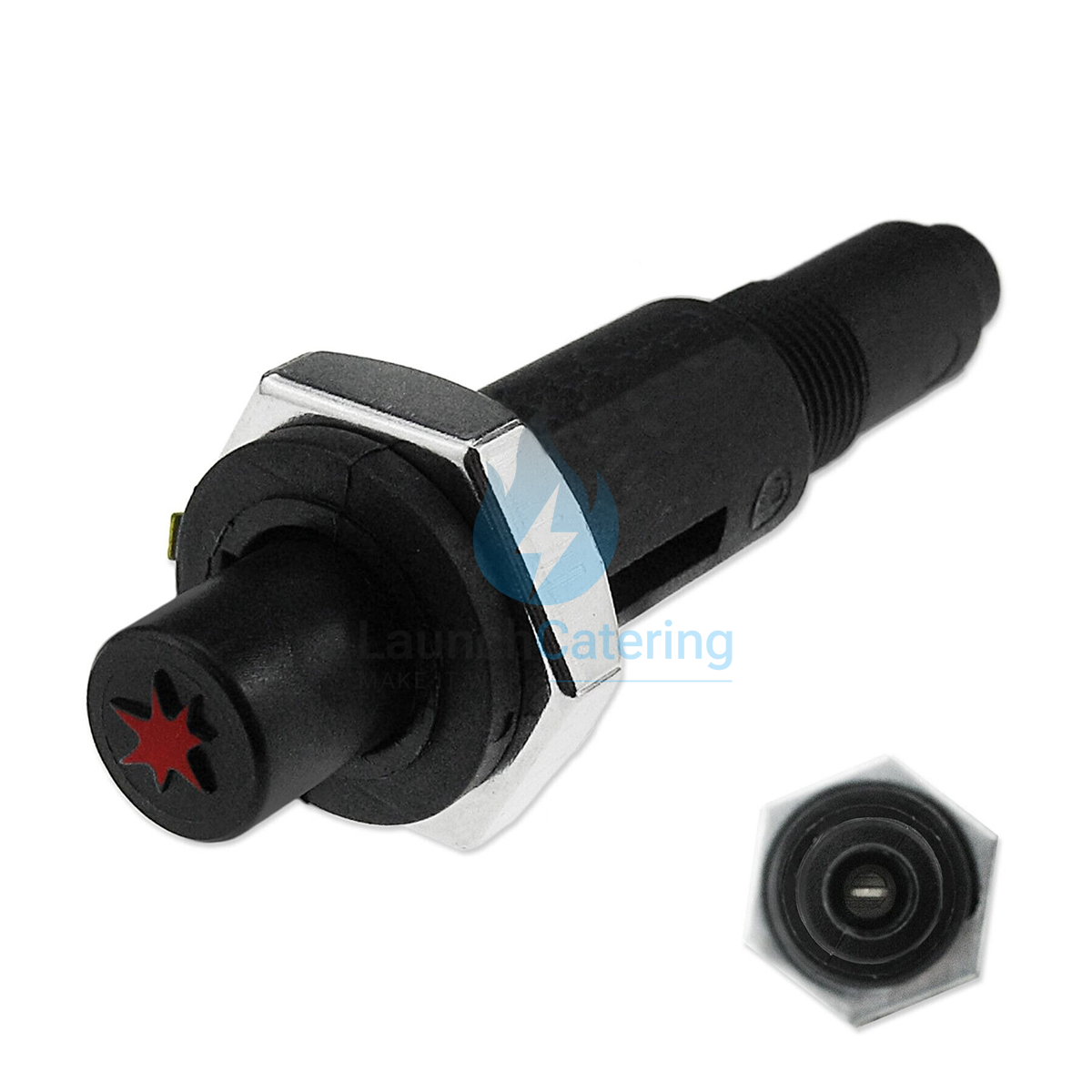

This push-button piezo igniter is a single-outlet panel-mounted ignition unit for commercial gas catering equipment. When the button is pressed, the piezoelectric crystal generates a high-voltage pulse that travels through the HT lead to the spark electrode at the burner, producing the spark needed for ignition. The single outlet flat spade connection sends the full output to one electrode, making this igniter suited to single-burner appliances or individual burner control panels. The 22mm mounting diameter is the standard size used across most commercial gas catering equipment control panels.

Technical Specifications

• Type: Push-button piezo igniter
• Mounting Diameter: 22mm
• Outlets: 1 x flat spade (2.8mm)
• Total Length: 77mm
• Body Length: 64mm
• Body Diameter: 16mm
• Button Length: 13mm
• Button Diameter: 12mm
• Connection: 2.8mm push-fit spade terminal
• Condition: New

Compatible Equipment

This 22mm single-outlet flat spade piezo igniter is compatible with commercial gas equipment using a standard 22mm panel mount and single 2.8mm HT lead, including:

• Lincat — Gas ovens, fryers and grills with single-burner ignition
• Falcon — Gas equipment with individual burner ignition panels
• Blue Seal — Gas ovens and ranges with single-outlet ignition
• Hobart — Gas appliances with standard 22mm piezo panel mount
• Any commercial gas appliance with a 22mm cutout and single 2.8mm HT connection

Not sure if this fits your equipment? Contact us with your machine make, model and part number and we will confirm compatibility before you order.

Signs You Need To Replace This Part

• No audible click when ignition button is pressed
• Button clicks but no spark at burner electrode
• Igniter button is physically damaged, stuck or not returning after press
• HT lead connection is intermittent due to worn spade terminal
