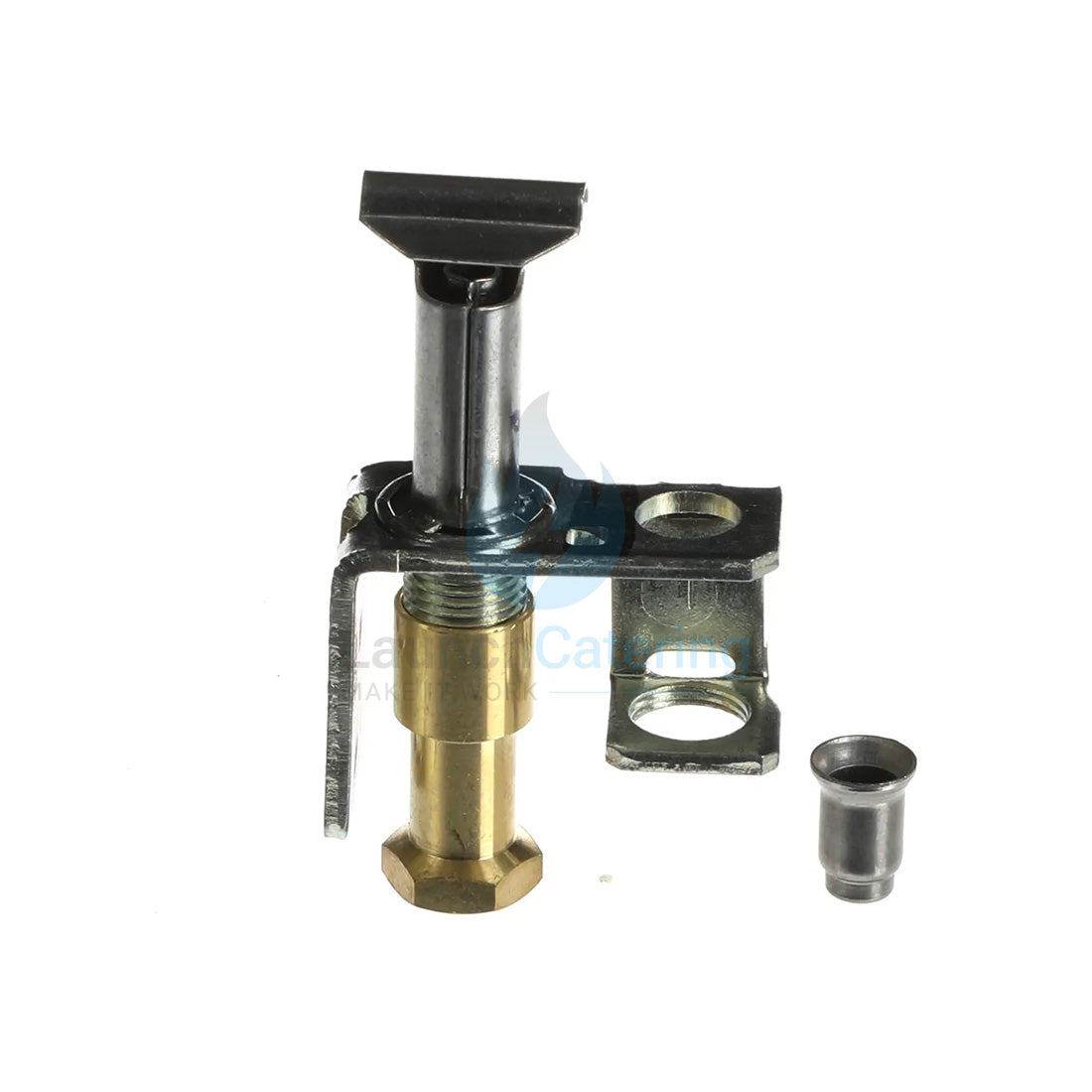

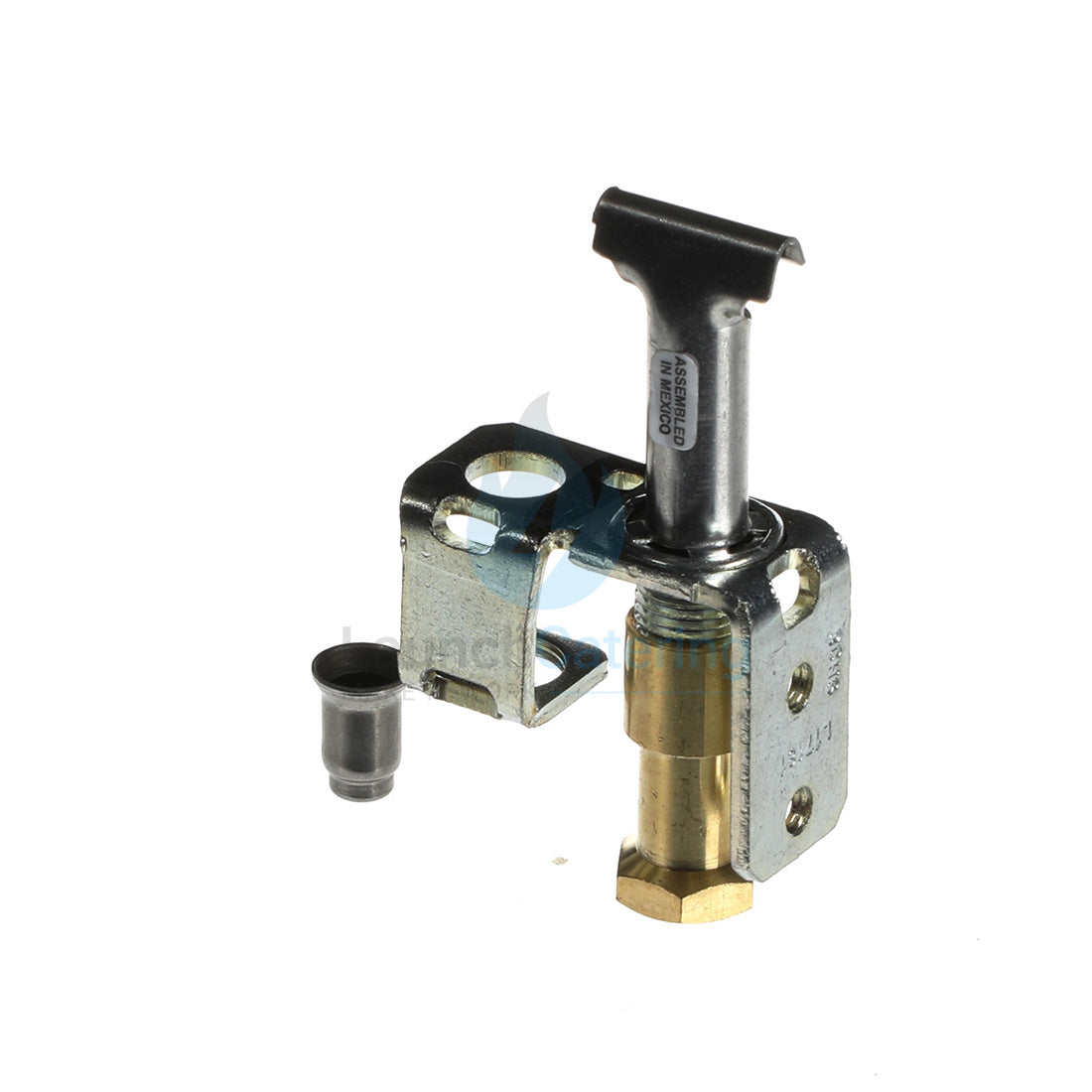

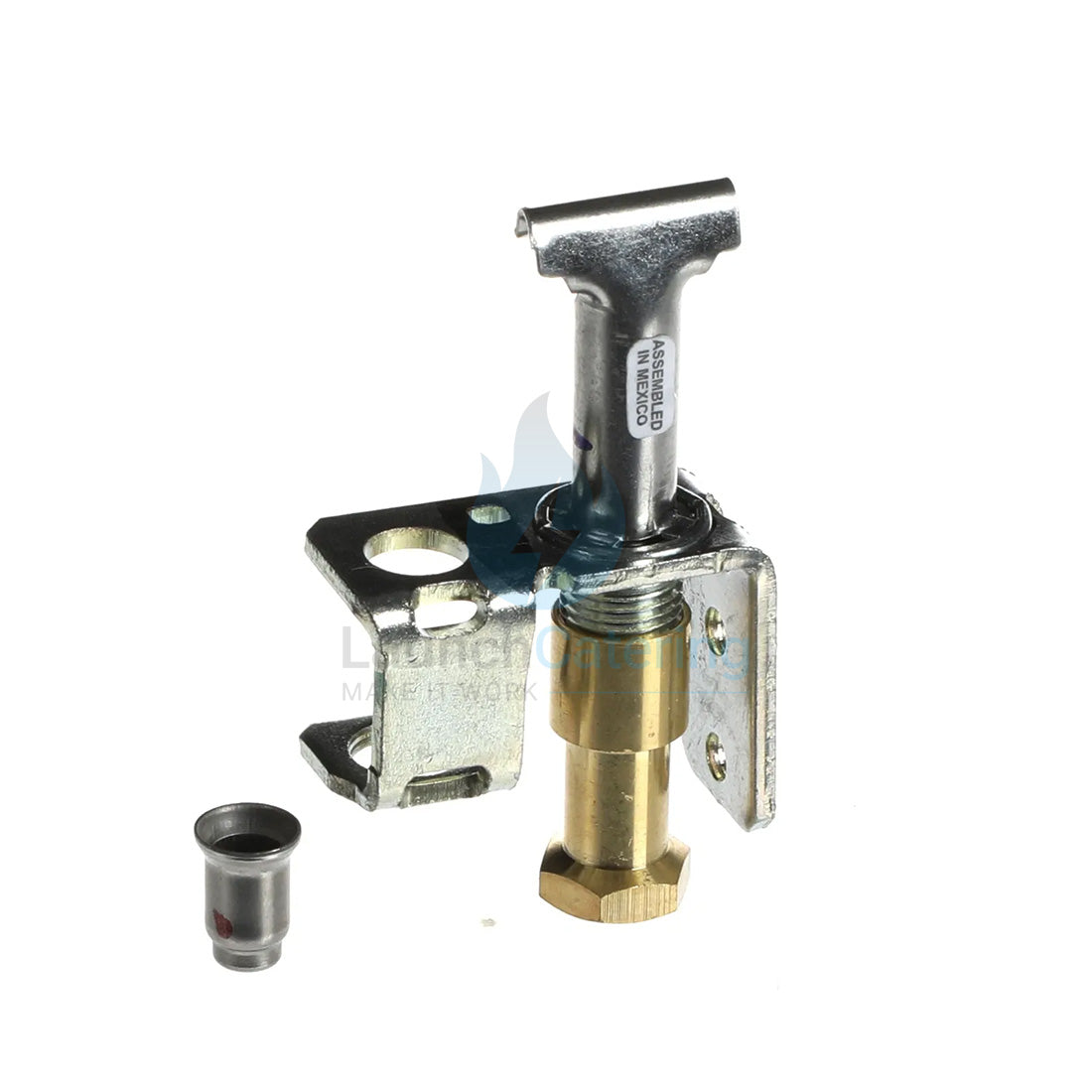

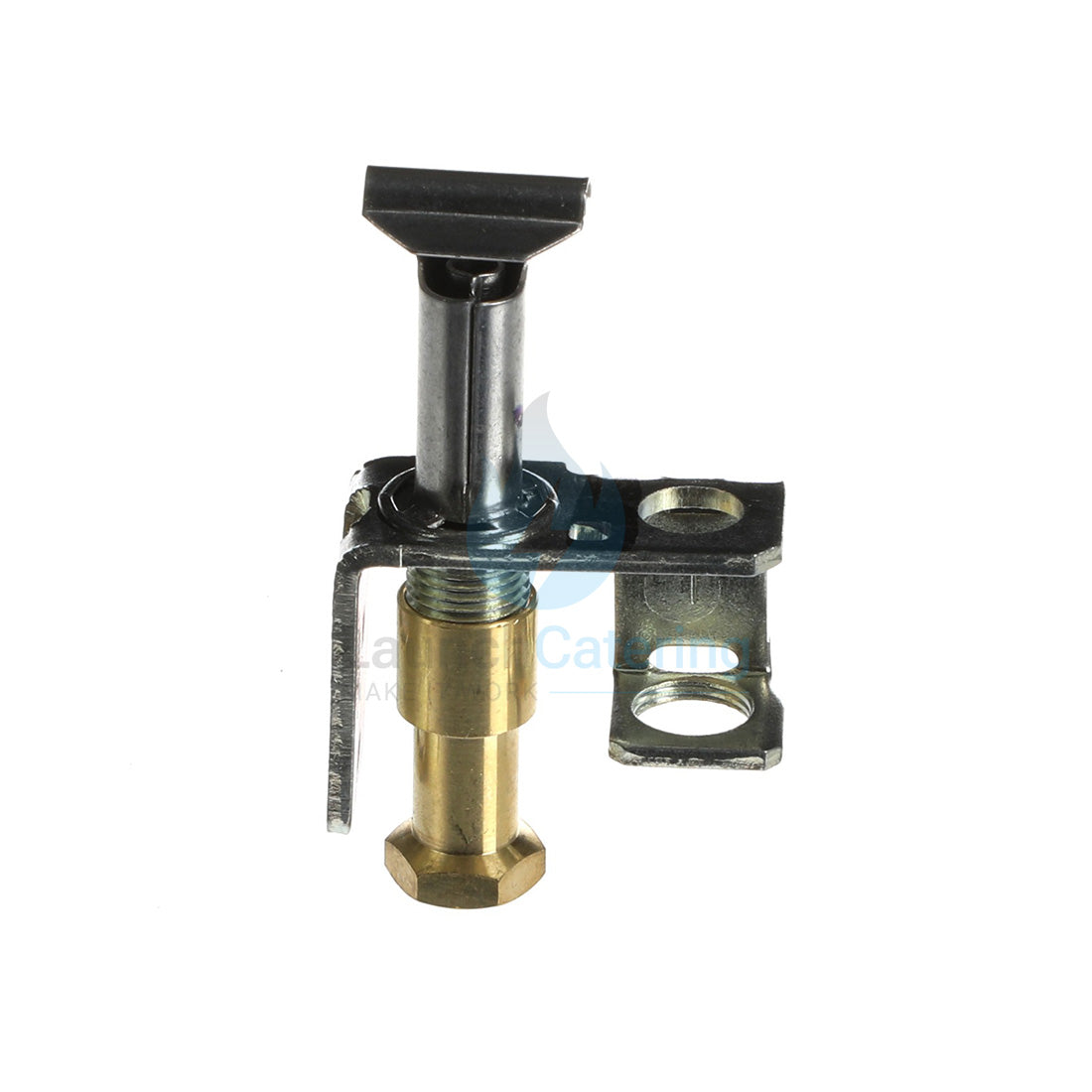

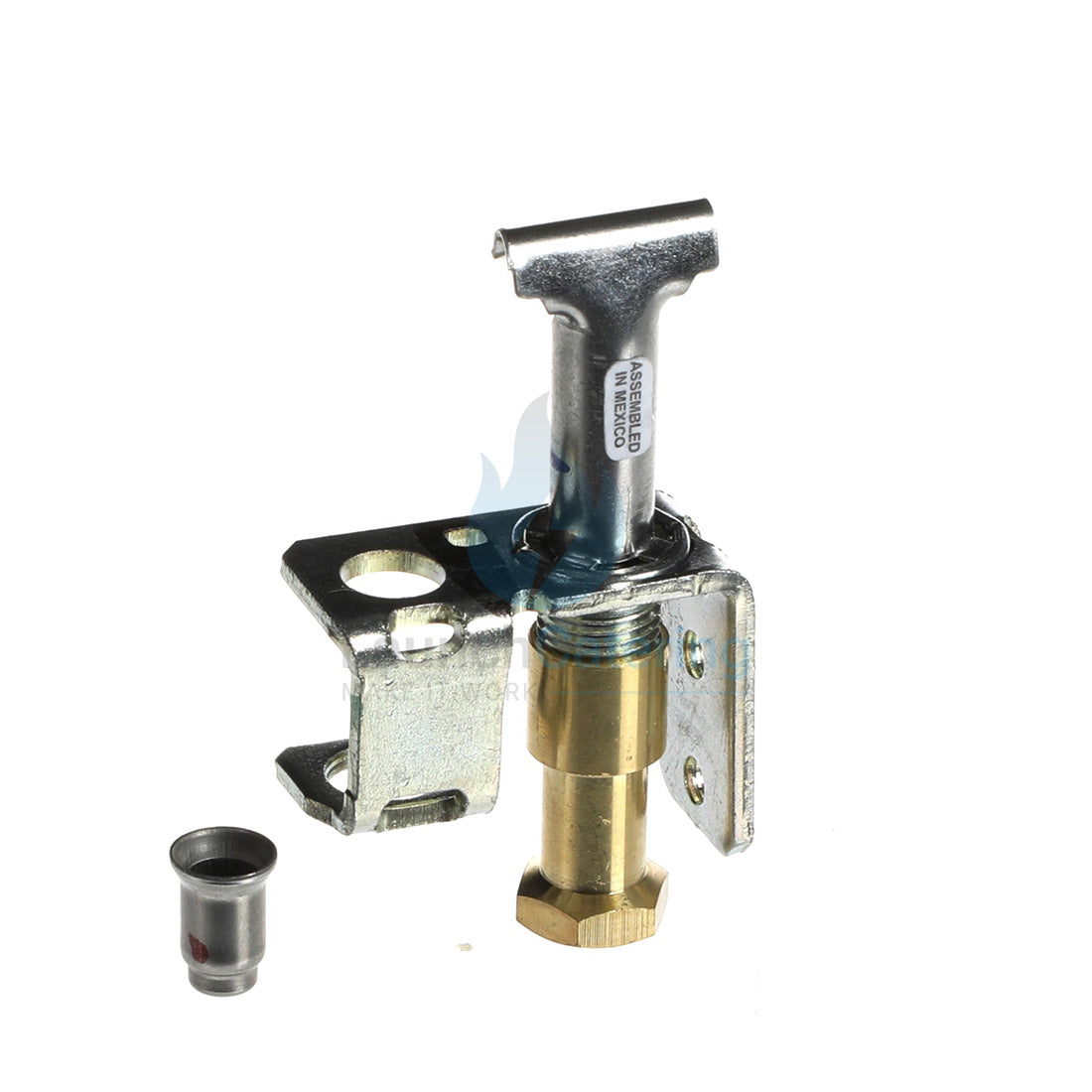

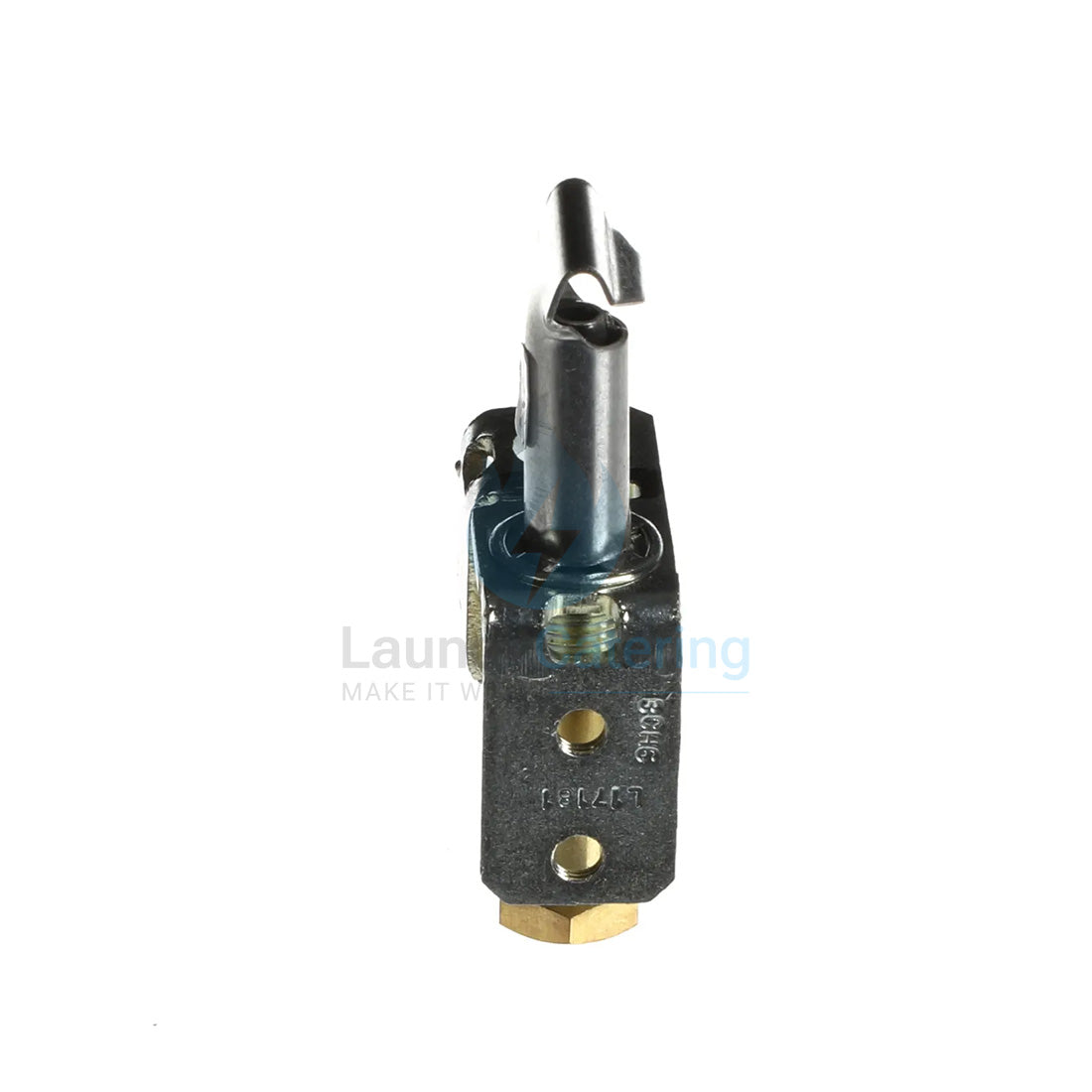

The Robertshaw 1830-010 180-Degree Pilot Burner Assembly (factory part number 3CH-6, cross-referenced as 76538) is a 2CH and 2C Incinerator-Target Pilot Uni-Kit for commercial gas equipment requiring 180-degree flame pattern. Fits American Range and Frymaster applications. Bracket Type 6, Hood Type 3, 1/4 inch CCT tubing.
Key Features
- Robertshaw long code: 1830-010
- Factory Part Number: 3CH-6
- Mounting Bracket: Type 6 (1.5 inch hood width)
- Hood Type: 3
- Flame Pattern: 180 degrees
- Tube Size: 1/4 inch CCT
- Dual fuel ready — NAT and LPG orifices supplied
- Aerated, non-linting pilot
- Universal thermocouple/thermopile compatibility
Compatibility — Brands and Equipment Models
| Brand | Compatible Equipment / Part Numbers |
|---|---|
| American Range | A11114 — commercial gas range applications |
| Frymaster | 76538, 8100154 — commercial gas fryer applications |
| Robertshaw | 3CH-6, 76538 |
| Uni-Line | 1830-006, 63894 |
For Falcon Dominator G1006BX / G1026BX solid top applications, see our Falcon 537960022 listing. For European-pattern equipment, see our Polidoro pilot range.
Why LaunchCatering Ltd
- UK-based specialist — Mon–Fri 9am–5pm, 073 8051 5838
- Fast UK dispatch — order before 4pm same-day dispatch
- Trade prices in GBP — no FX fees, no import duty
- Frymaster specialist — strong UK installed base coverage
Important Information
Must be fitted by a Gas Safe registered engineer. This pilot has a 180-degree flame pattern — confirm configuration before ordering. Isolate gas supply before working and leak-test all joints before commissioning.
Related Parts
Engineers also commonly need a Robertshaw thermocouple or thermopile, pilot tube cleaner, and 1/4 inch pilot tubing.
