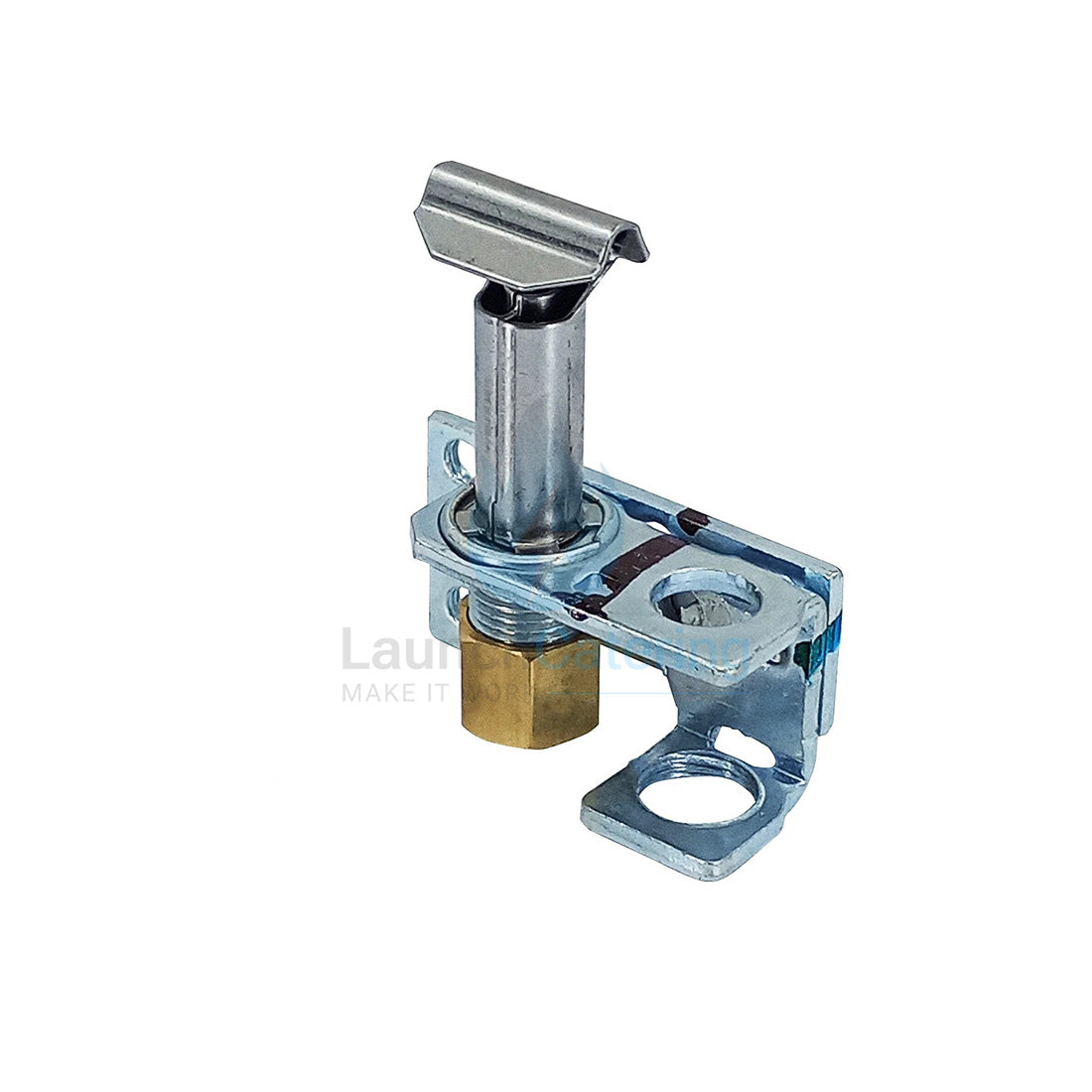

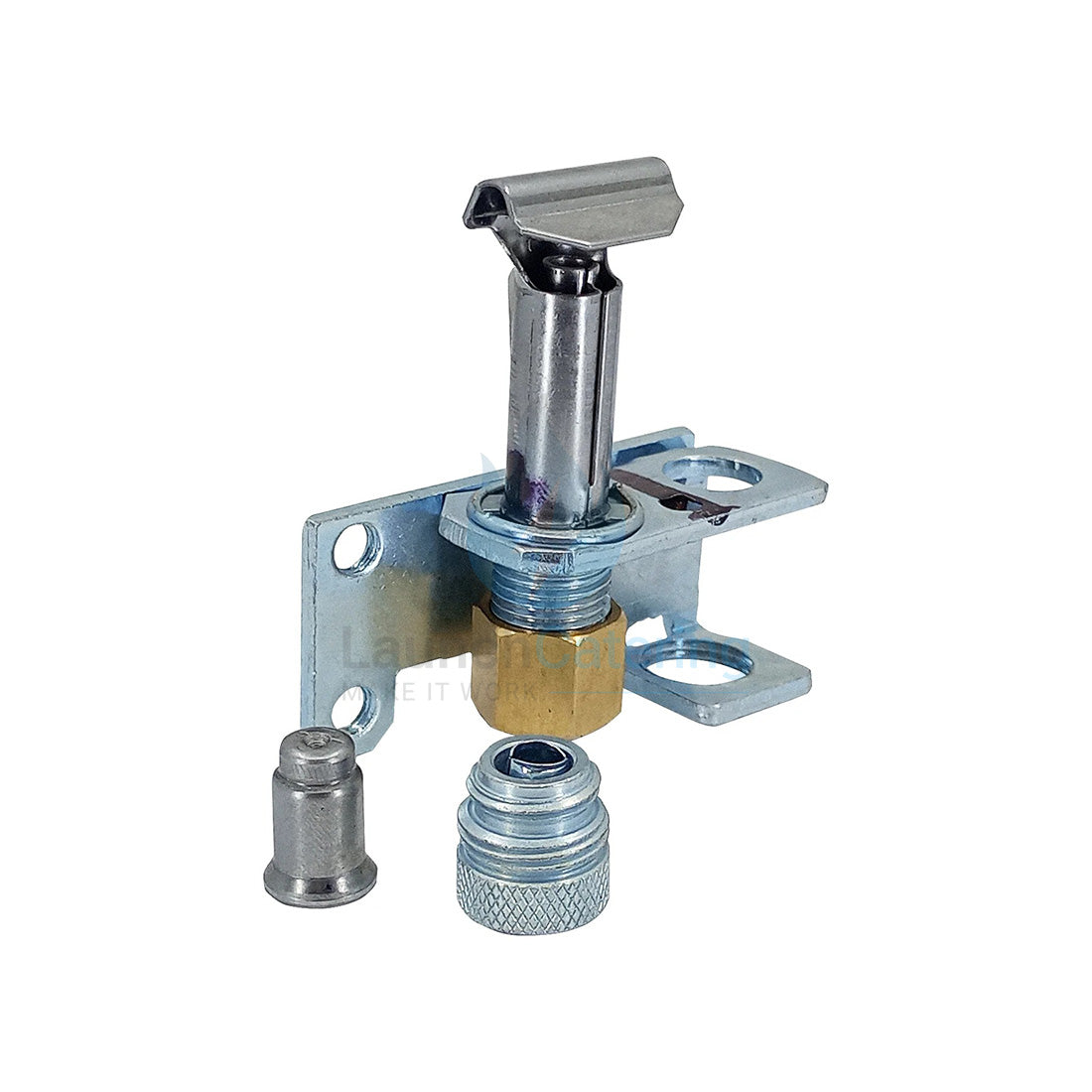

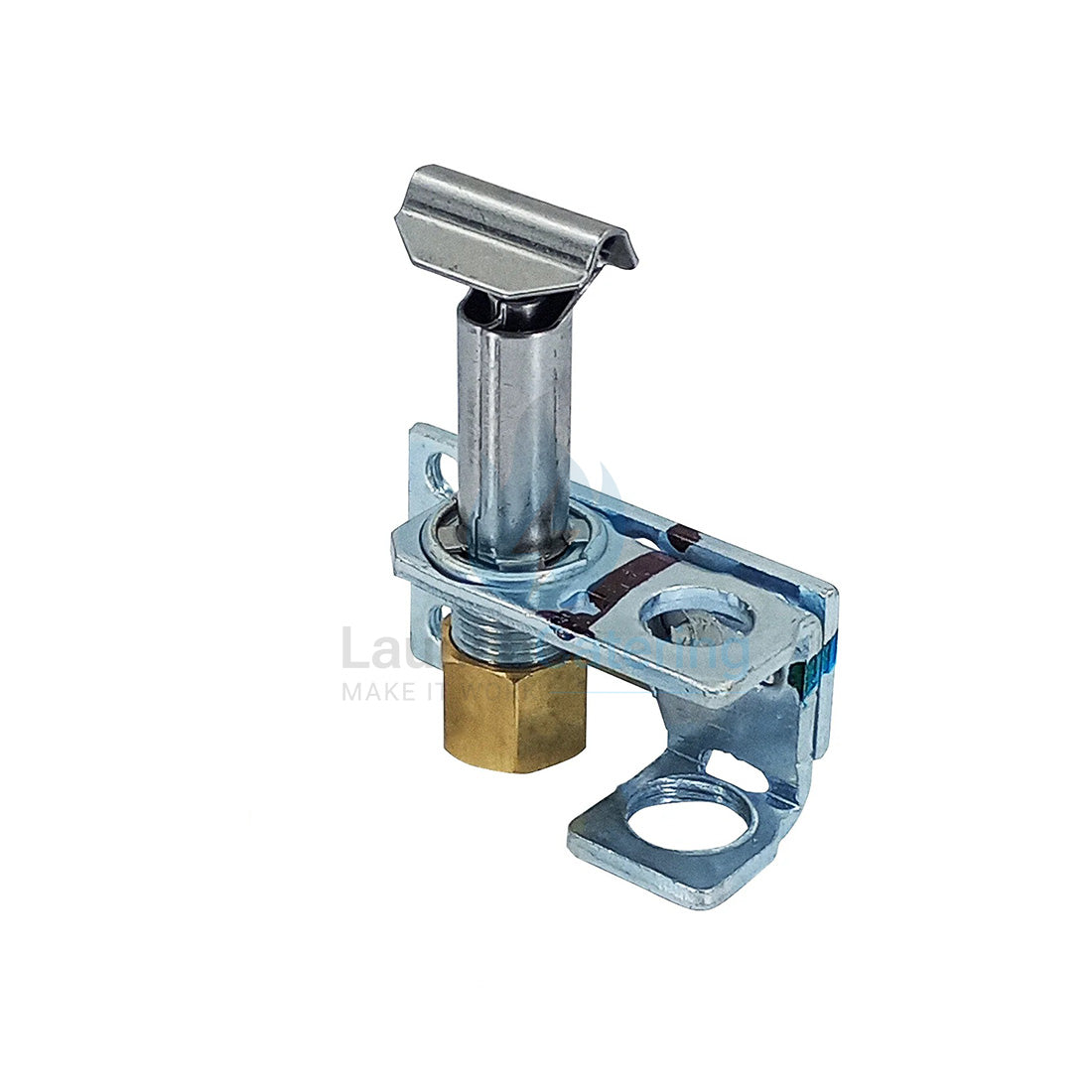

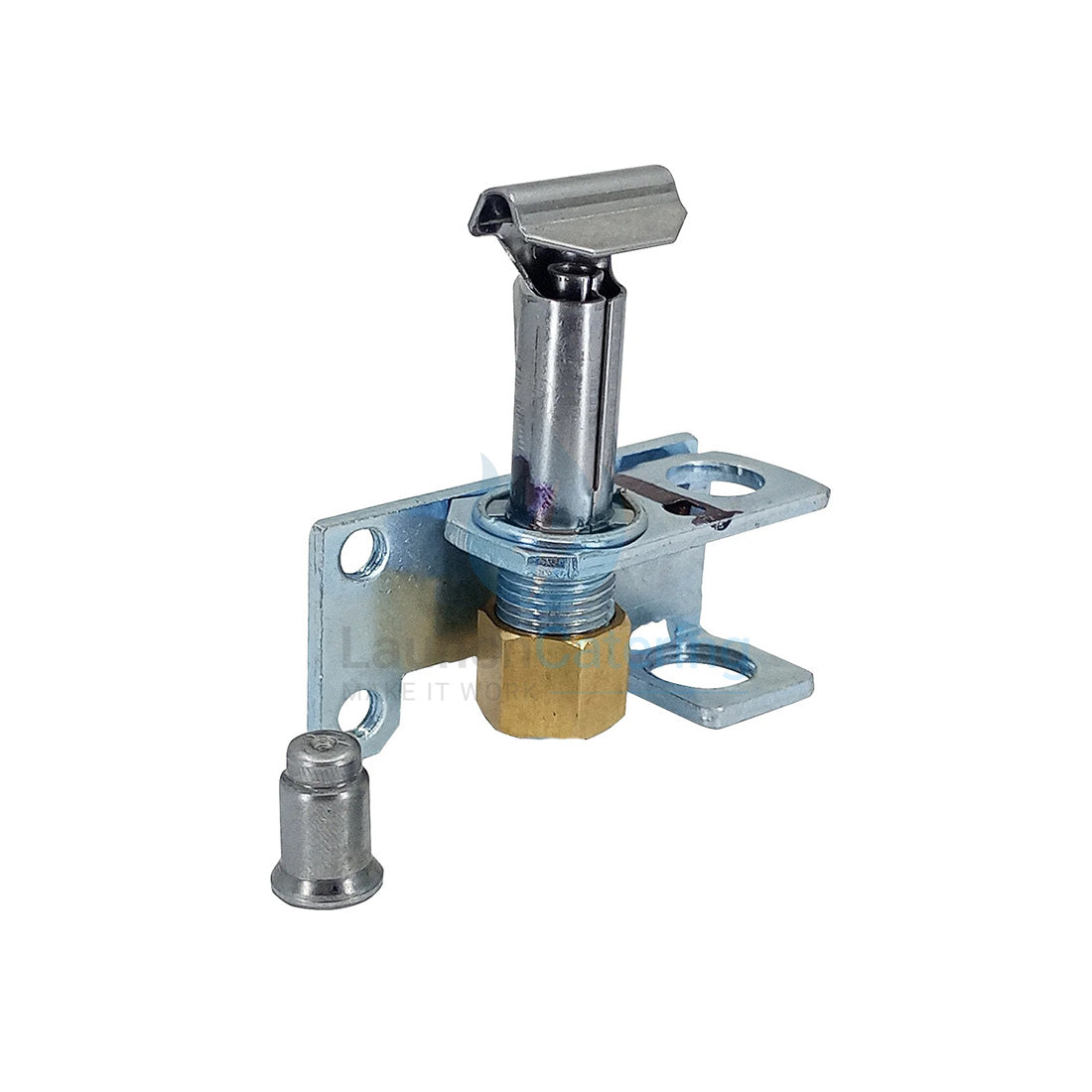

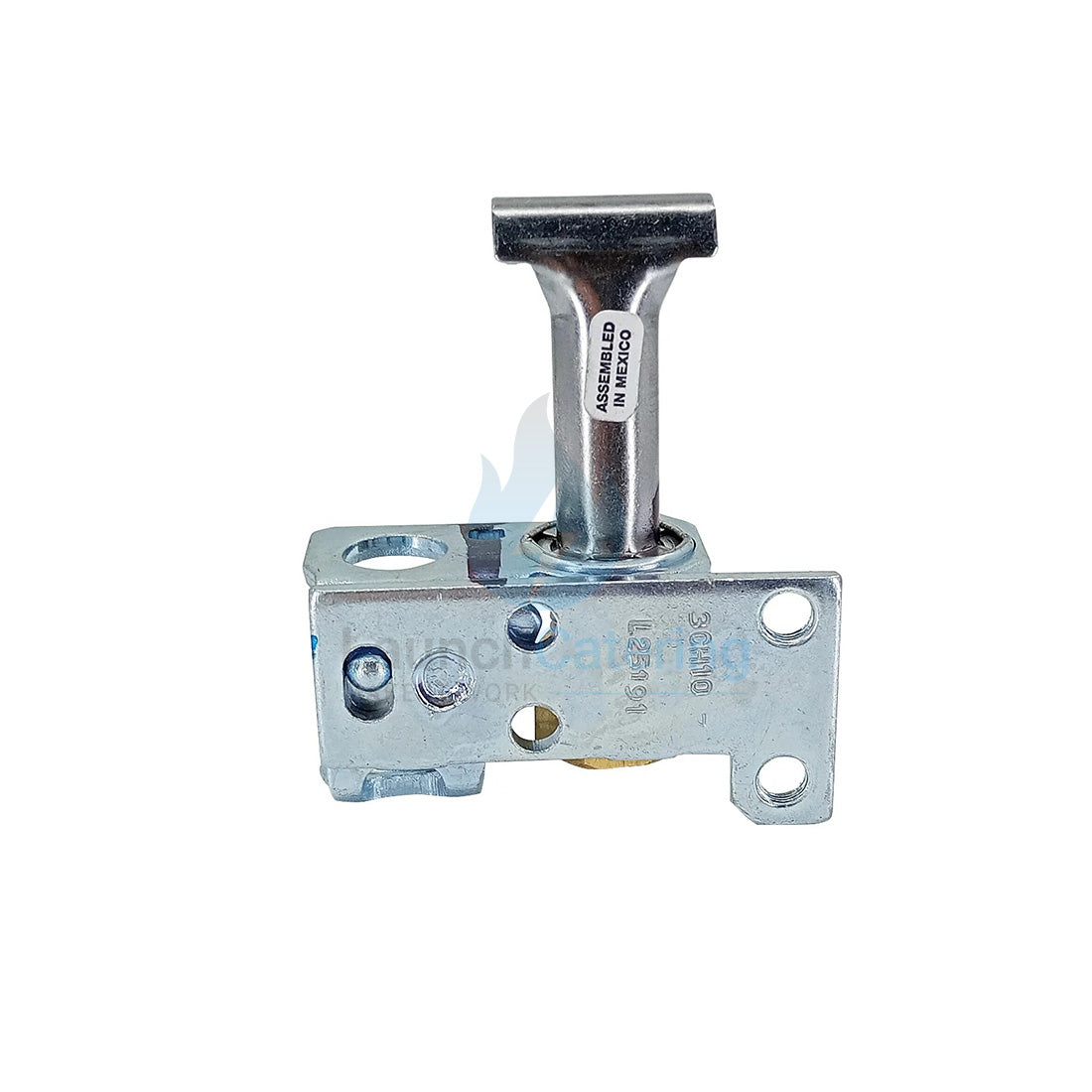

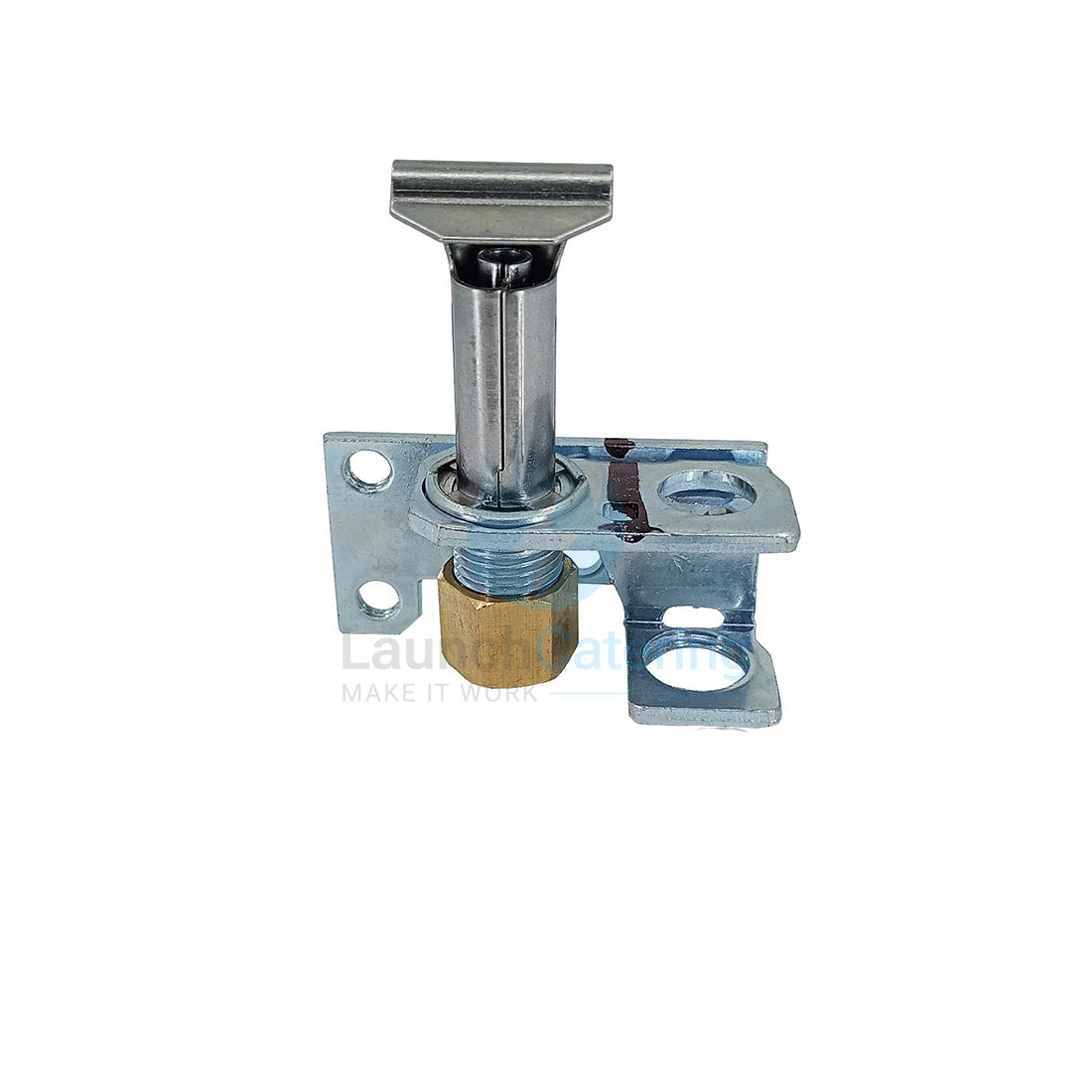

Robertshaw 1830-502 / 3CH-10 Pilot Burner Vulcan-Hart 7400/7500/7800
Robertshaw 1830-502 / 3CH-10 Pilot Burner Vulcan-Hart 7400/7500/7800
Order before 16:00
NEXT DAY DELIVERY
Mon–Fri, excl. bank holidays. UK stock dispatched same day.
The Robertshaw 1830-502 Standard Pilot Burner Assembly (factory part number 3CH-10, Vulcan-Hart code 412082-2, also referenced as 3C-10, 76539, 112082-2, VH412082-2) is a 2CH and 2C Incinerator-Target Pilot Uni-Kit fitted as OEM to the Vulcan-Hart fryer series 7400, 7500 and 7800, as well as Hobart and Consolidated Commercial equipment. Uses a Type 10 mounting bracket with Hood Type 3, standard flame pattern and 1/4 inch CCT pilot tubing.
Key Features
- Robertshaw long code: 1830-502
- Factory Part Number: 3CH-10
- Series Application: 2CH and 2C Incinerator-Target Pilot Uni-Kit
- Mounting Bracket: Type 10
- Hood Type: 3 (3/4 inch hood width)
- Flame Pattern: Standard
- Tube Size: 1/4 inch CCT
- LP Orifice: 26-1554 supplied separately
- NAT Orifice: 26-1554 supplied fitted
- Aerated, non-linting pilot — no air shutter adjustment required
- Universal thermocouple/thermopile compatibility — 2C snap-in or 2CH threaded via included adaptor
Compatibility — Brands and Equipment Models
| Brand | Compatible Equipment / Part Numbers |
|---|---|
| Vulcan-Hart | Fryer Series 7400, 7500, 7800 (depending on model date) — codes: 112082-1, 112082-2, 412082-1, 412082-2, 412082-001/2, 00-412082-00001, 00-412082-00002, VH112082-1, VH112082-2, VH412082-1, VH412082-2 |
| Hobart Corp | 412082-1, 412082-2, 412082-001/2, 00-412082-00001, 00-412082-00002 — commercial gas range and oven applications |
| Consolidated Commercial Co | M-135 |
| Robertshaw | 3C-10, 3CH-10, 76539 |
| Uni-Line | 1830-C013, 64114 |
For European-pattern equipment (EMMEPI, MBM, Bertos, Tecnoeka, Lainox), see our Polidoro pilot range.
Why LaunchCatering Ltd
- Best UK trade price — competitor pricing typically £45-£55 inc tax
- UK-based specialist — commercial catering parts, Mon–Fri 9am–5pm
- Fast UK dispatch — order before 4pm for same-day dispatch
- Trade prices in GBP — no FX fees, no import duty
Important Information
Must be fitted by a Gas Safe registered engineer. Confirm bracket and hood configuration match your existing pilot. Isolate gas supply before working and leak-test all joints before commissioning. Confirm fryer model date — Vulcan-Hart specification varies between production dates.
Related Parts
Engineers also commonly need a Robertshaw 1900-series thermocouple or thermopile, pilot tube cleaner, and 1/4 inch aluminium pilot tubing.
