About This Part

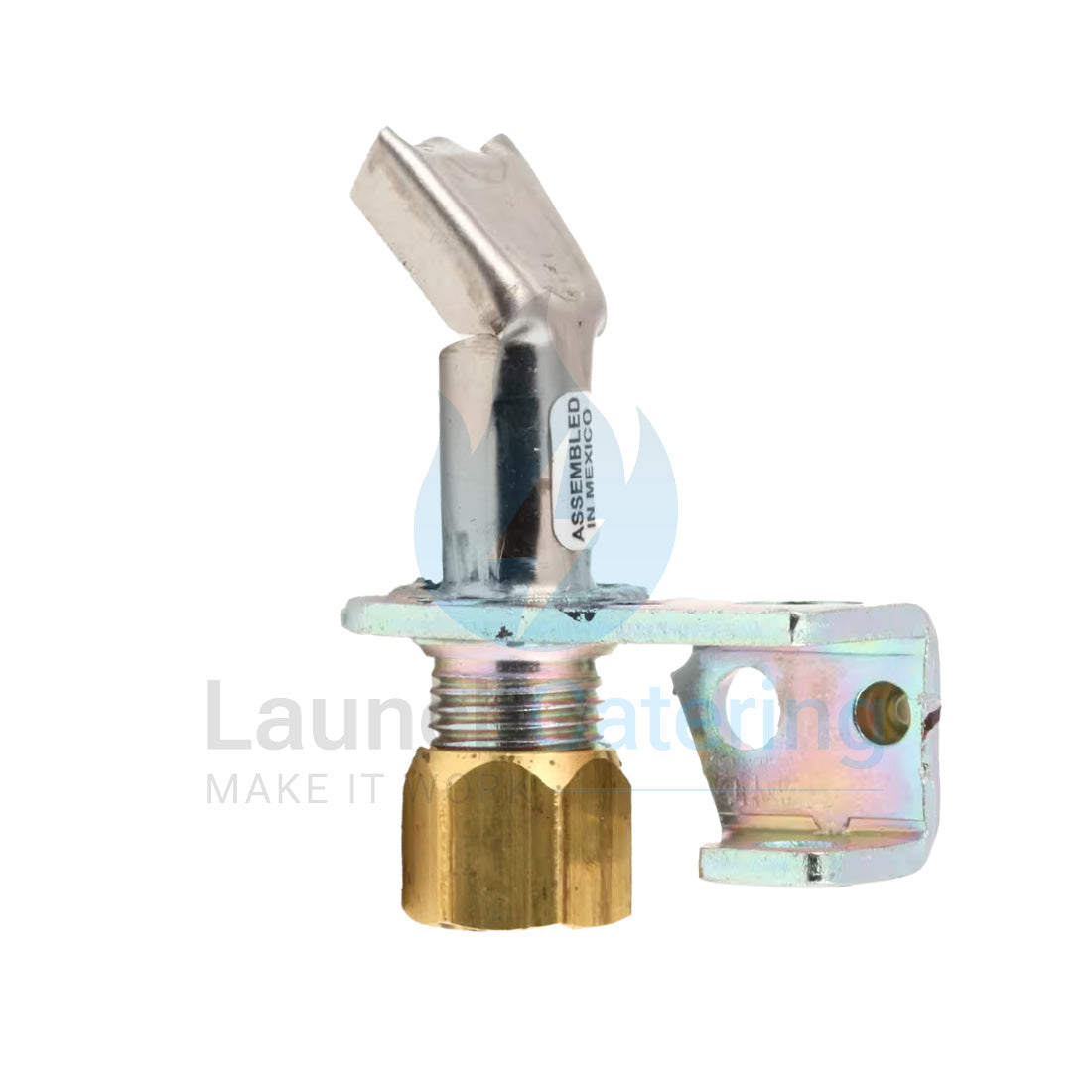

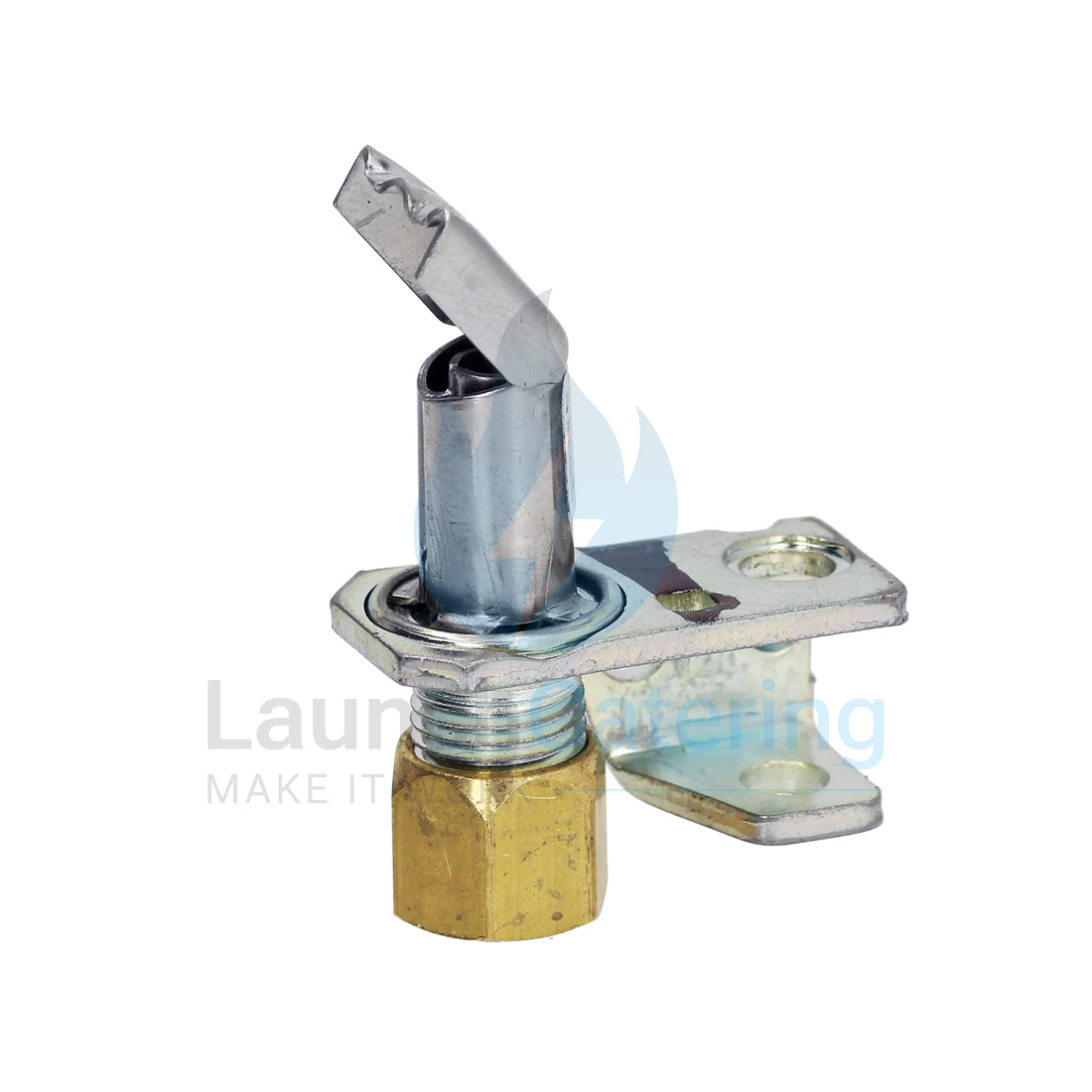

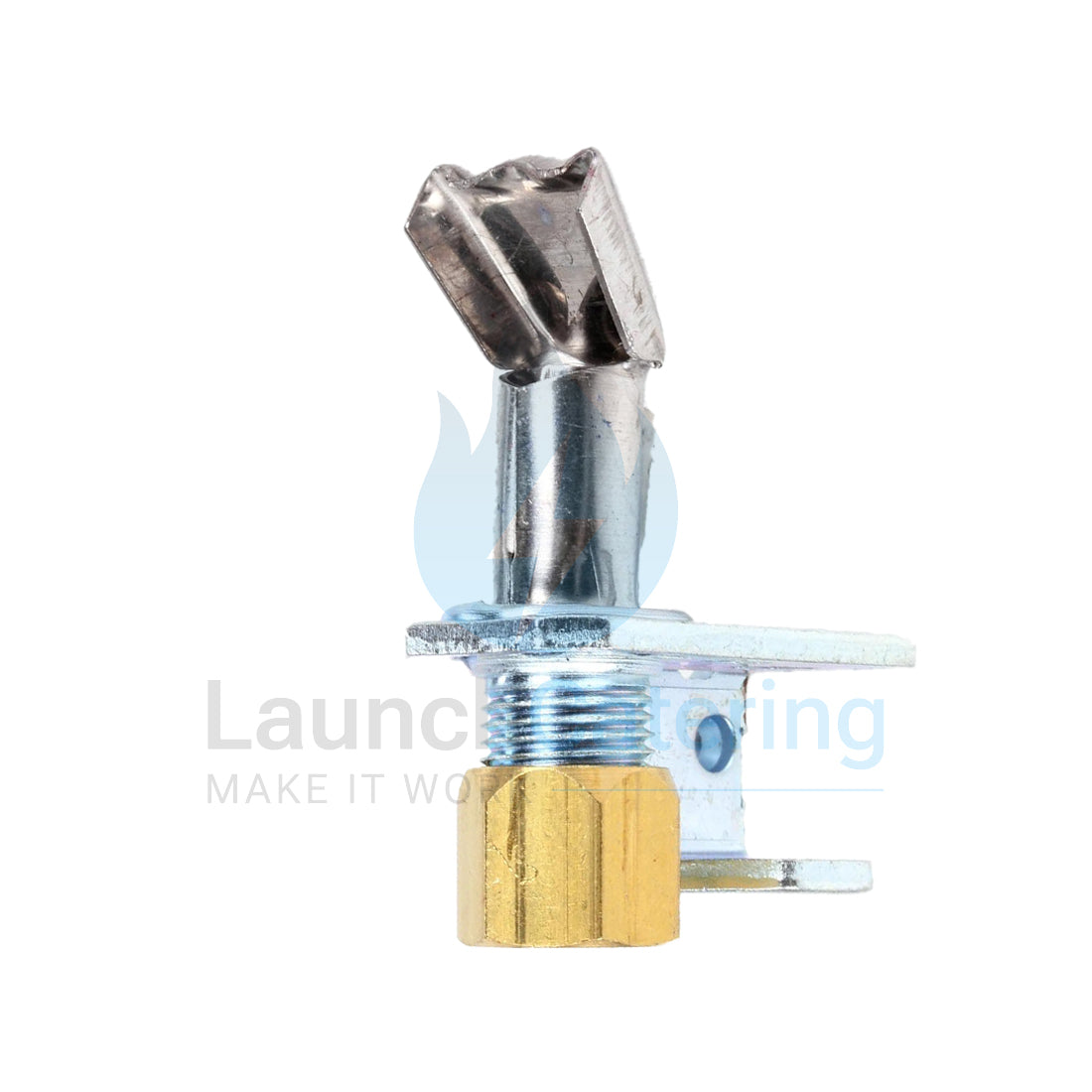

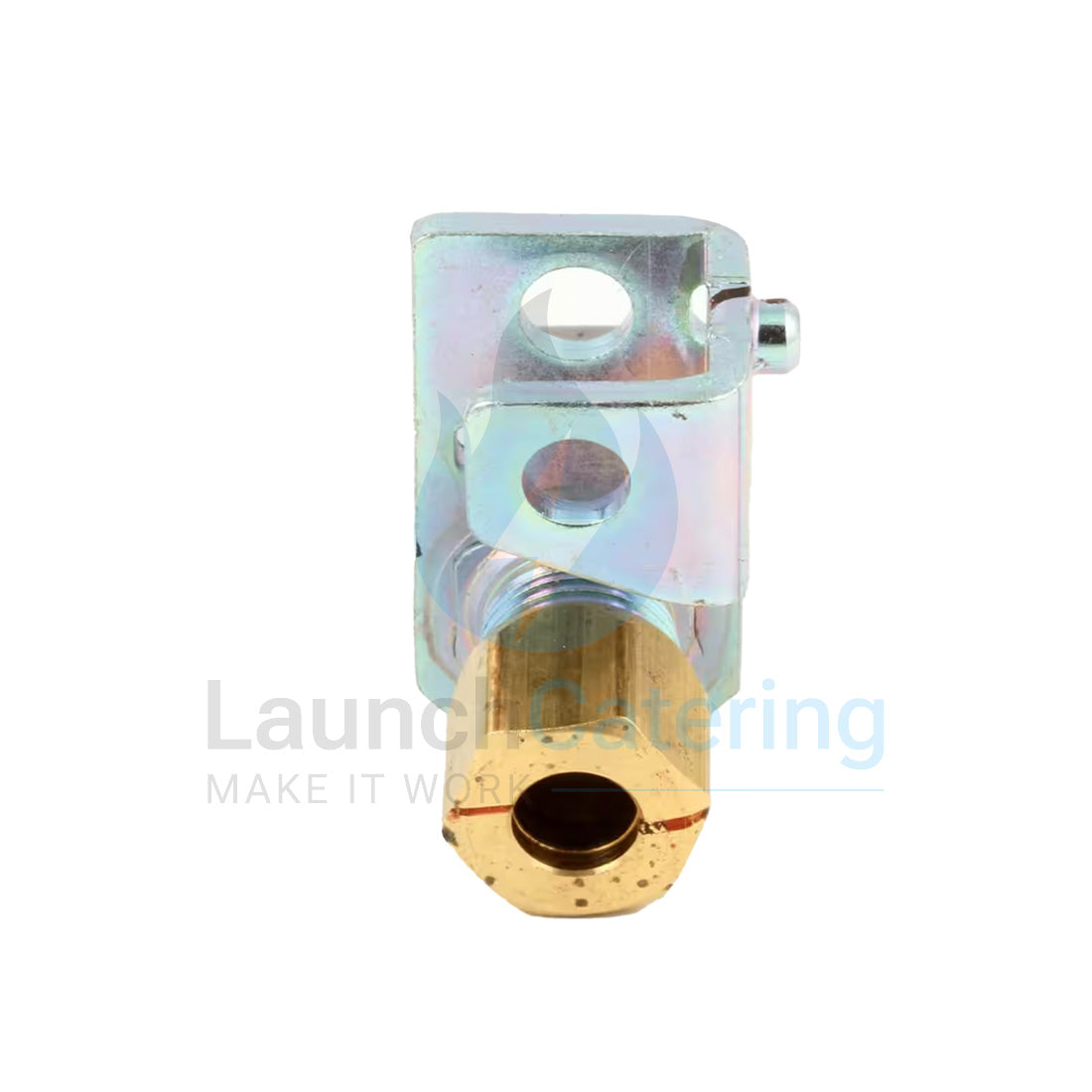

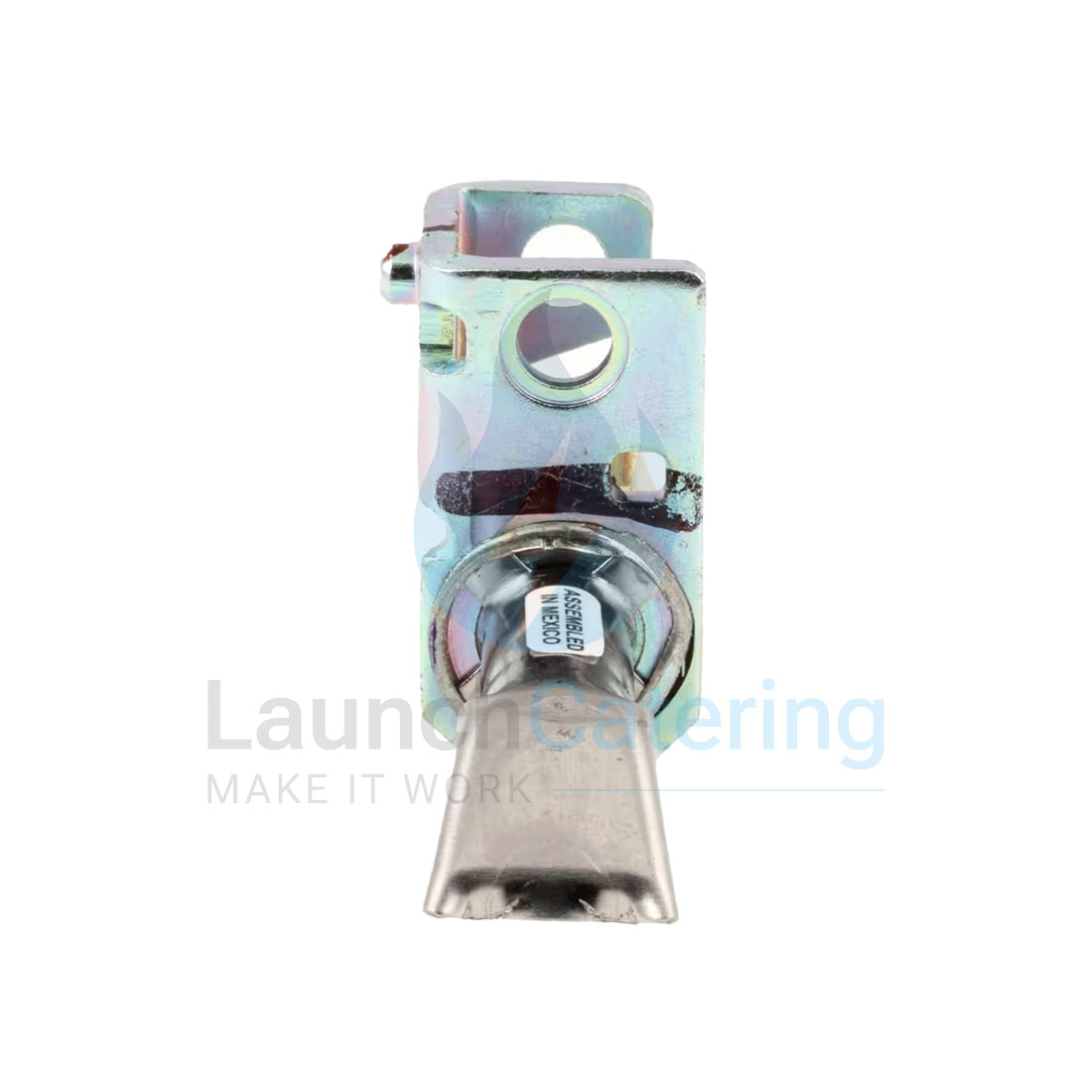

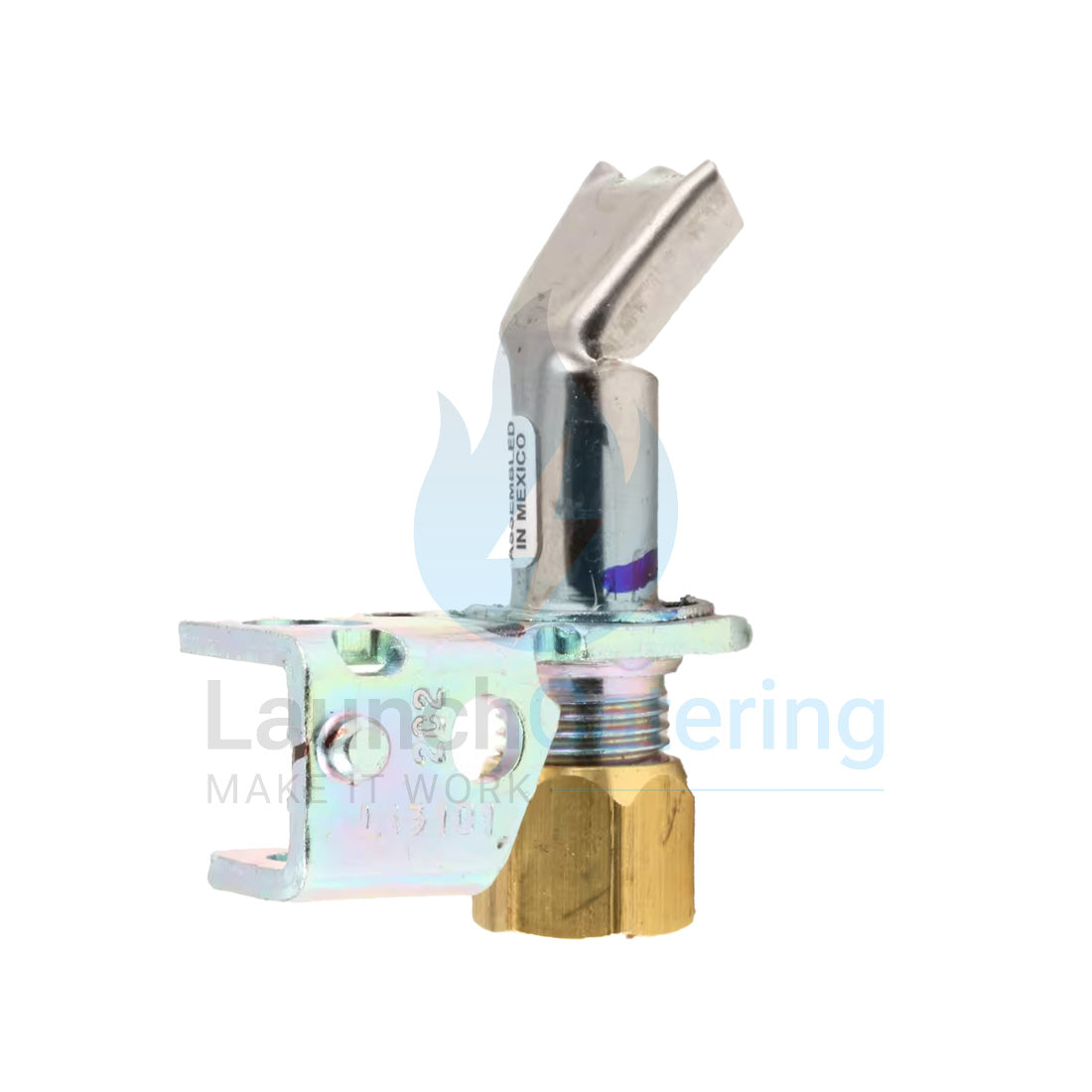

The Robertshaw 1830-601 is an aerated incinerator-target commercial gas pilot burner with a reversed hood configuration for thermocouple-only standing pilot systems on specific Garland ovens and Vulcan Hart ranges. The hood is fitted in the reverse orientation directing the flame away from the thermocouple tip as required by the original equipment design. Supplied with both natural gas and LP gas orifices using the same 26-1554 orifice for both gas types.

Key Specifications

• Manufacturer Part Number: 1830-601
• Factory Part Number: 2C-2
• Series: 1830 Pilot Uni-Kit Incinerator-Target Type
• Mounting Bracket: Type 2
• Hood Type: 2 Twin Flame
• Flame Pattern: Standard with Reversed Hood Configuration
• Thermocouple Compatibility: Thermocouple ONLY - Not Compatible with Thermopiles
• Gas Type: Natural Gas and LP Gas
• Tubing Size: 1/4 Inch
• Gas Orifice: 26-1554 for both Natural Gas and LP Gas
• Aerated Non-Linting Pilot Design
• Condition: New

Compatible Equipment

• Garland - Commercial Gas Ovens (OEM Ref: 27330 and G0526-1)
• Vulcan Hart - Series 7800 Commercial Gas Ranges (OEM Ref: 00-409839-00001 and 409839-01)
• Vulcan Hart - GH GHM GHX and GHXM Commercial Gas Ranges
• Hobart - Commercial Cooking Equipment (OEM Ref: 409839-1 and 409839-01)
• Viscount - Commercial Cooking Appliances
• All equipment specifying Mounting Bracket Type 2 reversed hood 2C-2 pilot with thermocouple-only system

OEM Cross-References

• Garland: 27330 and G0526-1
• Hobart Corp: 409839-1 and 409839-01 and 409839-00001 and VH409839-1
• Vulcan Hart: 00-409839-00001 and 409839-01 and 409839-03 and VH109839-1
• Consolidated Comm.Co: M-117
• Uni-Line: 1830-C007 and 63028 and CD2376-64
• Robertshaw Variant: 1830-60A

Key Features

• Reversed hood configuration directs flame in the specific orientation required by Garland oven and Vulcan Hart range designs
• Hood Type 2 twin flame for reliable main burner ignition performance
• Mounting Bracket Type 2 for correct mechanical fitment on all listed compatible equipment
• Same 26-1554 orifice used for both natural gas and LP gas eliminating orifice swap on conversion
• Aerated non-linting head prevents orifice blockage in commercial cooking environments

Critical Engineering Notes

REVERSED HOOD: The flame hood on this model points away from the thermocouple rather than towards it. This is correct for specific Garland oven and Vulcan Hart range configurations. Fitting a standard-hood pilot in place of this part will cause thermocouple underheating and gas valve safety lockout. Always inspect the existing pilot to confirm hood orientation before ordering.

THERMOCOUPLE ONLY: This pilot cannot be used with thermopile sensing systems. Verify that the gas valve is operated by a thermocouple millivolt system before ordering. If a two-wire thermopile system is fitted a different pilot model is required.

Why Buy From LaunchCatering

LaunchCatering is a trusted UK supplier of commercial catering spare parts. UK stock is held for fast dispatch and every listing carries full OEM cross-reference data and clearly published engineering warnings. We are the only UK supplier to publish the reversed hood configuration and thermocouple-only restriction for this part removing all ordering ambiguity for commercial gas engineers.

In stock now. Order before 2pm Monday to Friday for next-day UK delivery. Contact us to verify compatibility before ordering.
