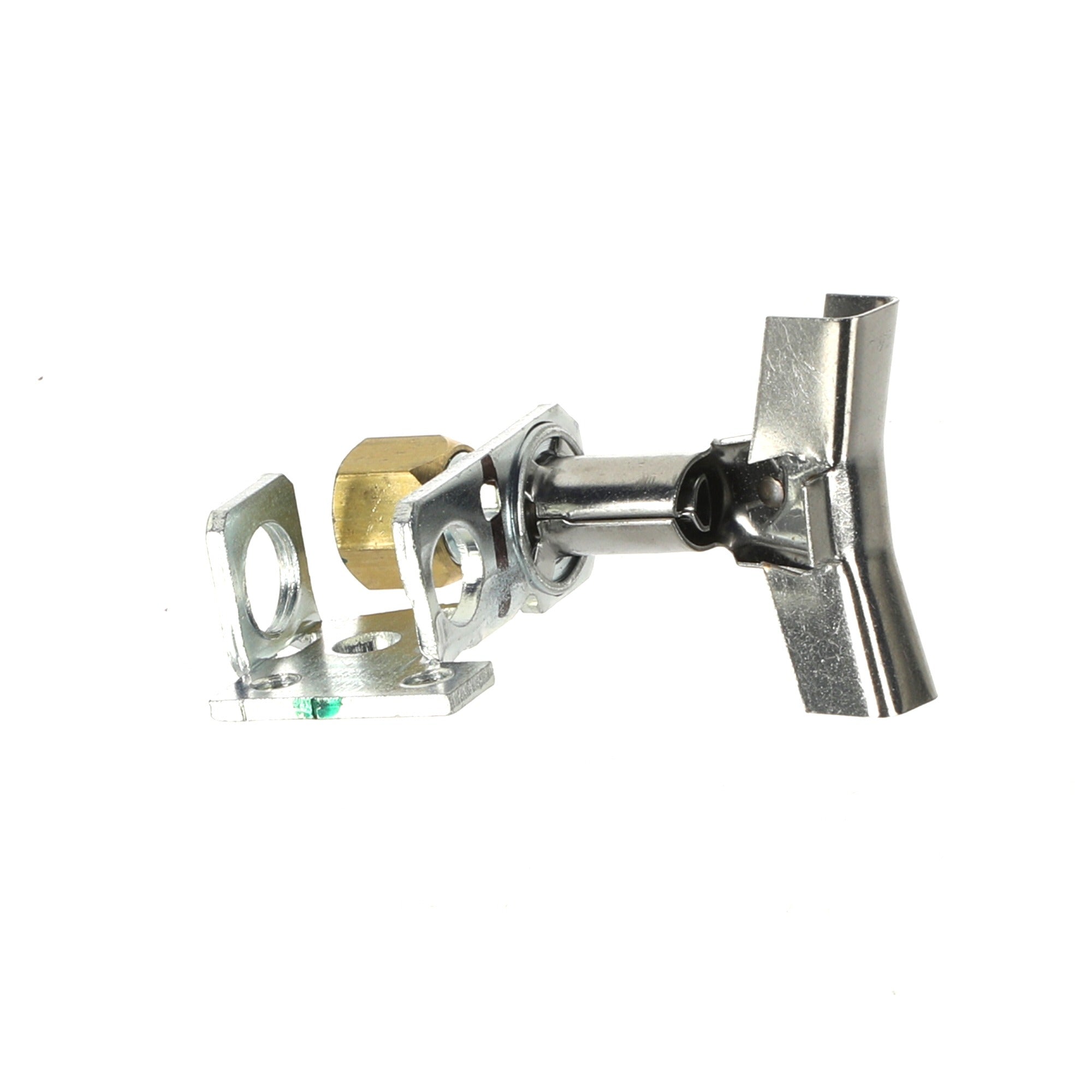

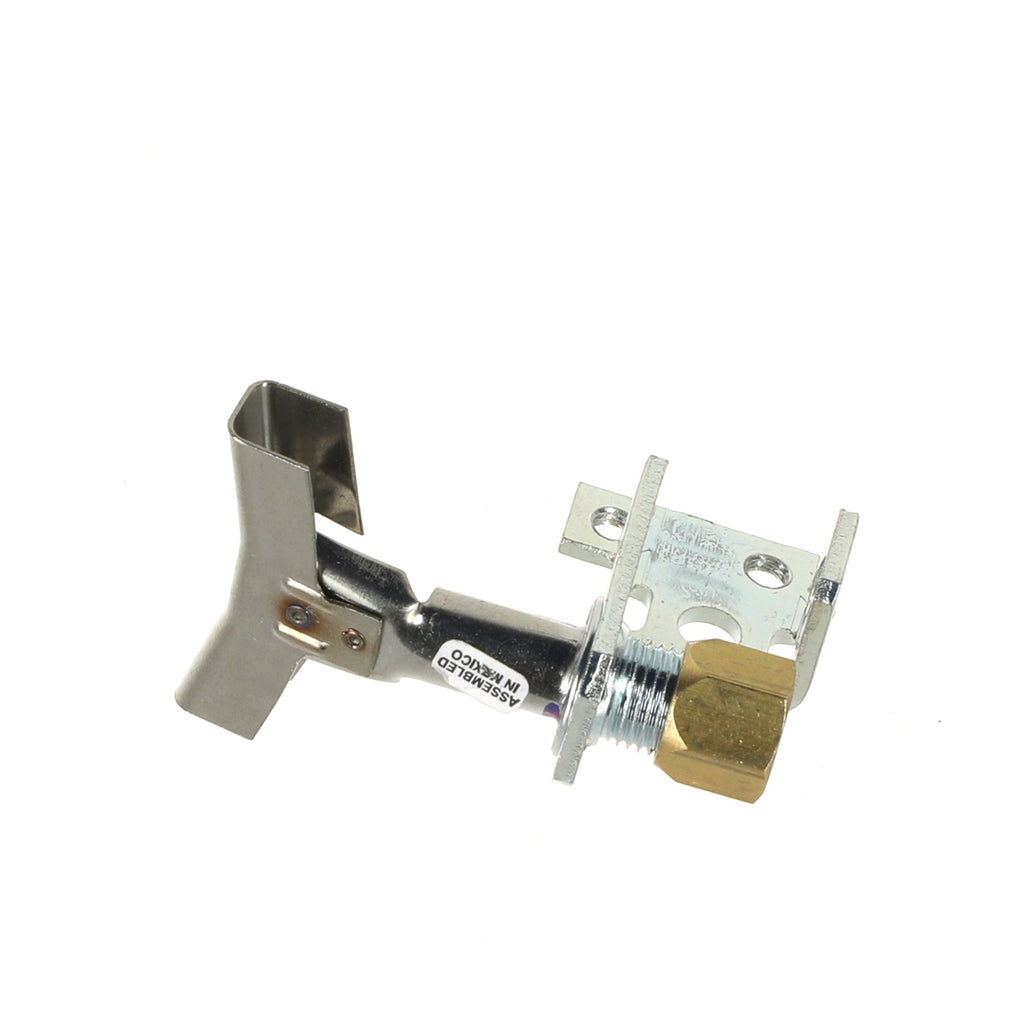

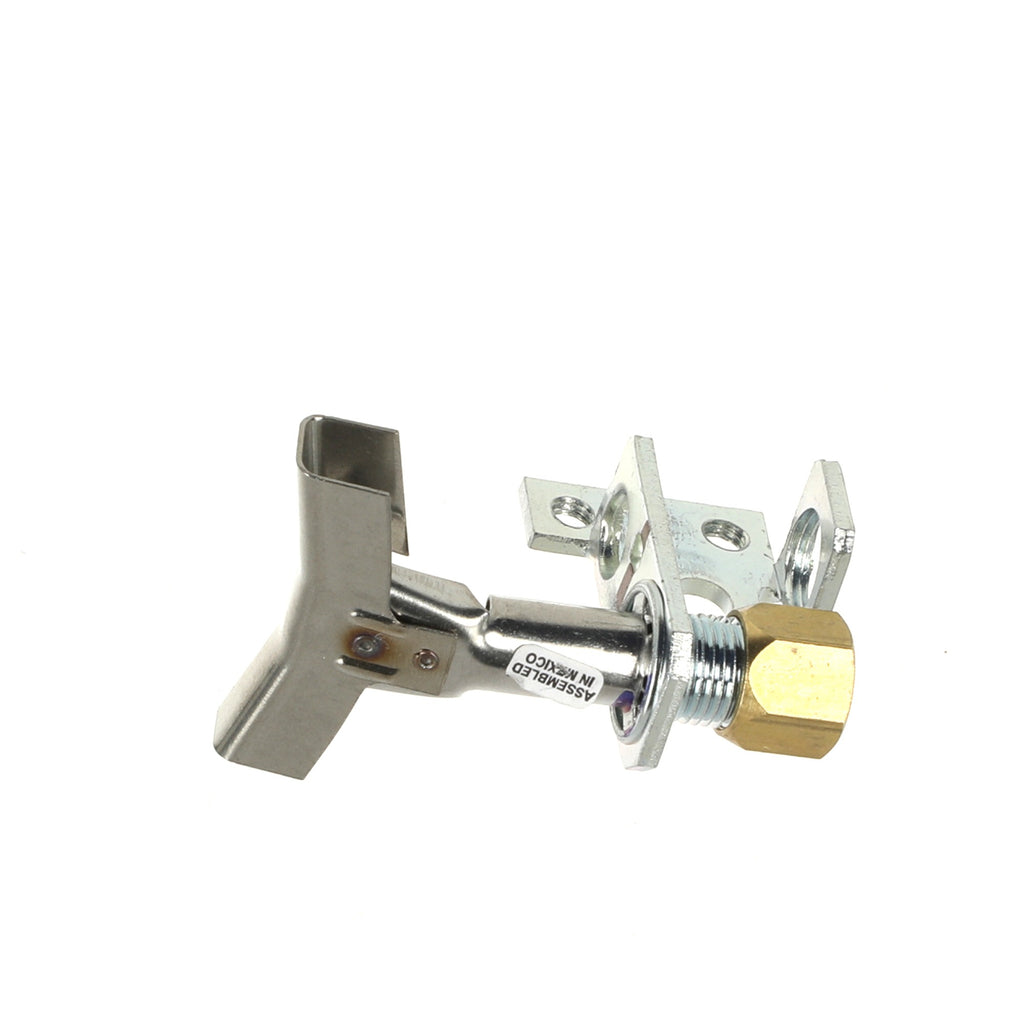

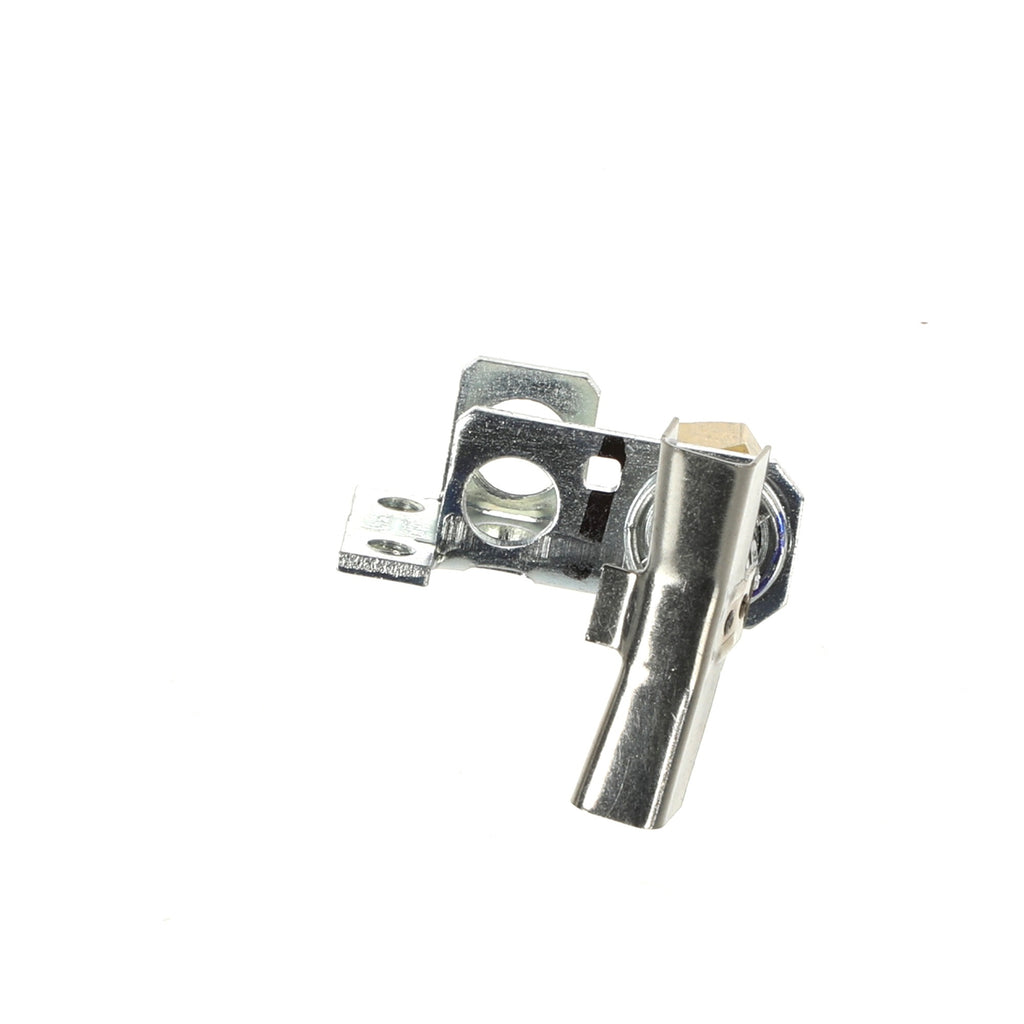

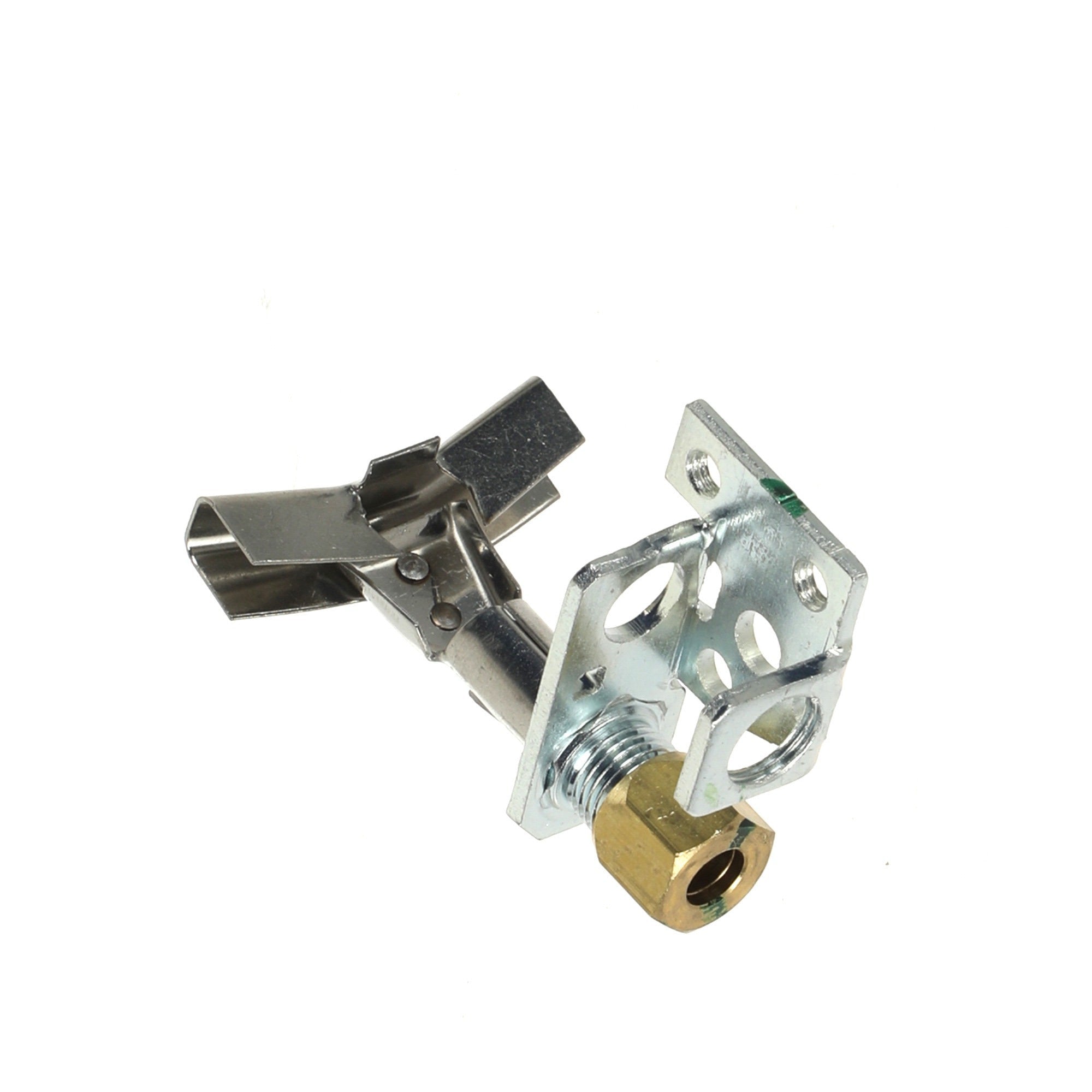

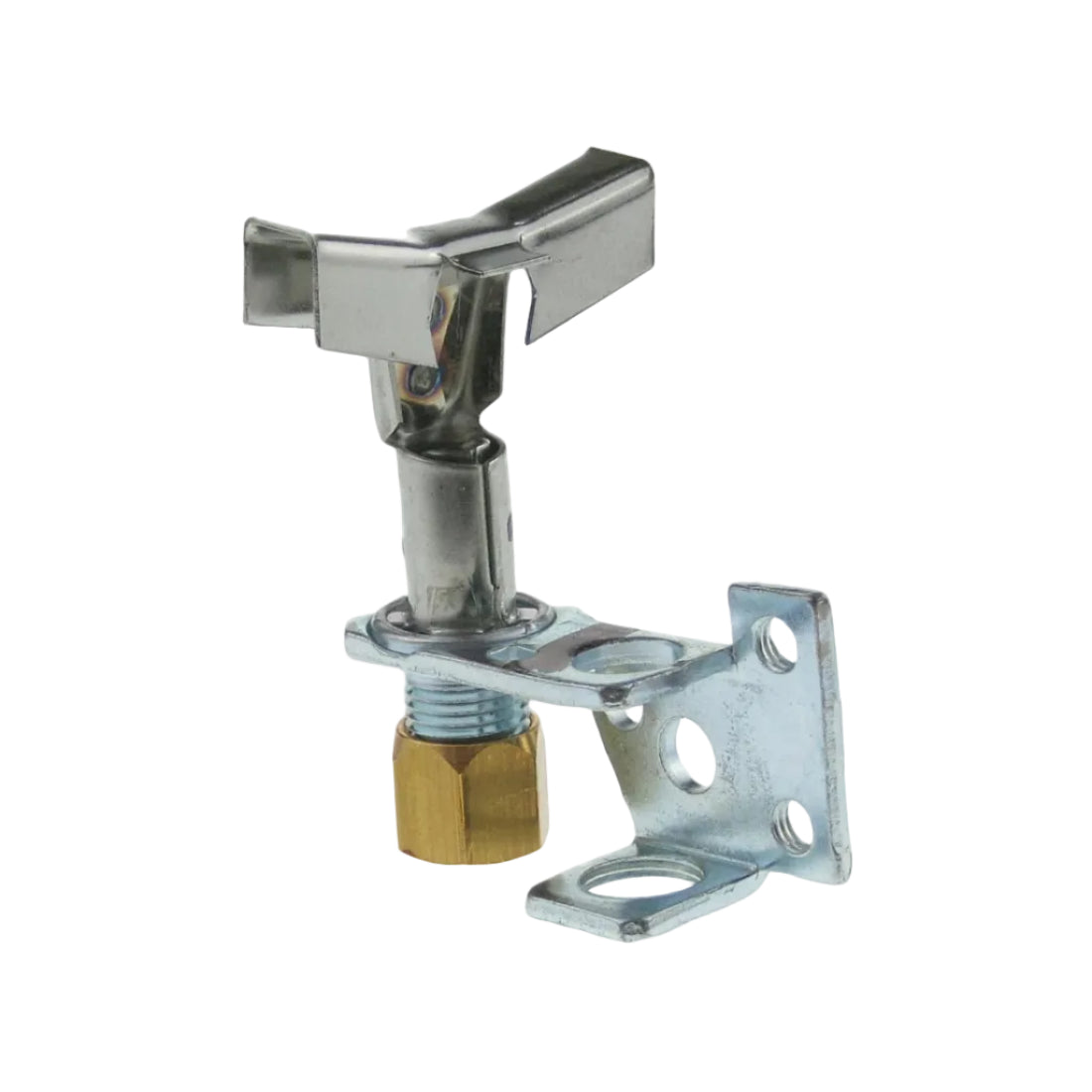

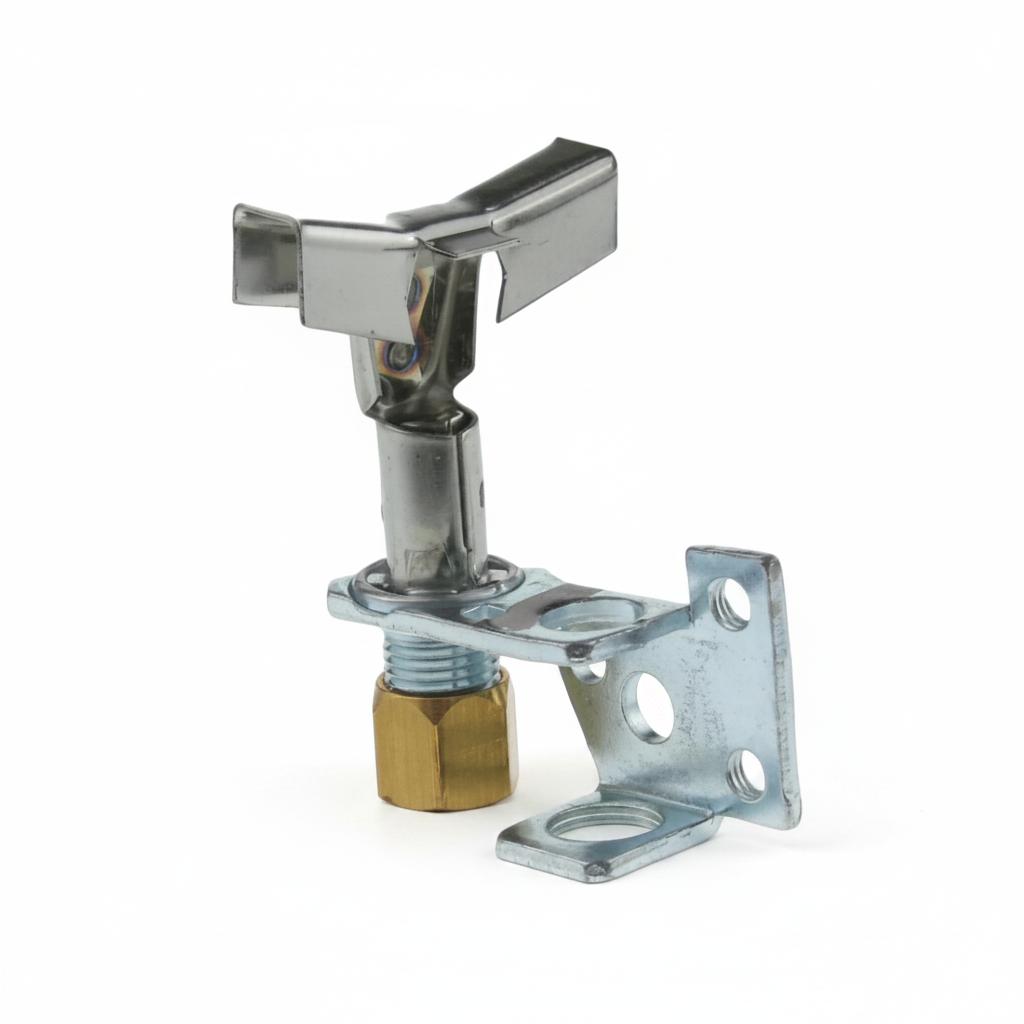

Robertshaw 6CH14-1 / 66905 Pilot Burner 3-Flame Falcon/Ascaso/Viscount
Robertshaw 6CH14-1 / 66905 Pilot Burner 3-Flame Falcon/Ascaso/Viscount
Order before 16:00
NEXT DAY DELIVERY
Mon–Fri, excl. bank holidays. UK stock dispatched same day.
The Robertshaw 6CH14-1 Three-Flame Pilot Burner Assembly (factory code 66905 / R-66905) is the most commonly specified 3-flame industrial gas pilot in the UK trade catering market. Supplied as a complete Uni-Kit with both a Natural Gas orifice fitted and a separate LPG orifice included, this is a true drop-in replacement for the full 6CH14 family — no air shutter adjustment, no linting, and no fuss.
Whether you are servicing a Falcon Dominator range, a Vulcan Hart fryer, an Imperial or Cecilware unit, or replacing a pilot on Viscount or Ascaso equipment, the 6CH14-1 covers the widest range of commercial gas catering appliances of any pilot in its class. The included 2C/2CH adaptor provides universal compatibility with Robertshaw 1900-series thermocouples and thermopiles, making it the complete solution for most commercial kitchen pilot replacement jobs.
Part codes & cross-references
| Quick specifications | |||
|---|---|---|---|
| Flame config | 3-flame | Gas type | Natural Gas (LPG orifice included) |
| Connection | ¼″ CCT pilot tubing | Specification | Index 22 |
| Series | 2CH / 2C Uni-Kit | Design | Aerated target, non-linting |
| Adaptor | Universal thermocouple/thermopile via included 2C/2CH adaptor | ||
Key features
The 6CH14-1 uses an aerated target-style burner head that produces three stable flames for consistent cross-lighting across all burner positions. Because the design is non-linting and requires no air shutter adjustment, installation is straightforward and ongoing maintenance is minimal — an important factor in busy commercial kitchens where engineer call-out time is expensive.
Dual-fuel flexibility is built in: the pilot ships with the Natural Gas orifice already fitted and a separate LPG orifice in the kit, so the same part covers both gas types — just swap the orifice jet when converting between supplies. The included 2C/2CH adaptor means the pilot connects directly to the full Robertshaw 1900-series thermocouple and thermopile range without any additional fittings.
- 3-flame burner for reliable cross-lighting and consistent pilot ignition
- Natural Gas orifice fitted as standard — LPG orifice included in the kit
- Universal thermocouple and thermopile compatibility via 2C/2CH adaptor
- Non-linting aerated target design — no air shutter adjustment required
- ¼″ CCT pilot tubing connection, Index 22 specification
- UK stock — same-day dispatch for orders placed before 4pm
- Trade-friendly GBP pricing — no FX or import surprises
Compatible equipment — find your model
This pilot fits a broad range of commercial gas equipment found across UK and European catering kitchens. Use the tables below to confirm fitment by brand. If your model number is not listed but your machine currently uses a 6CH14-family pilot, this is the correct replacement — contact our team with your appliance details and we will confirm.
| Falcon & Ascaso — confirmed fitments OEM code: 531300050 | |
|---|---|
| Appliance type | Model numbers |
| Gas griddle | OG8201N/P OG8202N/P OG7203N/P OG7204N/P OG7201N/P OG7202N/P OG7207N/P OG7208N/P |
| Gas fryer | OG7101N/P OG7102N/P OG7106N/P OG7107N/P OG7110N/P OG7111N/P OG7115N/P OG7115/FN/P DF4N/P J5N/P J10N/P DCO4N/P DF7N/P |
| Gas salamander | OG7301N/P OG7302N/P |
| Gas chargrill | OG7401N/P OG7402N/P OG7403N/P OG7404N/P |
| Vulcan Hart — confirmed fitments OEM: 112212-1 · 412212-1 · 511467 · 721028-1 | |
|---|---|
| Series | Model numbers |
| GF / HF fryers | GF 91G GF 92G HF91G HF92G 7891G 7892G TK-35 EF EF3 EF4 EF5 |
| 7000-series | 7400 series 7500 series 7800 series (model-date dependent — contact us to confirm) |
| GR range fryers | GR35 GR35F GR45 GR45F GR65 GR65F GR85 GR85F GRC35F GRC45F 1GR45M 1GR65M 1GR85M 1GRC35 1GRC45 1GRC65 1GRD45 1GRD65 1GRS35 1GRS45 1GRS65 |
| Imperial — confirmed fitments OEM: 0310 · 1095-16 · 1095-26 | Tri-Star: TS-1095-16 · TS-1095-26 | |
|---|---|
| Fryer series | IF series IHR series IR series CIFS-40 |
| Cecilware — confirmed fitments OEM: F179A · F180A · F179F · F180F | |
|---|---|
| Series | Model numbers |
| FMP series | FMP 30 FMP 40B FMP 403 FMP 65 |
| FMS series | FMS 30 FMS 54 |
| Viscount & Robertshaw OEM | |
|---|---|
| Viscount | Gas oven applications |
| Robertshaw OEM | Direct factory replacement — 6CH14 family |
Fitting European-pattern equipment? The 6CH14-1 is the American-standard Robertshaw 2CH/2C Uni-Kit pilot fitted on UK Falcon, Ascaso, and Viscount equipment. For European-pattern machines (EMMEPI, MBM, Bertos, Tecnoeka, Lainox), please see our Polidoro pilot range instead.
OEM part number cross-reference
The same pilot is catalogued under different part numbers by each equipment manufacturer. If you have found this part by searching an OEM code from your appliance manual or service sheet, use the table below to confirm this is the correct part before ordering.
| Brand | OEM part numbers |
|---|---|
| Robertshaw | 6CH14-1 66905 R-66905 RBS66905 FESU2336 ROB..13 1830-019 |
| Falcon | 531300050 |
| Vulcan Hart | 112212-1 112212-2 21028-1 412212-1 412212-2 412212-7 511467 721028-1 |
| Imperial | 0310 1095-16 1095-26 |
| Tri-Star | TS-1095-16 TS-1095-26 |
| Cecilware | F179A F180A F179F F180F |
Installation information
Gas Safe registered engineer required
This pilot burner must be fitted by a Gas Safe registered engineer (UK) or qualified gas service technician. In line with current UK gas safety regulations, this work must not be carried out by an unqualified person.
Before beginning work, always isolate the gas supply at the appliance isolator and allow the unit to cool fully. When converting between Natural Gas and LPG, remove the fitted orifice and replace with the LPG orifice supplied in the kit before refitting the pilot assembly.
After installation, leak-test all gas joints using an approved leak detection fluid or electronic detector before commissioning. Once the pilot is lit, verify the flame pattern covers the thermocouple or thermopile tip fully and that the main burner cross-lights cleanly on first call for heat.
Frequently ordered with this part
Engineers replacing the 6CH14-1 / 66905 most commonly also order a matching Robertshaw 1900-series thermocouple or thermopile at the same time — both parts wear at similar rates and replacing them together avoids a return visit. A pilot tube cleaner and a short length of ¼″ aluminium pilot tubing are also recommended to ensure a clean, leak-free installation. Browse our pilot burner spares collection for the complete service kit.
