Robertshaw Thermocouple Gas Valve Magnet - Unitrol Flame Failure Power Unit (RBS83397)
Robertshaw Thermocouple Gas Valve Magnet - Unitrol Flame Failure Power Unit (RBS83397)
Description

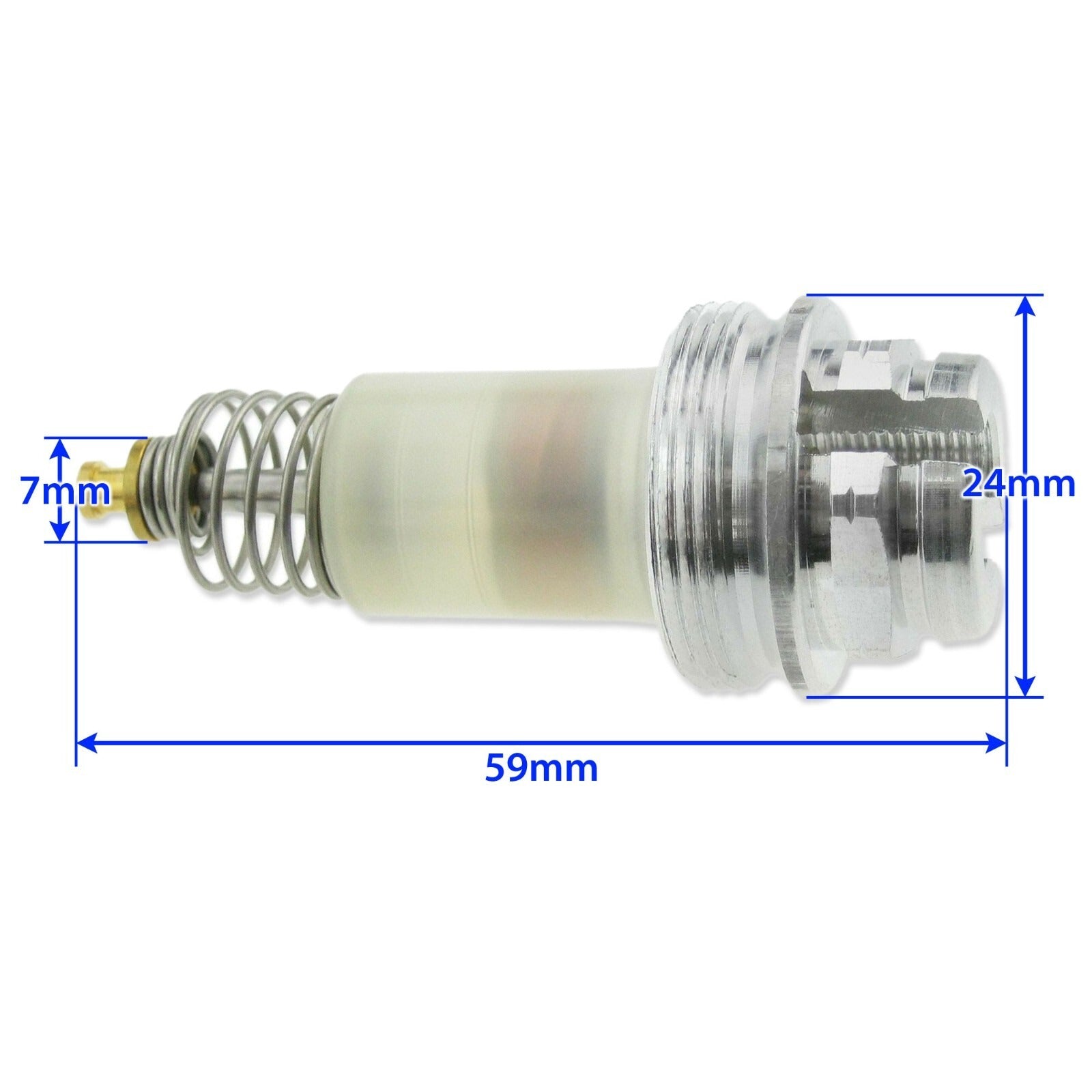

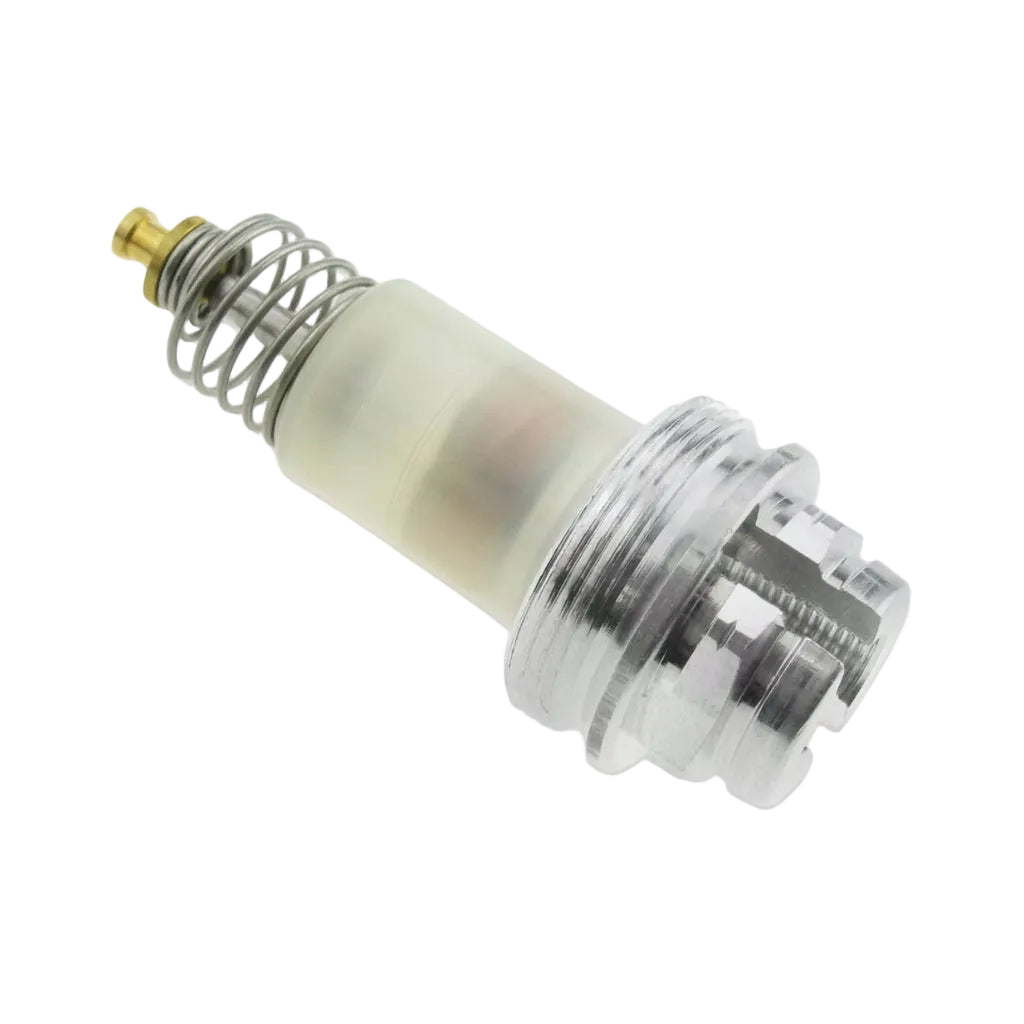

This is a Robertshaw thermocouple gas valve magnet (part RBS83397) - the flame-failure power unit for Robertshaw Unitrol gas valves. It is designed for a standard thermocouple flame-failure circuit, where the thermocouple generates a small voltage (around 30 millivolts) to hold the magnet energised while the pilot is lit. If the flame fails, the magnet releases and shuts off the gas supply.
This is the thermocouple version and is not interchangeable with the millivolt version - fitting the wrong type will stop the valve holding open.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Robertshaw |
| Type | Thermocouple gas valve magnet (flame-failure power unit) |
| Manufacturer Part Number (MPN) | RBS83397 |
| System | Thermocouple operated |
| Fits | Robertshaw Unitrol gas valves |
| Function | Holds the gas valve open while the pilot is lit; releases to shut off gas on flame failure |
| Condition | New |
Fitment
Fits Robertshaw Unitrol gas valves running a thermocouple flame-failure system. This part is not for use on millivolt (thermopile) valves - use RBS83399 for those. If in doubt, contact us with your valve make, model and existing part number and we will confirm compatibility before you order.
Gas Safety
Signs You Need To Replace This Part
- The pilot or burner lights while the control knob is held in, but drops out when released
- The valve will not hold open even with a known-good thermocouple
- Intermittent flame-failure shut-off during normal operation
What Is Included
- 1 x Robertshaw thermocouple gas valve magnet (RBS83397)
Thermocouple, thermopile and gas valve are not included.
Frequently Asked Questions
Will this magnet fit my Robertshaw Unitrol gas valve?
It fits Robertshaw Unitrol gas valves that use a thermocouple flame-failure system. Confirm your valve is the thermocouple type before ordering, as the thermocouple and the other version are not interchangeable.
What is the difference between the thermocouple and millivolt magnet?
The thermocouple magnet (RBS83397) is for standard thermocouple systems, and the millivolt magnet (RBS83399) is for millivolt / thermopile systems, which run at a higher voltage. They have different coils and must not be swapped for one another.
What does the gas valve magnet do?
It is the electromagnet inside the valve. Held energised by a standard thermocouple flame-failure circuit, where the thermocouple generates a small voltage (around 30 millivolts) to hold the magnet energised while the pilot is lit. If the flame goes out, the power falls away, the magnet releases and the gas is shut off - the flame-failure safety function.
How do I know mine has failed?
A common sign is a pilot or burner that lights while you hold the control knob in, but goes out as soon as you release it, once the thermocouple / thermopile and its connections have been checked.
Who should fit this part?
A Gas Safe registered engineer. It is a gas safety component and must be installed and tested by a qualified engineer.
