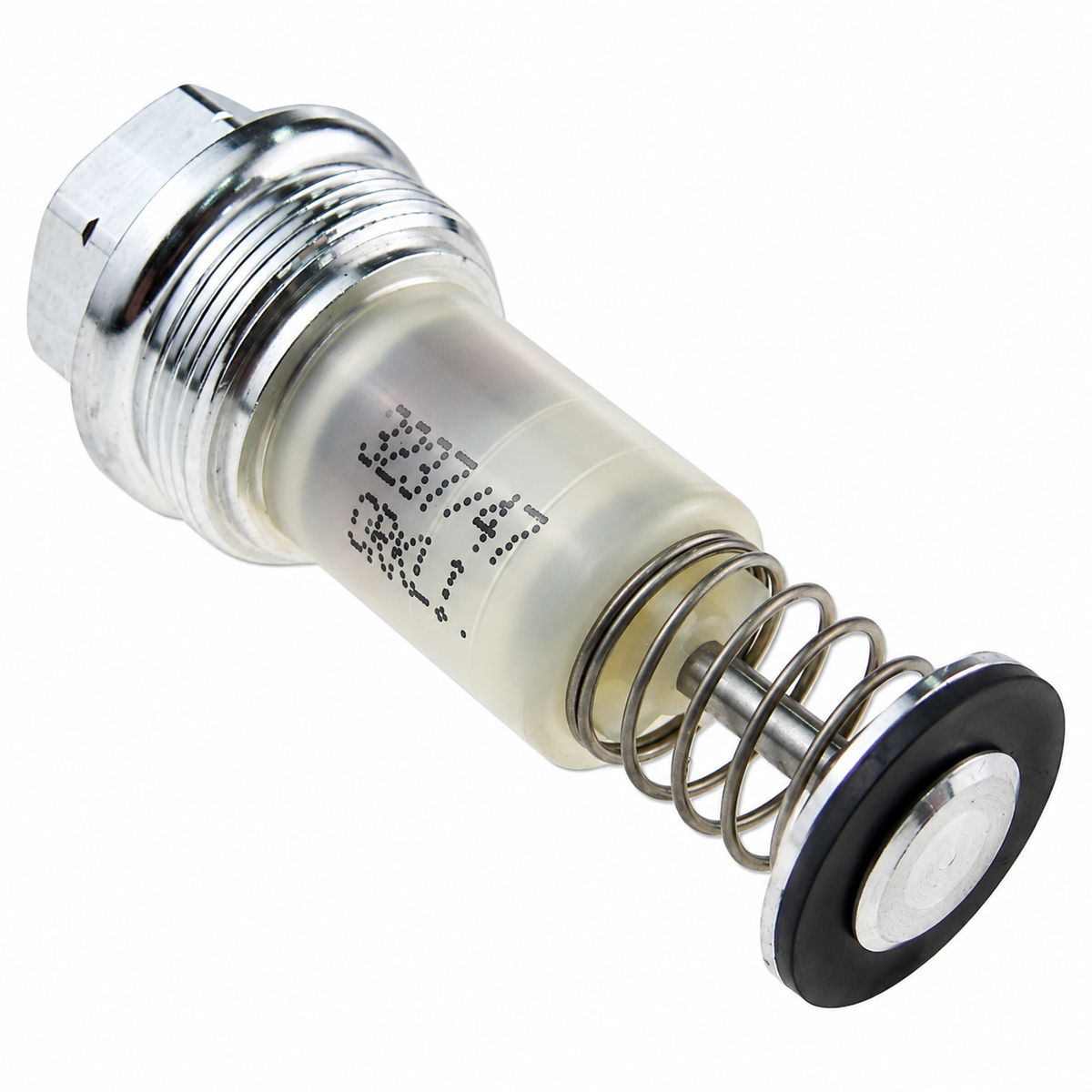

PEL 0958 Magnet Unit 59mm for PEL 23S Gas Valve M10x1 Thermocouple - Orkli 5805/46 Baron 6A014200
Couldn't load pickup availability
Threaded-head thermo-electric magnet unit for PEL 23S gas valves, PEL part 0958, marked Orkli 5805/46. 59 mm long, 24 mm hex head, 18 mm seat, M10 x 1 thermocouple connection.
Specifications

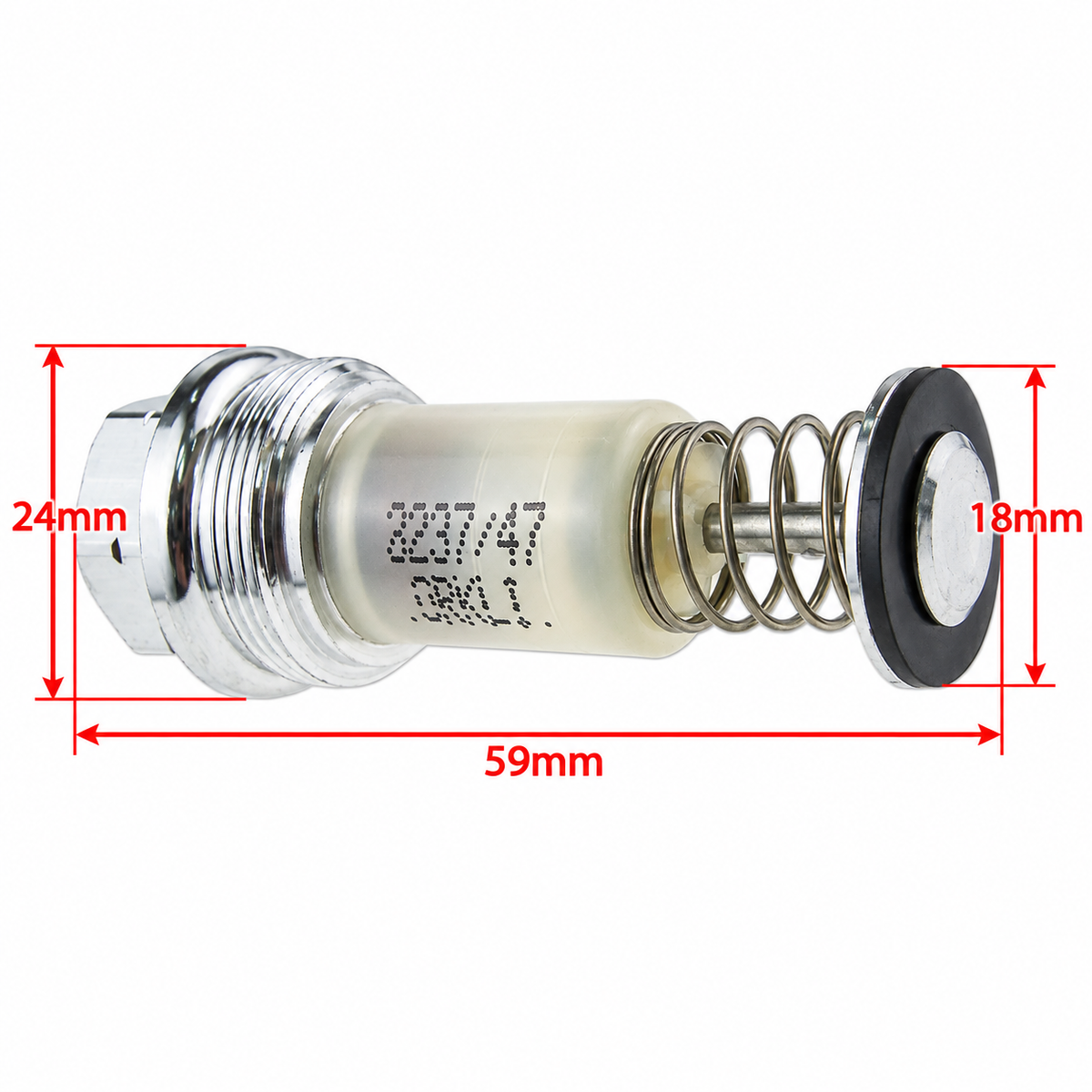

| Total length | 59 mm |
| Junction head diameter | 24 (hex) mm |
| Valve seat gasket diameter | 18 mm |
| Thermocouple connection | M10 x 1 thread |
Suitable for
PEL 23S gas valves on commercial ranges, fry tops, bain maries, bratt pans, boiling pans and fryers from Baron, Metos, Olis, Capic, Charvet, Mareno, Rosinox and Whirlpool.
Replaces part numbers
- PEL 0958
- Orkli 5805/46
- PTVS-1055
- Baron / Metos / Olis 6A014200
- Baron / Metos / Olis BN6A014200
- Capic G402065
- Charvet 00394A
- Mareno 24030599
- Rosinox 244761276
- Whirlpool 156.596
Please note: M10 x 1 thermocouple thread. An M9 x 1 version of this magnet is listed separately - check your thermocouple thread.
How it works
The thermocouple's millivolt output energises the magnet coil and holds the gas path open. If the flame is lost the coil de-energises and the spring closes the valve within seconds. Match the length, head diameter, seat diameter and thermocouple connection to your original before ordering. Fit by a Gas Safe registered engineer and leak-test after installation.
