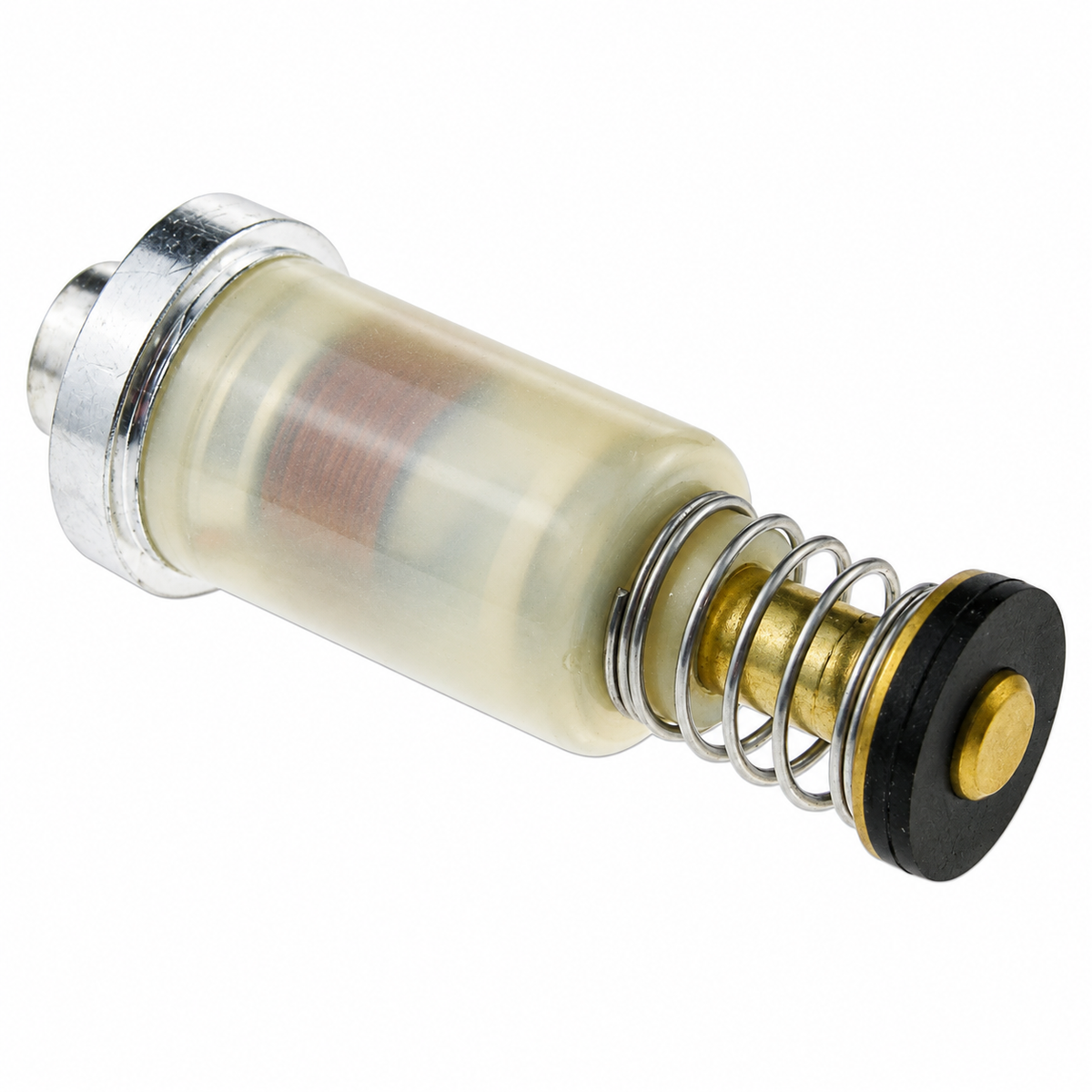

Magnet Unit 44mm 14mm Large Head for PEL 20 21 Gas Valve Thermocouple FFD - PTVS-1054
Couldn't load pickup availability

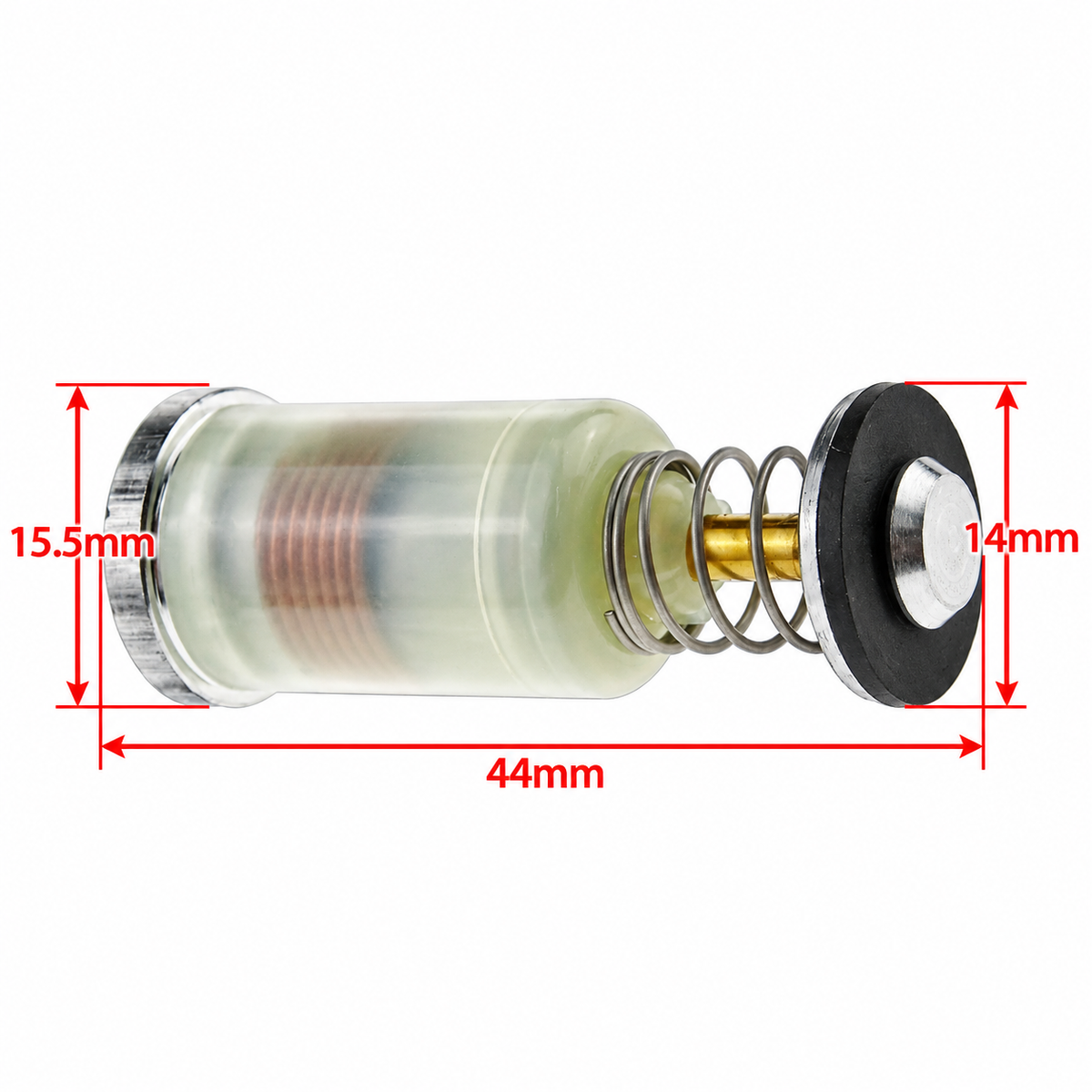

Large-head version of the PEL 20/21 thermo-electric magnet unit with a 14 mm valve seat. 44 mm long, 15.5 mm head. Fits PEL valves with the larger 14 mm seat - check your seat diameter before ordering.
Specifications
| Total length | 44 mm |
| Junction head diameter | 15.5 mm |
| Valve seat gasket diameter | 14 mm |
| Thermocouple connection | Push contact |
Suitable for
PEL 20 / 21 family valves with a 14 mm seat, used on fry tops, bain maries, bratt pans and ranges from Electrolux, Zanussi, Alpeninox, Ambach, Angelo Po, Mareno, Silko and others.
Replaces part numbers
- PEL 0982 (large head)
- Alpeninox / Electrolux / Zanussi 056.595 (14 mm seat valves)
Please note: Two seat sizes exist for this magnet family: 11.5 mm and 14 mm. This listing is the 14 mm seat. The 11.5 mm version is listed separately.
How it works
The thermocouple's millivolt output energises the magnet coil and holds the gas path open. If the flame is lost the coil de-energises and the spring closes the valve within seconds. Match the length, head diameter, seat diameter and thermocouple connection to your original before ordering. Fit by a Gas Safe registered engineer and leak-test after installation.
