Magnet Unit 59mm for PEL 23S Gas Valve M9x1 Thermocouple - Electrolux Zanussi 056596 Bonnet 71027E
Couldn't load pickup availability

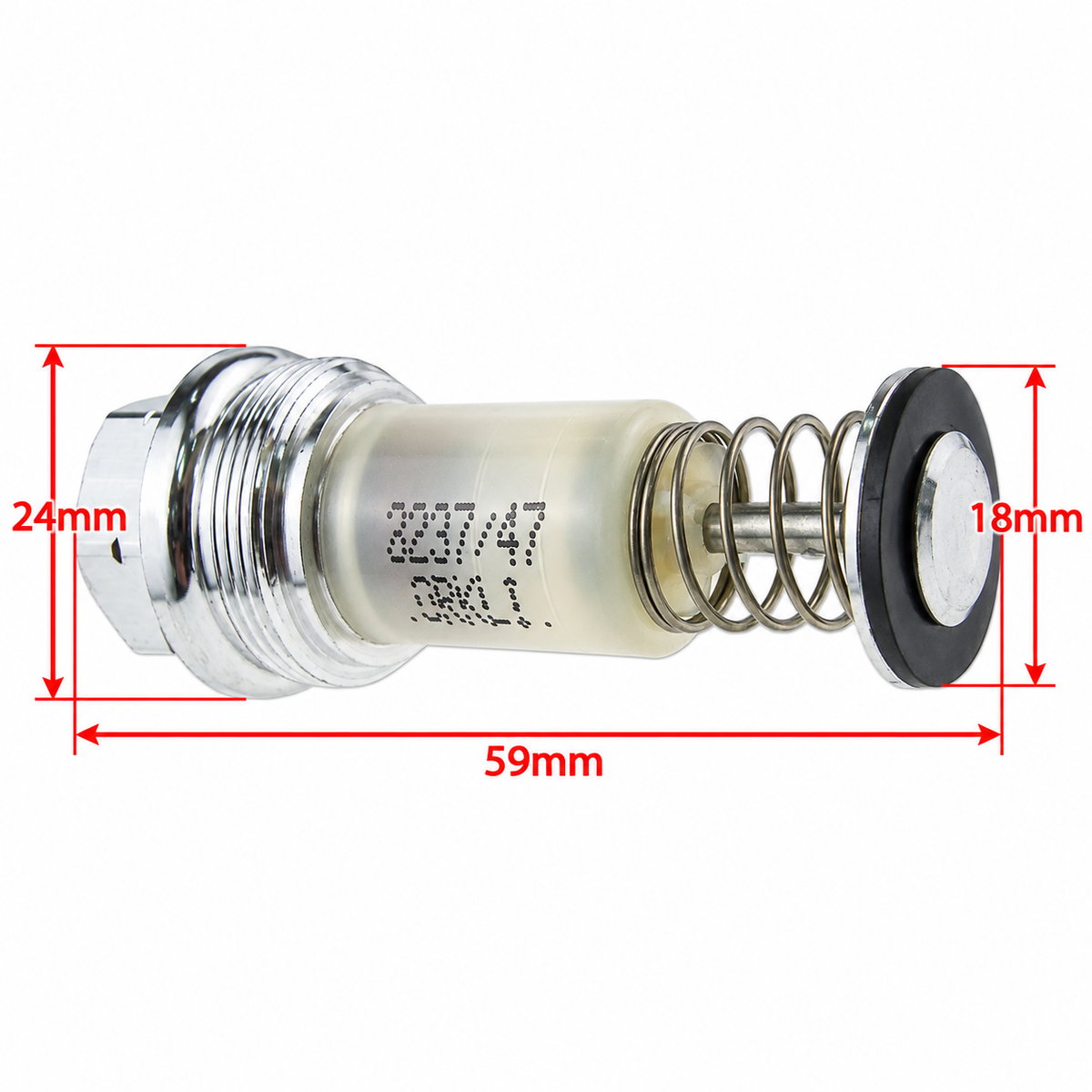

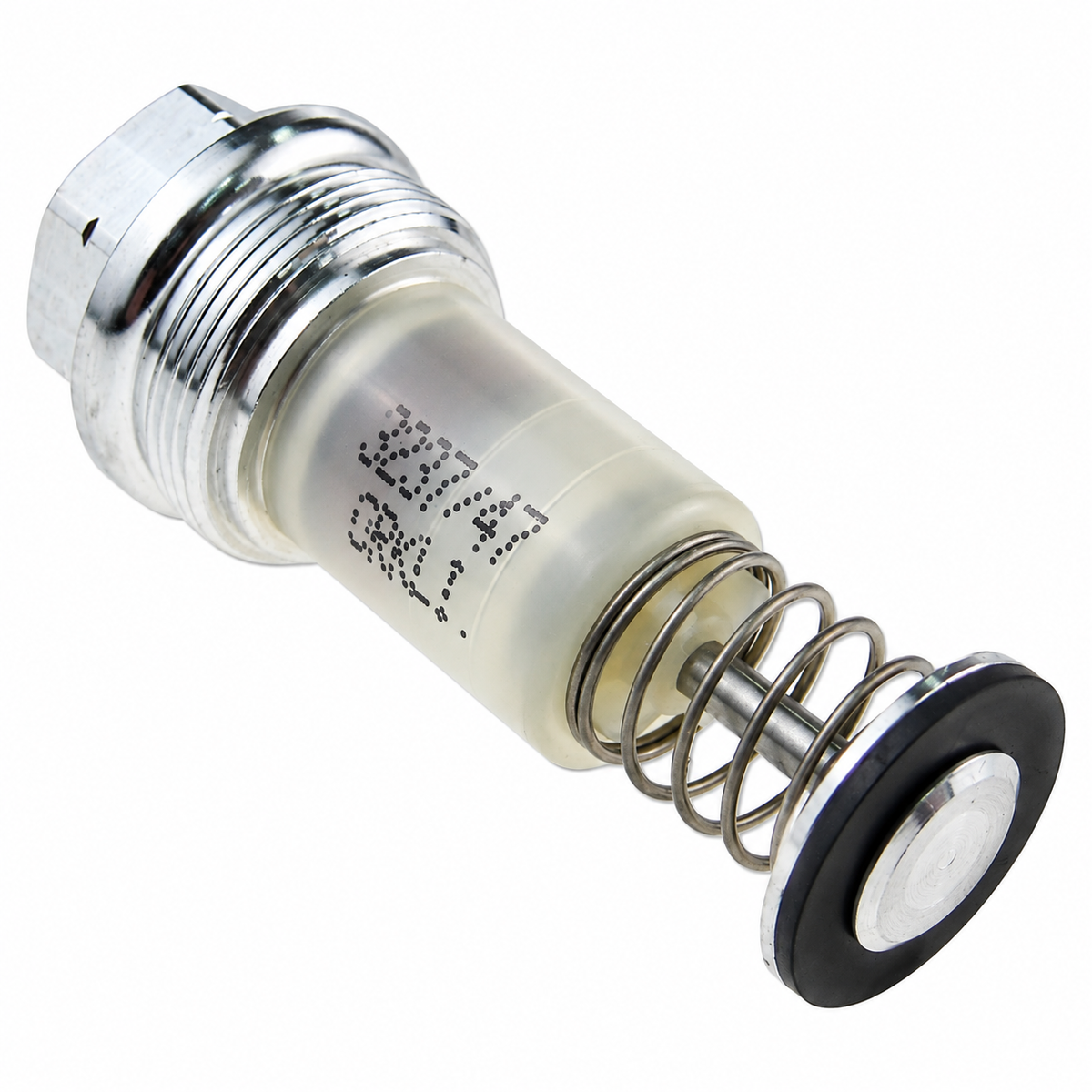

Threaded-head thermo-electric magnet unit for PEL 23S and PEL 23 S/O gas valves with an M9 x 1 thermocouple connection. 59 mm long, 24 mm hex head, M22 body thread, 18 mm seat. Replaces Electrolux, Zanussi and Alpeninox 056596 and Bonnet 71027E.
Specifications
| Total length | 59 mm |
| Junction head diameter | 24 (hex) mm |
| Valve seat gasket diameter | 18 mm |
| Thermocouple connection | M9 x 1 thread |
Suitable for
PEL 23S / 23 S/O valves on Electrolux, Zanussi and Alpeninox commercial ranges, fry tops, bain maries and bratt pans; Bonnet and Thirode ranges.
Replaces part numbers
- Alpeninox / Electrolux / Zanussi 056596
- Bonnet / Thirode 71027E
Please note: M9 x 1 thermocouple thread. The M10 x 1 version (PEL 0958) is listed separately - check your thermocouple thread.
How it works
The thermocouple's millivolt output energises the magnet coil and holds the gas path open. If the flame is lost the coil de-energises and the spring closes the valve within seconds. Match the length, head diameter, seat diameter and thermocouple connection to your original before ordering. Fit by a Gas Safe registered engineer and leak-test after installation.
