MA12 Magnet Unit 37mm for Mertik Maxitrol GV30 GV32 Gas Valve Thermostat FFD FSD
Couldn't load pickup availability

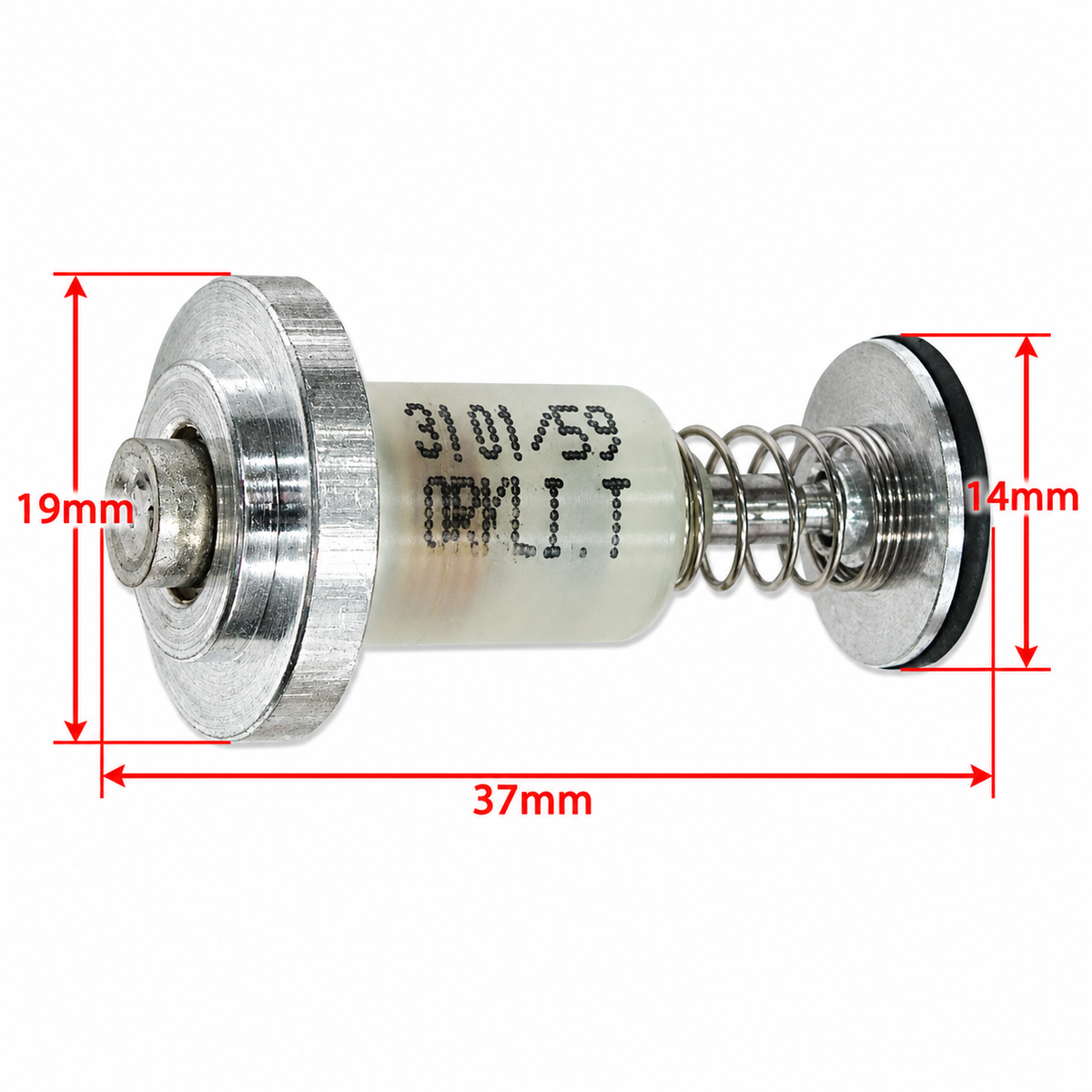

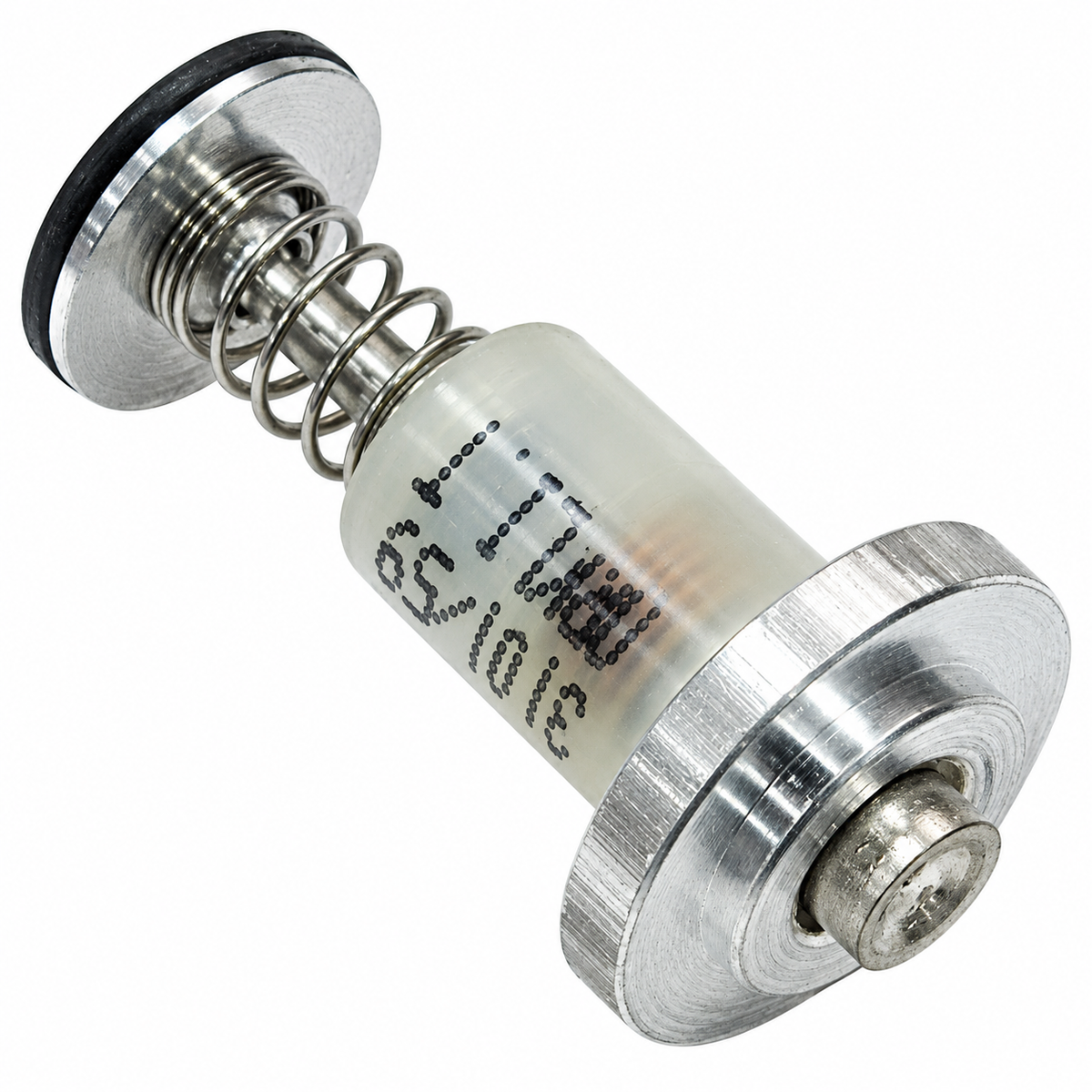

Thermo-electric magnet unit (trade code MA12) for Mertik Maxitrol GV-series gas combination valves and thermostats. 37 mm long, 19 mm head, 14 mm seat. Used on commercial ovens, griddles, bain maries, fryers and water heaters with Mertik controls.
Specifications
| Total length | 37 mm |
| Junction head diameter | 19 mm |
| Valve seat gasket diameter | 14 mm |
| Thermocouple connection | Push contact |
Suitable for
Mertik Maxitrol GV30 / GV31 / GV33 thermostatic and GV32 / GV36 manual gas valves - verify against your valve. Appliances: ovens, griddle plates, bain maries, deep fryers, storage water heaters, gas fires.
Replaces part numbers
- CPUK MA12 (37 mm)
- Mertik Maxitrol GV-series magnet unit
Please note: A shorter 32 mm MA12 variant also exists. This listing is the 37 mm version - measure your original.
How it works
The thermocouple's millivolt output energises the magnet coil and holds the gas path open. If the flame is lost the coil de-energises and the spring closes the valve within seconds. Match the length, head diameter, seat diameter and thermocouple connection to your original before ordering. Fit by a Gas Safe registered engineer and leak-test after installation.
No technical specifications available for this product.
