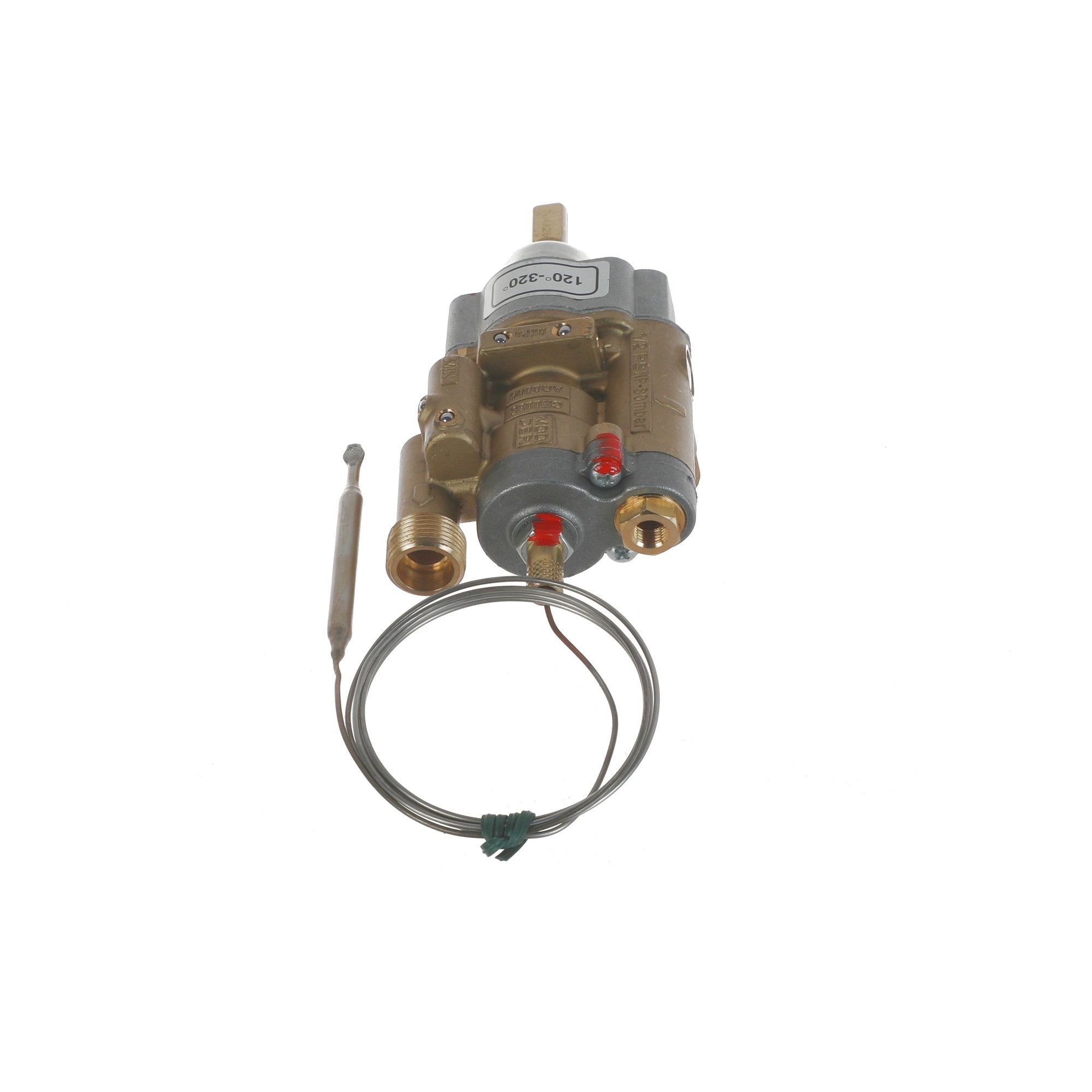

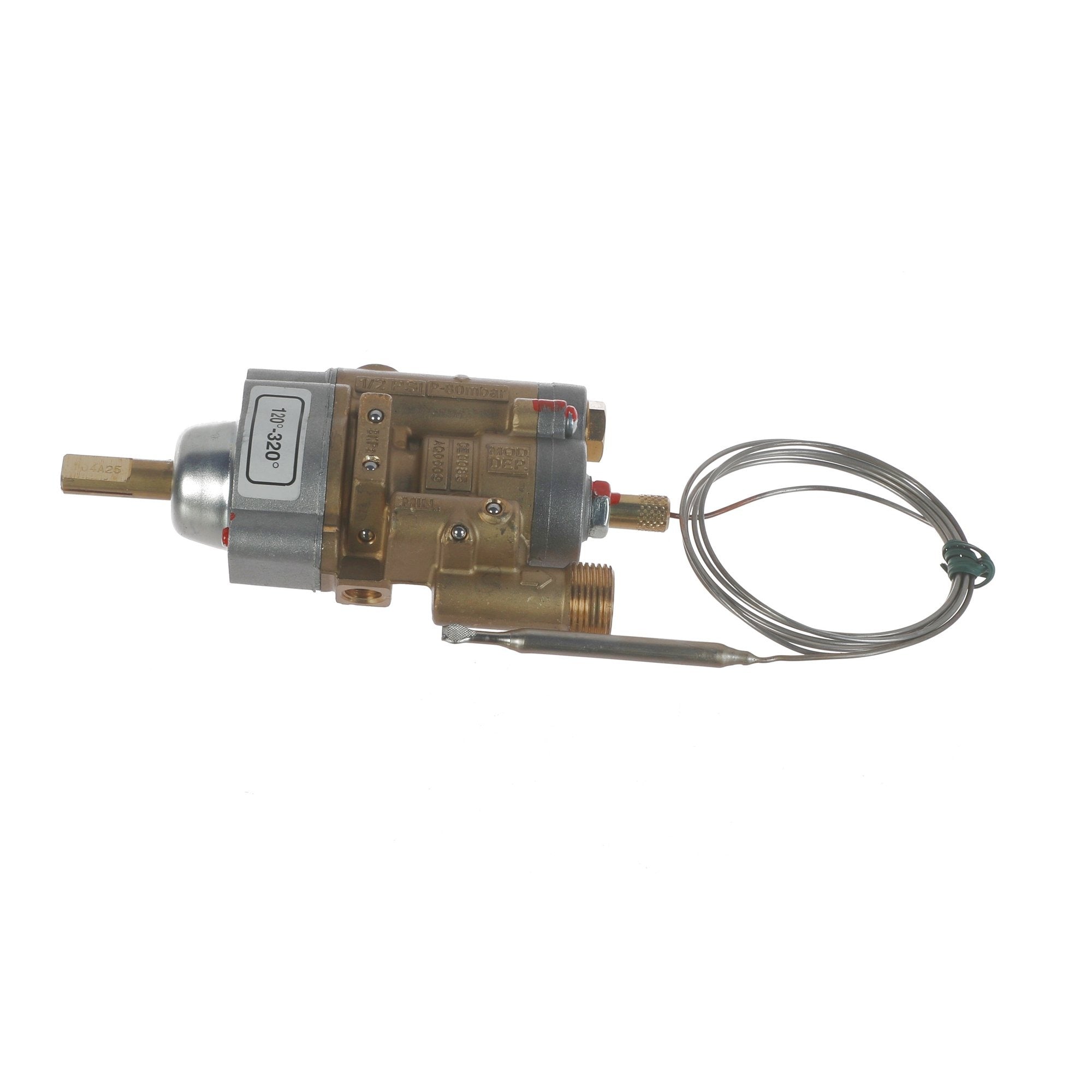

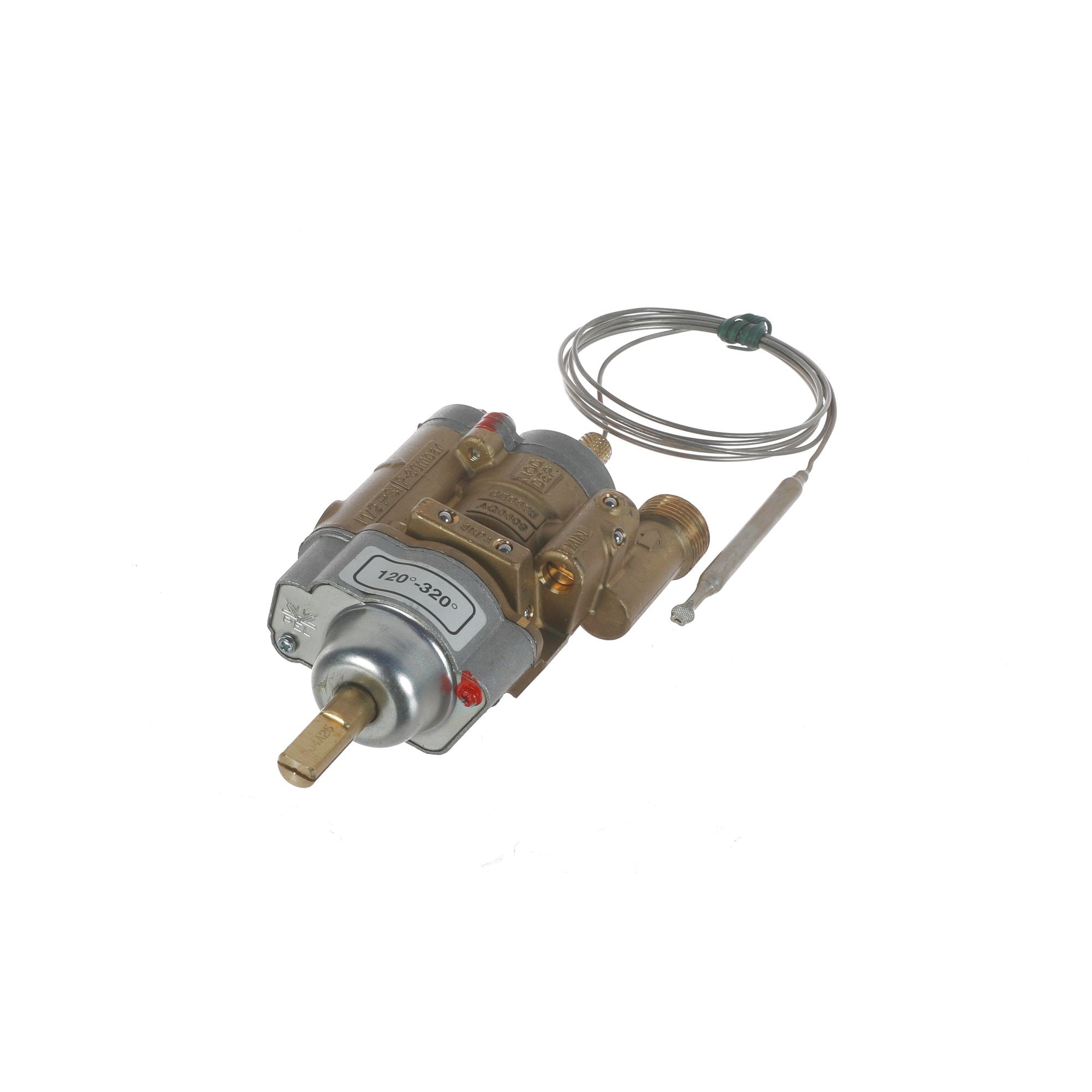

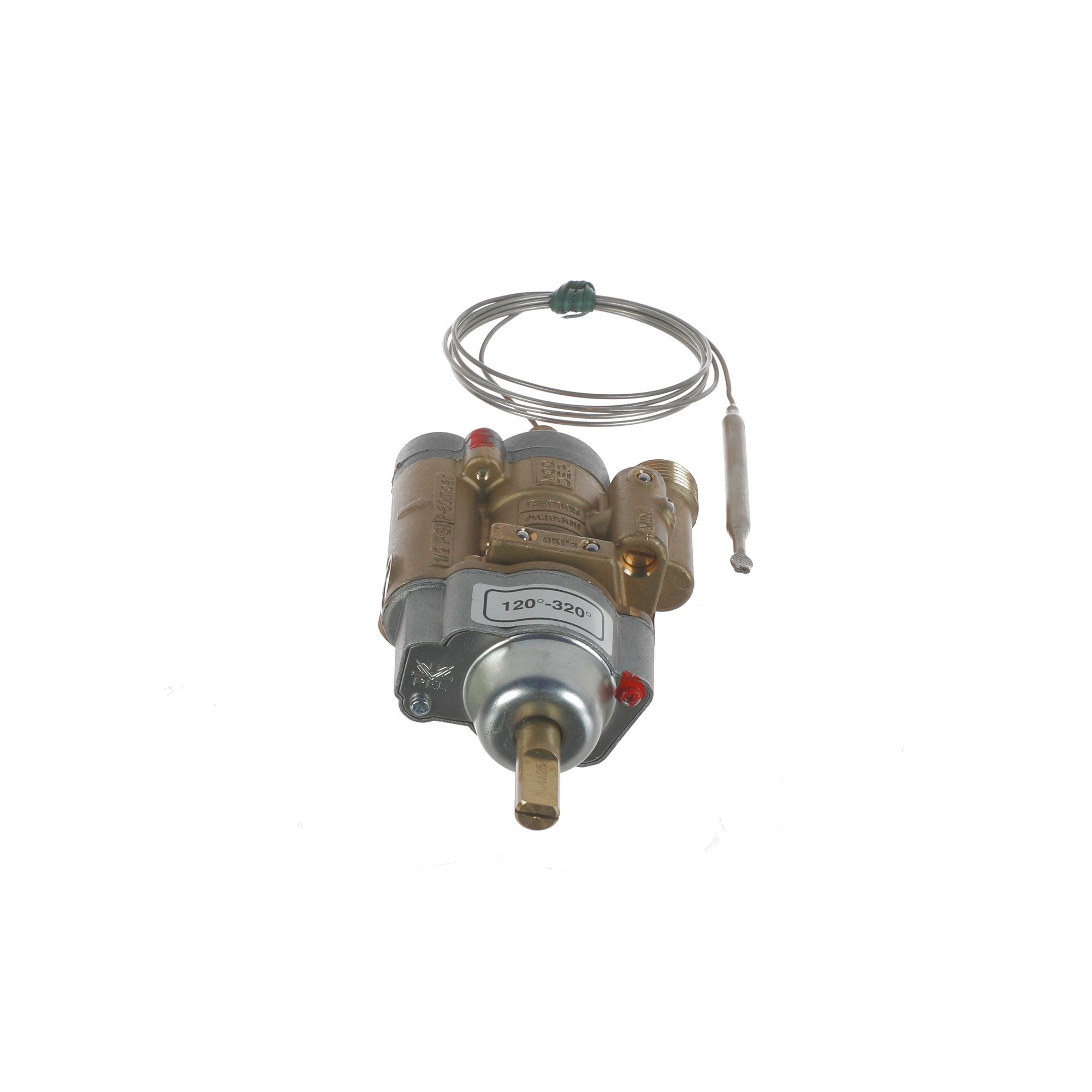

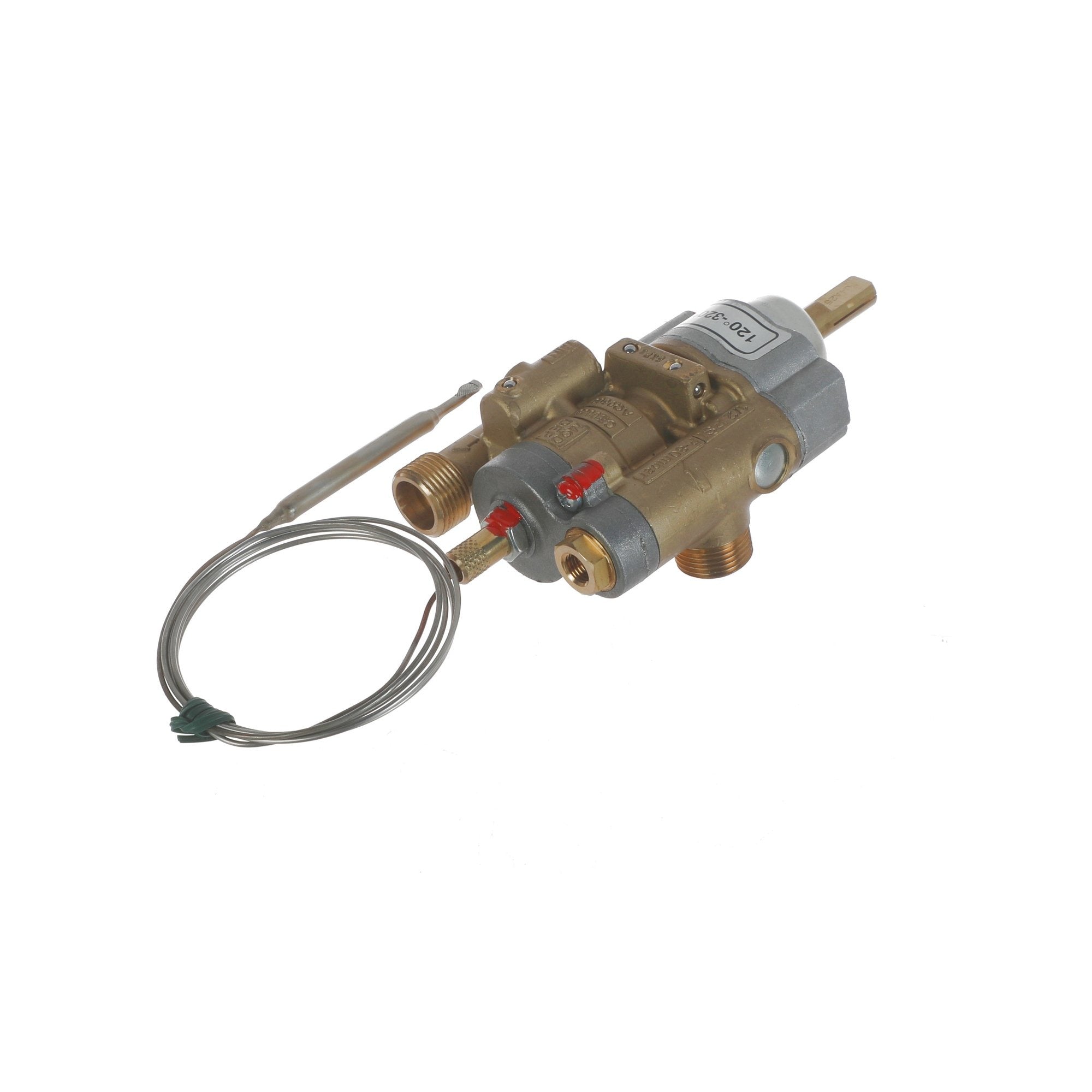

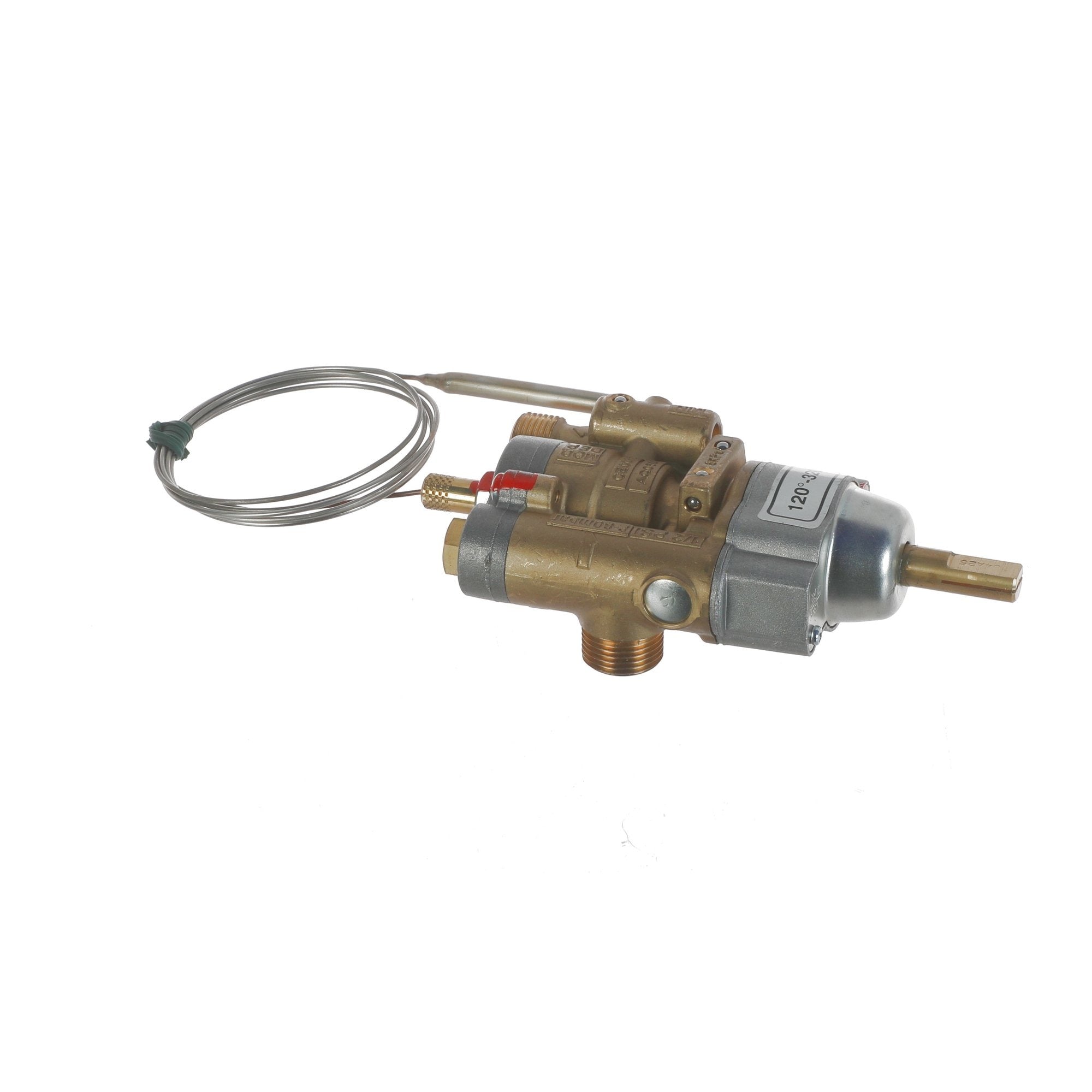

The PEL 24ST is a gas control thermostat (100-300C) with an integral gas cock, M9x1 thermocouple and M10x1 pilot. Capillary probe control for griddles and ovens.
Common Specifications
| Specification | Detail |
|---|---|
| Type | Gas thermostat with integral gas cock |
| Temperature range | 100-300C (also 120-320C by application) |
| Thermocouple connection | M9x1 |
| Pilot connection | M10x1 |
| Gas inlet | M20x1.5 (tube ø12mm) |
| Gas outlet | M20x1.5 (tube ø12/10mm) |
| Shaft diameter | 10 x 8mm |
| Shaft length | 25/17mm, flat above |
| Capillary length | 1200mm |
| Bulb / probe | ø6 x 100mm |
| Body | Forged brass |
Specification
This listing is for the specific part number and configuration below.
| Part No. | Temp range | Thermocouple | Inlet | Outlet | Shaft |
|---|---|---|---|---|---|
| PTVS-1049 | 100-300C | M9x1 | M20x1.5 (ø12mm) | M20x1.5 (ø12/10mm) | 10x8mm / 25-17mm |
Compatible Brands
Compatible with equipment from: Alpeninox, Ambach, Baron, Colged, Dexion, Electrolux, Elettrobar, Fiamma RST, Gico, Giga, MBM, Metos, Offcar, Olis, Rosinox, Silko, Soget, Solymac, Whirlpool, Zanussi.
Cross-reference compatibility only. All brand and model names are the property of their respective owners and are used for identification purposes only. Always verify the valve specification against your appliance before ordering.
Gas Type & Safety
Gas type is set by the bypass nozzle bore (BN ø); natural gas and LPG bypass nozzles are available separately. Pilot unions for 4mm and 6mm pilot pipe are also sold separately. Installation must be carried out by a Gas Safe registered engineer.
