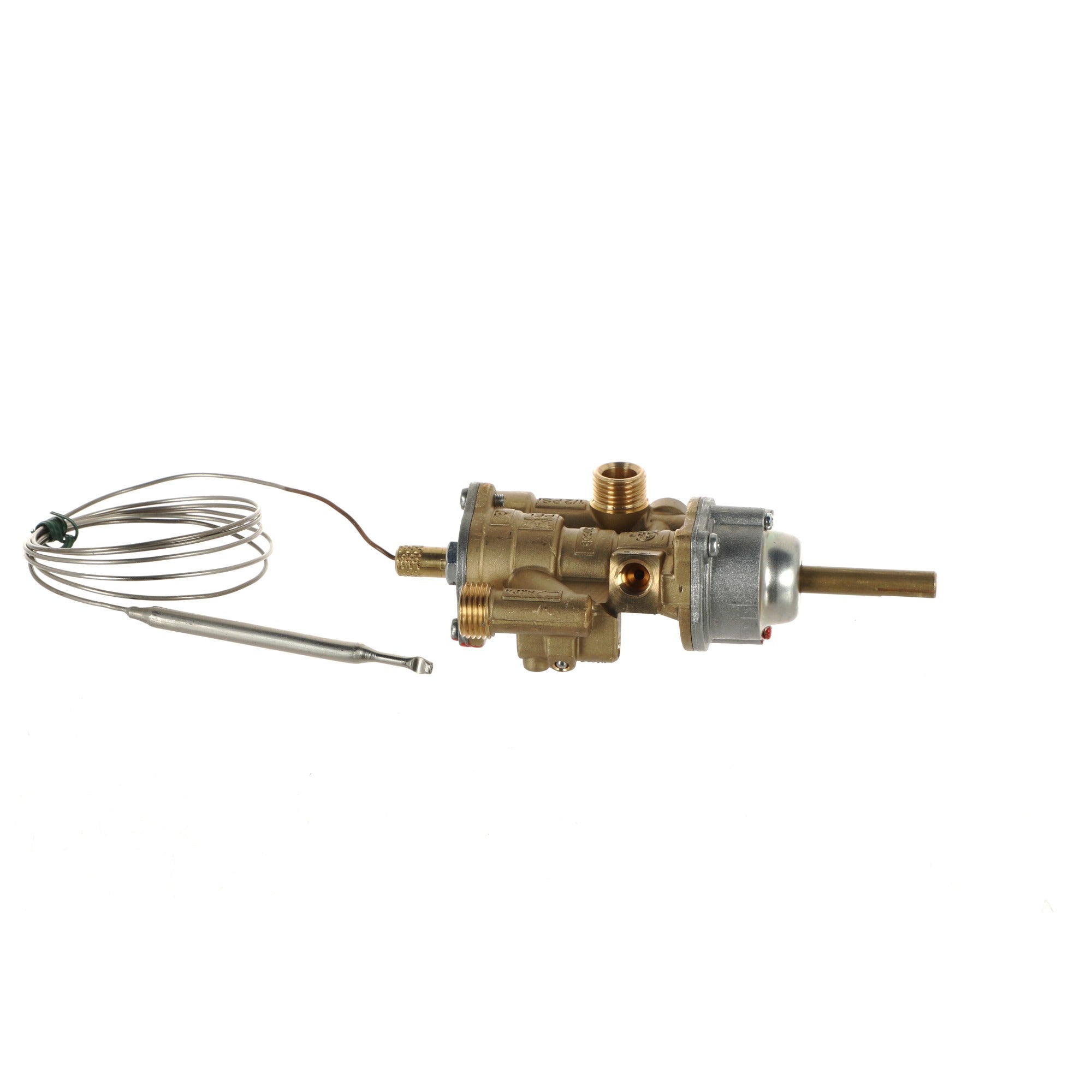

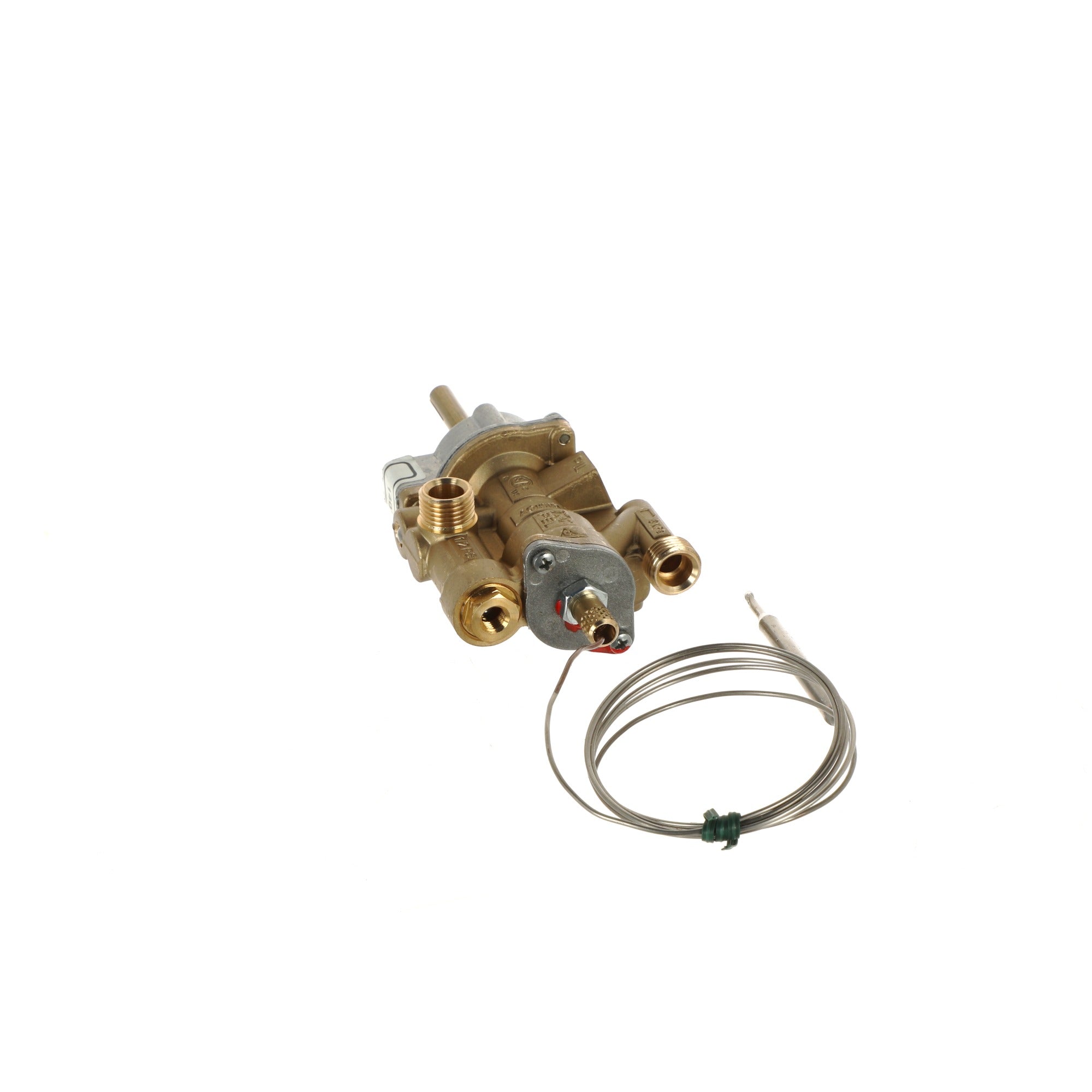

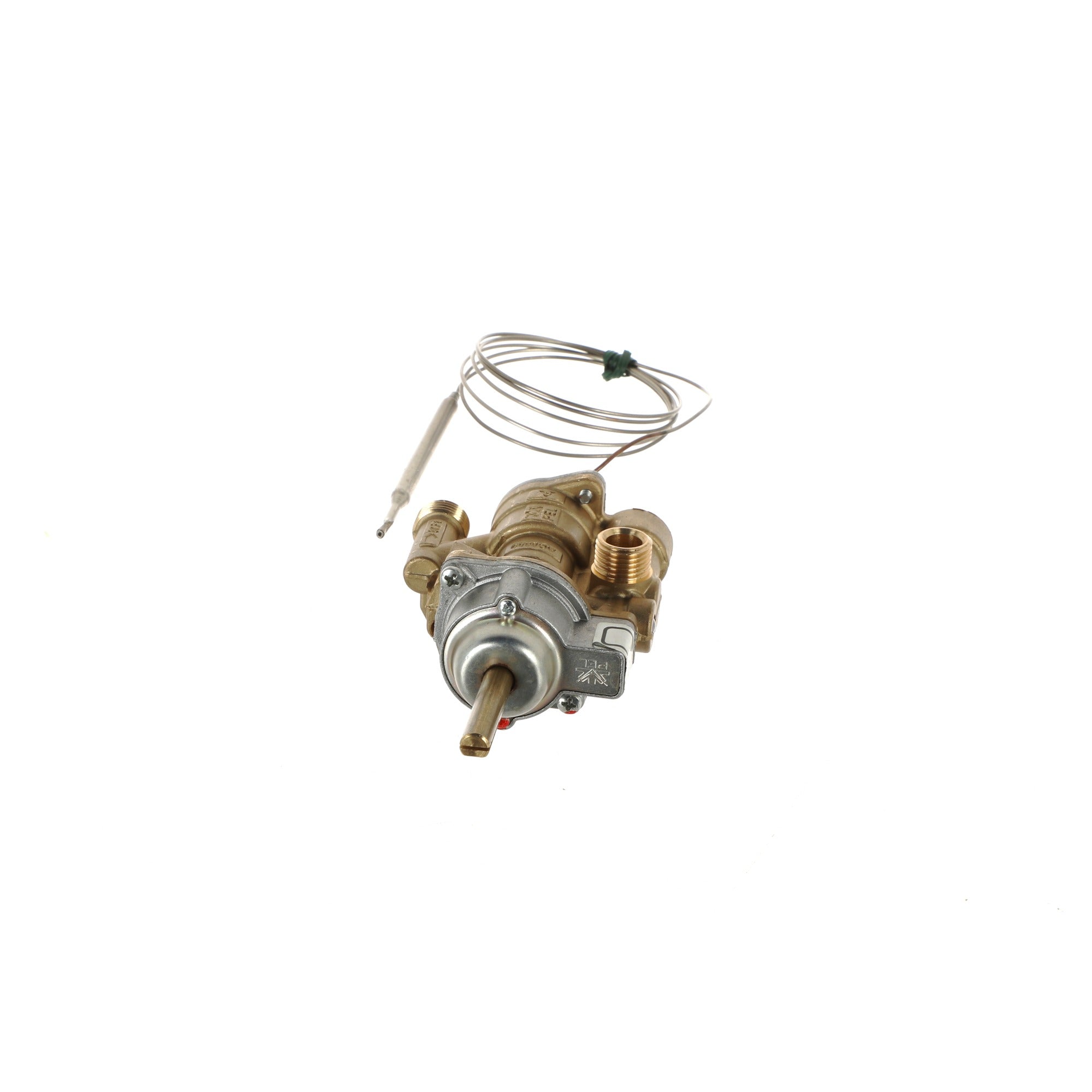

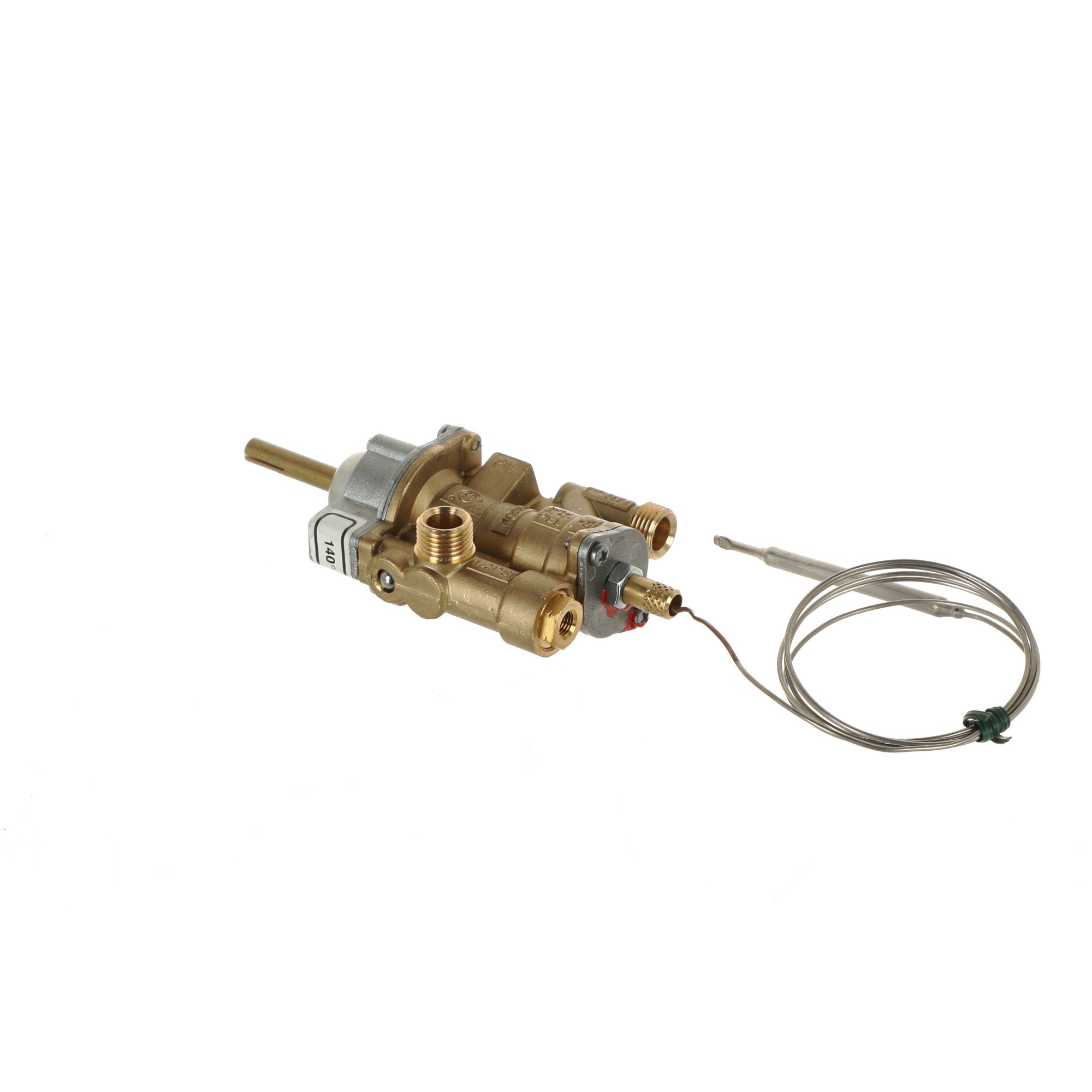

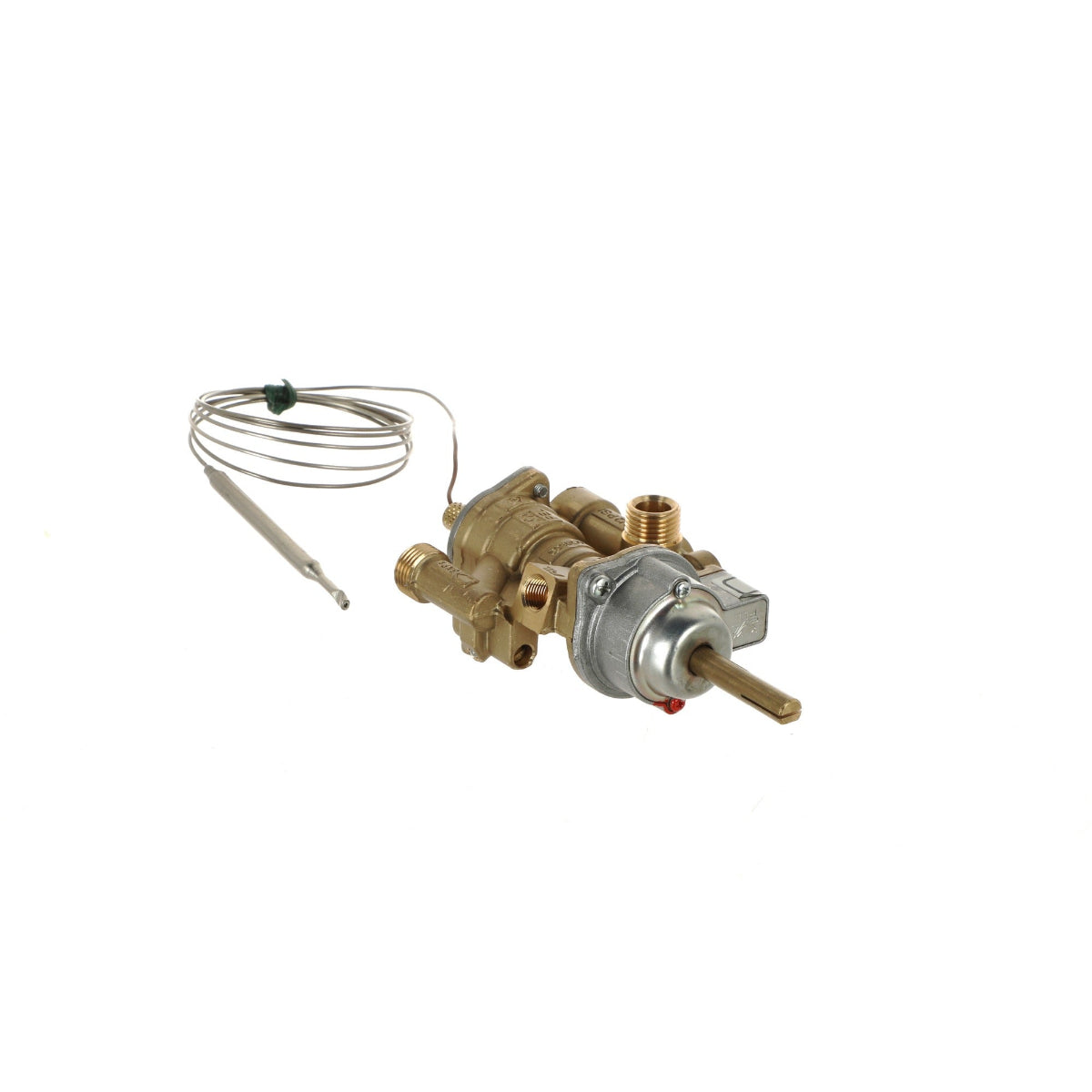

PEL 25ST Thermostatic Gas Valve - PTVS-1051 140-300C, M8x1 TC, 38/15mm above
PEL 25ST Thermostatic Gas Valve - PTVS-1051 140-300C, M8x1 TC, 38/15mm above
The PEL 25ST is a capillary-probe gas control thermostat with M10x1 pilot, stocked in 100-300C and 140-300C ranges, used across a wide range of commercial fryers, ovens and boiling pans.
Common Specifications
| Specification | Detail |
|---|---|
| Type | Gas thermostat with capillary probe |
| Pilot connection | M10x1 |
| Gas inlet | M16x1.5 (tube ø10mm) |
| Gas outlet | M16x1.5 (tube ø10/8mm) |
| Shaft diameter | 8 x 6.5mm |
| Capillary length | 1200mm |
| Body | Forged brass |
Specification
This listing is for the specific part number and configuration below.
| Part No. | Temp range | Thermocouple | Shaft Ø | Shaft L | Flat |
|---|---|---|---|---|---|
| PTVS-1051 | 140-300C | M8x1 | 8x6.5mm | 38/15mm | above |
Compatible Brands
Compatible with equipment from: Ascaso, Ata, Baron, Bertos, Bonnet, Casta, Colged, Dexion, Diamond, Elettrobar, Gev, Gico, Giga, Hendi, Hobart, Kromet, LF, Lotus, MBM, Modular, Morice, Offcar, Olis, Oztiryakiler, RM Gastro, Tecnoinox, Thirode, Zanussi.
Cross-reference compatibility only. All brand and model names are the property of their respective owners and are used for identification purposes only. Always verify the valve specification against your appliance before ordering.
Gas Type & Safety
Gas type is set by the bypass nozzle bore (BN ø); natural gas and LPG bypass nozzles are available separately. Pilot unions for 4mm and 6mm pilot pipe are also sold separately. Installation must be carried out by a Gas Safe registered engineer.
No technical specifications available for this product.
